Max Trac MaxPro 4.5 in. Front / 3 in. Rear Lift Kit w/ Shocks (09-18 2WD RAM 1500 w/o Air Ride)

Market Price $1,078.19 You Save 13% ($140.63)
Our Price


FREE Shipping

  • Item R102338

Will this fit your Truck?

Change Vehicle Help?
Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • Suspension Lift Kit
    • Lift: 4.5" Front, 3" Rear
    • Gives Vehicle an Aggressive Stance
    • Improves Ground Clearance
    • Max Trac Shocks Included
    • 3" Rear Coils
    • E-Coated Ductile Iron 4.5" Lift Spindles
    • Clears up to 35" Tall Tires
    • Bolt-On Installation
    • Limited Lifetime Warranty
    • Fits 2009-2018 2WD RAM 1500 without Air Ride
    Aggressive Look. Take your 2WD RAM to a new level of aggression with a Max Trac 4.5 in. Front / 3 in. Rear Lift Kit that includes rear Max Track shocks. The extra 4.5 inches in the front and 3-inch boost at the back also provides enough clearance on rocky or uneven terrain, all while maintaining a comfortable ride back on the pavement with its durable, strong parts.

    Shocks Included. Max Trac provides you with their nitrogen-charged Max Trac shocks which feature a twin-tube design for comfortable ride quality and handling.

    Rear Springs. This Max Trac 4.5-inch Lift Kit includes a pair of 3-inch rear coil springs. They are built to handle tough conditions, stabilize your RAM, whether it's on the trail, pavement or another type of terrain.

    Cast from Iron. Max Trac provides their signature 4.5-inch lift spindles in this Lift Kit. The spindles are cast from ductile iron for high strength and durability. Longer DOT-compliant brake lines are included.

    Bolts On. Max Trac designs its Front and Rear Lift Kit to bolt into place. It fits 17 inch or larger wheels with a backspace of 5.5 inches or less. Alternatively, the factory wheels and tires can bolt back on.

    Limited Lifetime Warranty. Max Trac includes a limited warranty on workmanship and materials for as long as you own the vehicle on which the Lift Kit was first installed. Please see the manufacturer's warranty page for full details on the terms and conditions.

    Application. Max Trac's 4.5 in. Front / 3 in. Rear Lift Kit w/ Shocks fits 2009 to 2018 2WD RAM 1500 without Air Ride. Max Trac's Carrier Bearing Spacer Kit (part# 612400) is needed for models with a two-piece driveshaft.

    Fitment: 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 Details

    CA Residents: WARNING: Cancer and Reproductive Harm -

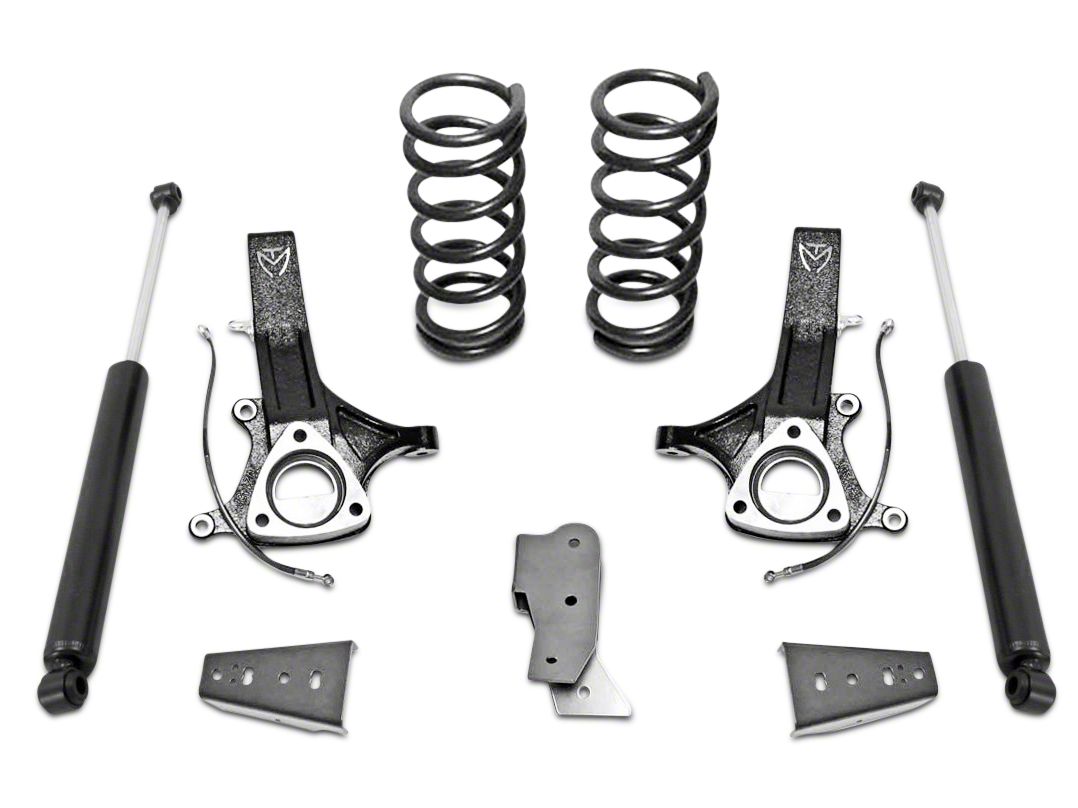

    What's in the Box
    • (2) 4.5” Lift Spindles
    • (2) 3” Rear Coil Springs
    • (2) Rear Shocks
    • Track/Sway Bar Brackets
    Installation Info
    Tech Specs
    Will it fit my Ram 1500?
    • 3.0L V6 EcoDiesel - 14, 15, 16, 17, 18
    • 3.6L V6 - 13, 14, 15, 16, 17, 18
    • 3.7L V6 - 09, 10, 11, 12
    • 4.7L V8 - 09, 10, 11, 12, 13
    • 5.7L V8 - 09, 10, 11, 12, 13, 14, 15, 16, 17, 18

    Max Trac's Carrier Bearing Spacer Kit, part# 612400, is required for models with a two-piece driveshaft.

      Customer Photos

        Questions & Answers (5)

        5 Top Rated Questions

        Will this kit fit the 2019 1500 Classic?

        • This will work for the 2019 Ram Classic.

        Helpful (0)

        Does this lift even out the Ram or will the rear still be slightly higher? If there's still a rake, can the rear lift be reduced?

        Will this work on a 2500 also?

        • At this point in time we do not have confirmed fitment for any parts with the 2500 series.

        Helpful (0)

        If i were to buy this, and i currently have a leveling kit already installed on my truck, will that need to come off before this gets installed? thanks for your time.

        • We would recommend completely removing your leveling kit when installing the Max Trac MaxPro Lift Kit

        Helpful (0)

        Do you need aftermarket control arms with this lift kit? Or does it maintain a good control arm angle with stock control arms? Thank you

        • The Max Trac MaxPro lift kit will not require control arms, however it will be beneficial to run aftermarket control arms.

        Helpful (0)
        Post Your Question

          Customer Reviews (2) Write a Review

          Overall Rating 5

          out of 5 stars

          Installation Time:Afternoon

          • Appearance 5 5
          • Bang For Your Buck 5 5
          • Onroad Ride Quality 4.5 4.5

          • 5/5

            Installation Time: Afternoon

            April 09, 2019

            Lifted n gifted

            Put this on my 2017 3.6 2wd, nice stance not too much but just aggressive enough. Got heads turnin everywhere I go. Paired with 17” semigloss black rocker rims on 33 nitto g2s perfect combo.


            Year: 2017 Submodel: Express Engine: 3.6L V6

            Helpful (1)

          • 5/5

            Installation Time: Full Day

            November 15, 2017

            this lift is amazing

            i just put thus lift on my sons truck and i have to say its pretty amazing no road walking and is definitly worth the extra cash


            Year: 2015 Engine: 3.6L V6

            Helpful (16)
