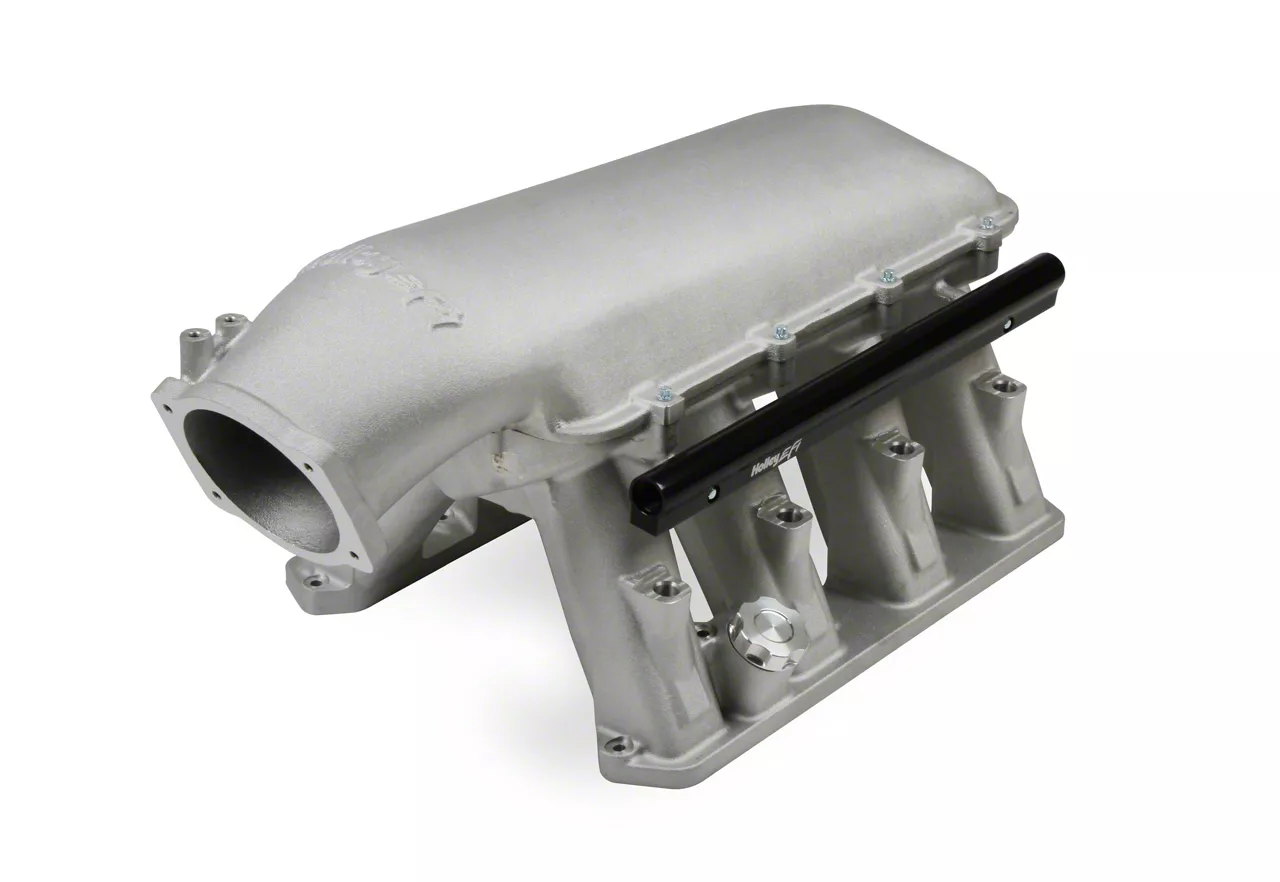

Holley EFI Gen III HEMI Hi-Ram EFI Intake Manifold with 95mm LS Throttle Body Mount (09-24 5.7L RAM 1500)Find parts that fit my vehicle

Item R148779
Product Image
Sale
On Sale

-10% $1,214.96 kit Was $1,349.95

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

      • Gen III HEMI EFI intake manifold designed for use with a 95 mm LS-style throttle body
      • As-cast natural satin finish
      • Compatible with 2009-up 5.7L, 2005-2010 6.1L, and 2011-up 6.4L Gen III HEMI engines with large intake ports (1.70" height x 1.88" width)
      • Works with Gen III HEMI injectors and Bosch EV-1 style injectors
      • Positive crankcase ventilation ports include adapter fittings
      • Manifold base sold separately for custom induction systems
      • O-ring seal to cylinder head with large retained o-rings for superior sealing
      • Runner length and tapered cross section engineered for a wide range of engine configurations
      • Cast aluminum construction for durability and heat resistance
      • Includes EFI fuel rails with -8 AN o-ring fittings and large passages for efficient fuel flow
      • Provision for OE-style manifold absolute pressure sensor (1 or 2 bar)
      • Cast-in pads for adding nitrous oxide nozzles (nitrous system not included)
      • Overall height: 11.59 inches
      • Billet low-profile oil fill cap included
      • Basic operating RPM range: 1500-7000 RPM
      • Deck height: 9.25 inches
      • Emission code: 3 (for non-emissions-controlled vehicles)
      • EFI flange style
      • Fuel rails included
      • Gasket and throttle body gasket included
      • Injector style provisions for EV-1 and Gen III HEMI
      • Manifold type: Hi-Ram single plane
      • Rear maximum height: 10.35 inches
      • Runner length: 6.65 inches
      • Throttle body bore diameter: 95 mm
      • Vacuum ports: two 3/8" NPT and one 1/4" NPT
      • Removable top/lid design
      • Manufacturer's limited 90-day warranty
      • Example fitment: 2009-2024 5.7L RAM 1500

      Description

      High-Performance Intake Manifold. The Holley EFI Gen III HEMI Hi-Ram EFI Intake Manifold with a 95 mm LS throttle body mount is engineered for naturally aspirated, forced induction, and nitrous applications in Gen III HEMI engines. It optimizes airflow and fuel delivery for engines ranging from 5.7 to 7.2+ liters, enhancing power output and overall engine performance.

      Construction and Appearance. This intake manifold features durable cast aluminum construction with a natural satin finish designed to resist heat and corrosion. It includes large retained o-rings for reliable sealing and EFI fuel rails with -8 AN o-ring fittings to ensure smooth fuel flow and minimize pressure pulsations.

      Installation. Installation requires moderate mechanical skills and no drilling, as the manifold is designed to fit directly on compatible Gen III HEMI engines. It includes provisions for vacuum ports and OEM sensors for straightforward integration without modification.

      Warranty. This product comes with a manufacturer's limited 90-day warranty covering defects in materials and workmanship.

      Application. Designed to fit 2009 through 2024 5.7L RAM 1500 engines with Gen III HEMI large intake ports, as well as 2005-2010 6.1L and 2011-up 6.4L Gen III HEMI engines. This manifold supports a wide range of engine configurations with large intake ports for high-performance applications.

      Holley EFI 300-650

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) a Day

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Intake Manifold with Throttle Body Mount

      Tech Specs

      4.3

      Reviews of Holley EFI Intake Products (4)

      Questions & Answers (1)

      Post Your Question

      Will It Fit My Ram 1500

      • 5.7L V8 - 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24
