Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit; -8AN; 300 LPH (Universal; Some Adaptation May Be Required)

Item SHG61264
Product Image
1 Reviews of Fuelab
Our Price

$1,154.00

Military, Medical & First Responders $57.70 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Features, Description, Q&A

      Features

        _x000D_

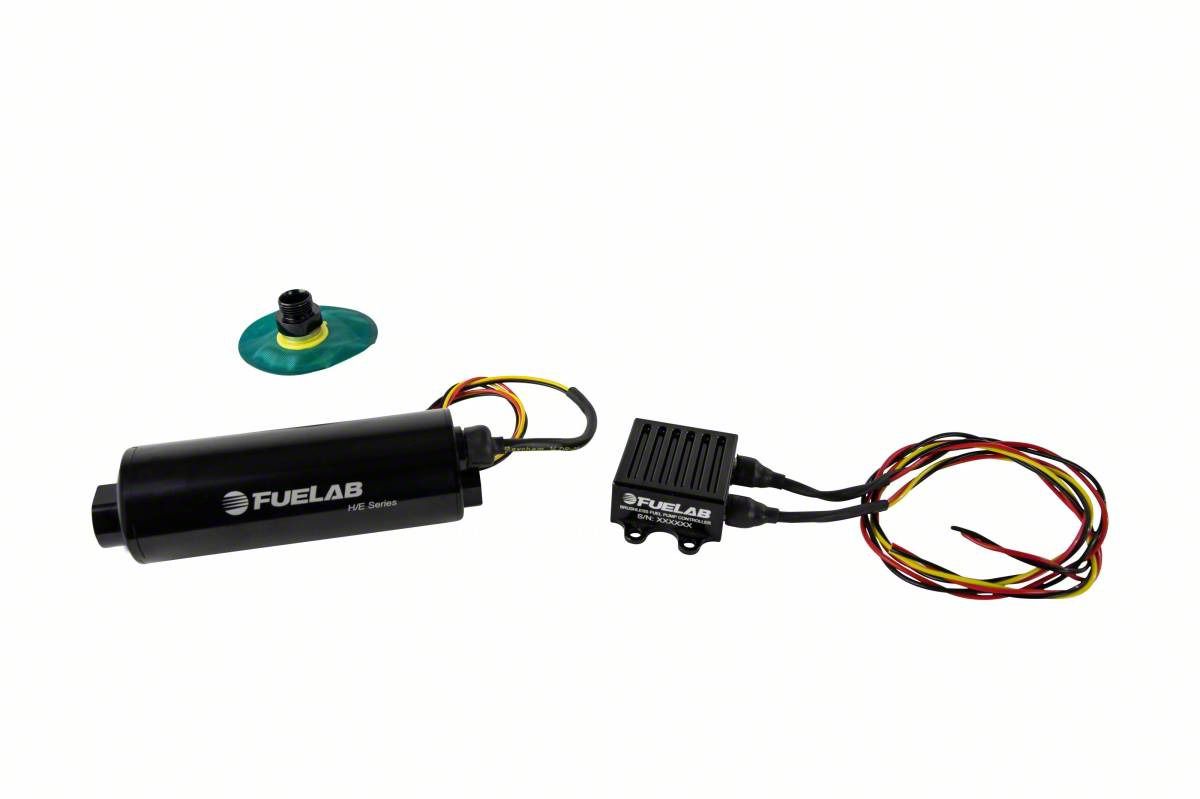

      • In-Tank Fuel Pump Kit Includes 300LPH Twin Screw Brushless Pump, Remote Mount PWM Controller, and 65 Micron Straining Filter
        • _x000D_
      • Compatible With Gasoline, Diesel, Methanol, and Ethanol
        • _x000D_
      • Twin Screw Rotor Pumping Mechanism
        • _x000D_
      • 125 PSI Max Operating Pressure
        • _x000D_
      • Supports Up to 625 HP at Continuous Speed (Naturally Aspirated)
        • _x000D_
      • Higher Efficiency Results in Lower Current Draw and Less Noise
        • _x000D_
      • Superior Priming Capabilities
        • _x000D_
      • Greater Resistance to Cavitation and Vapor Lock
        • _x000D_
      • Lightweight, Super-Efficient DC Brushless Motor Minimizing Current Draw
        • _x000D_
      • Powerful High Flux Density Neodymium Rare Earth Magnets
        • _x000D_
      • No Motor Brushes to Wear Out or Corrode; Suitable for Low-Sulfur Diesel
        • _x000D_
      • Wet Motor Design Without Dynamic Shaft Seals That Can Wear Out
        • _x000D_
      • Compatible With 12 to 16 Volt Vehicle Electrical Systems
        • _x000D_
      • Model 72004 Pump Controller Included for Full Speed PWM or 0-5V Input Speed Control
        • _x000D_
      • Continuous Duty Motor Speed Capability
        • _x000D_
      • Compact, Lightweight Design Weighing Less Than 3 lbs
        • _x000D_
      • Billet Aluminum Construction with MIL-A-8625 Type II Anodized Finish
        • _x000D_
      • Long-Life Multi-Fuel Compatible Fluorosilicone Static Seals
        • _x000D_
      • Accepts Standard or Port Style -8AN Fittings
        • _x000D_
      • Compatible With Most Aftermarket ECUs With PWM Output Frequency From 100Hz to 5000Hz
        • _x000D_
      • Fits Universal Applications; Some Adaptation May Be Required
        • _x000D_

      Description

      Twin Screw Fuel Pump. The Fuelab In-Tank Twin Screw Brushless Fuel Pump Kit (-8AN; 300 LPH) is engineered to deliver precise and efficient fuel flow for high-performance applications. Compatible with gasoline, diesel, methanol, and ethanol, this pump supports engines up to 625 horsepower running at continuous speed. It is ideal for automotive enthusiasts seeking improved fuel system performance, featuring reliable priming and excellent resistance to vapor lock.

      _x000D__x000D_

      Construction and Appearance. Constructed from billet aluminum with a MIL-A-8625 Type II anodized finish, this pump is both compact and lightweight, weighing less than 3 pounds. Durable fluorosilicone static seals ensure multi-fuel compatibility. The brushless motor uses high-flux neodymium rare earth magnets for enhanced efficiency and long-term reliability.

      _x000D__x000D_

      Installation. Installation requires only standard in-tank fuel pump replacement tools, with no drilling necessary, making it accessible for both professional mechanics and experienced DIY installers upgrading or replacing their fuel delivery system.

      _x000D__x000D_

      Warranty. This pump is covered by a limited lifetime warranty, providing assurance of its durability and quality.

      _x000D__x000D_

      Application. Designed to fit universal applications, this fuel pump may require some adaptation depending on vehicle configuration and fuel system setup.
