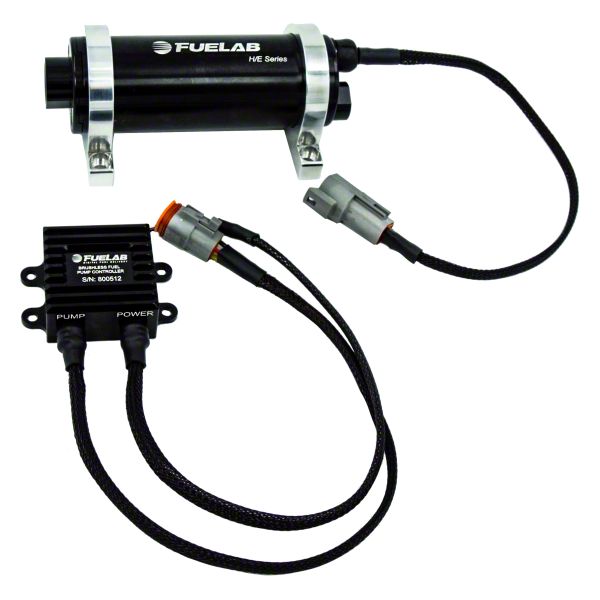

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH (Universal; Some Adaptation May Be Required)
Item SHG61286
Our Price
$1,311.00
Military, Medical & First Responders
$65.55 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In Line Fuel Pump, Rated Up To 1250HP, Street/Strip, Twin Screw DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 550 LPH At 45PSI, 125PSI Max Operating Pressure _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation (Vapor Lock) _x000D_
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode _x000D_
- Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact, Lightweight Design, Less Than 3 Lbs _x000D_
- Overall Length 7.13”, Diameter 2.0” _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625, Type II _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
High Performance Pump. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH is engineered to deliver reliable and consistent fuel flow at high pressure for applications up to 1250 horsepower. It is designed for demanding street and strip environments where fuel efficiency, priming, and resistance to vapor lock are essential. This pump supports efficient fuel delivery with various fuels including gasoline, diesel, methanol, and ethanol blends.
_x000D__x000D_Construction and Appearance. Featuring billet aluminum construction with MIL-A-8625, Type II anodizing, this pump offers durability and corrosion resistance. The compact, lightweight design weighs less than 3 pounds and measures 7.13” in length with a 2.0” diameter. It includes two billet aluminum mounting brackets and uses long-life fluorosilicone static seals for multi-fuel compatibility.
_x000D__x000D_Installation. Installation requires moderate mechanical skill and typically requires no complex modifications or drilling. The pump accepts standard or port style -8AN fittings, ensuring straightforward integration into most fuel systems.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty.
Application. Fits universal; some adaptation may be required.
Fuelab 47413
