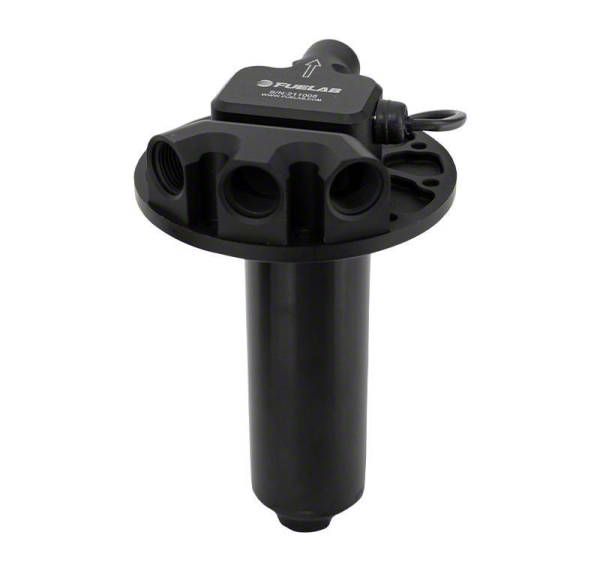

Fuelab H/E Series SAE Plate Mount Brushless Screw Pump; 850 HP; 400 LPH (Universal; Some Adaptation May Be Required)
Item SHG61347
Our Price
$1,311.00 each
Military, Medical & First Responders
$65.55 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- _x000D_
- 400 LPH @ 45PSI, 125PSI MAX _x000D_
- 13.5v Rated Up To 850HP _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125PSI Max Operating Pressure _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation (Vapor Lock) _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Variable Duty Motor Speed _x000D_
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode (Low-Sulfur Diesel, No Problem) _x000D_
- Wet Motor Design, No Dynamic Shaft Seals That Can Wear Out _x000D_
- Compact, Lightweight Design, Less Than 2.5lbs; Overall Length 8”, Pump Diameter 2” _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Flange Mounted SAE 10-Bolt Pattern For Easy Use With Fuel Cells Or Fabricated Reservoirs _x000D_
- Long Life, Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Backed By A Limited Lifetime Warranty _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
Description
High-Performance Fuel Pump. The Fuelab H/E Series SAE Plate Mount Brushless Screw Pump, rated up to 850 HP and delivering 400 liters per hour at 45 PSI, is designed to provide reliable fuel flow for high horsepower applications. This efficient in-tank pump is compatible with gasoline, diesel, methanol, and ethanol fuels. Its superior priming capabilities and resistance to vapor lock ensure optimal engine performance under demanding conditions.
_x000D__x000D_Construction and Appearance. Constructed from billet aluminum with a durable anodized finish per MIL-A-8625 Type II, this pump combines a lightweight design—under 2.5 lbs—and compact size with ruggedness. The wet motor design features powerful Neodymium rare earth magnets and fluorosilicone static seals compatible with multiple fuel types for long-lasting service.
_x000D__x000D_Installation. Installation is facilitated by a flange-mounted SAE 10-bolt pattern, allowing straightforward mounting to fuel cells or fabricated reservoirs without the need for additional drilling or complex modifications. This makes it suitable for both professional installations and enthusiast projects.
_x000D__x000D_Warranty. This product is backed by a limited lifetime warranty, providing confidence in durability and long-term performance.
_x000D_Application. Fits universal applications; some adaptation may be required.
Fuelab 93902
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Screw Pump
