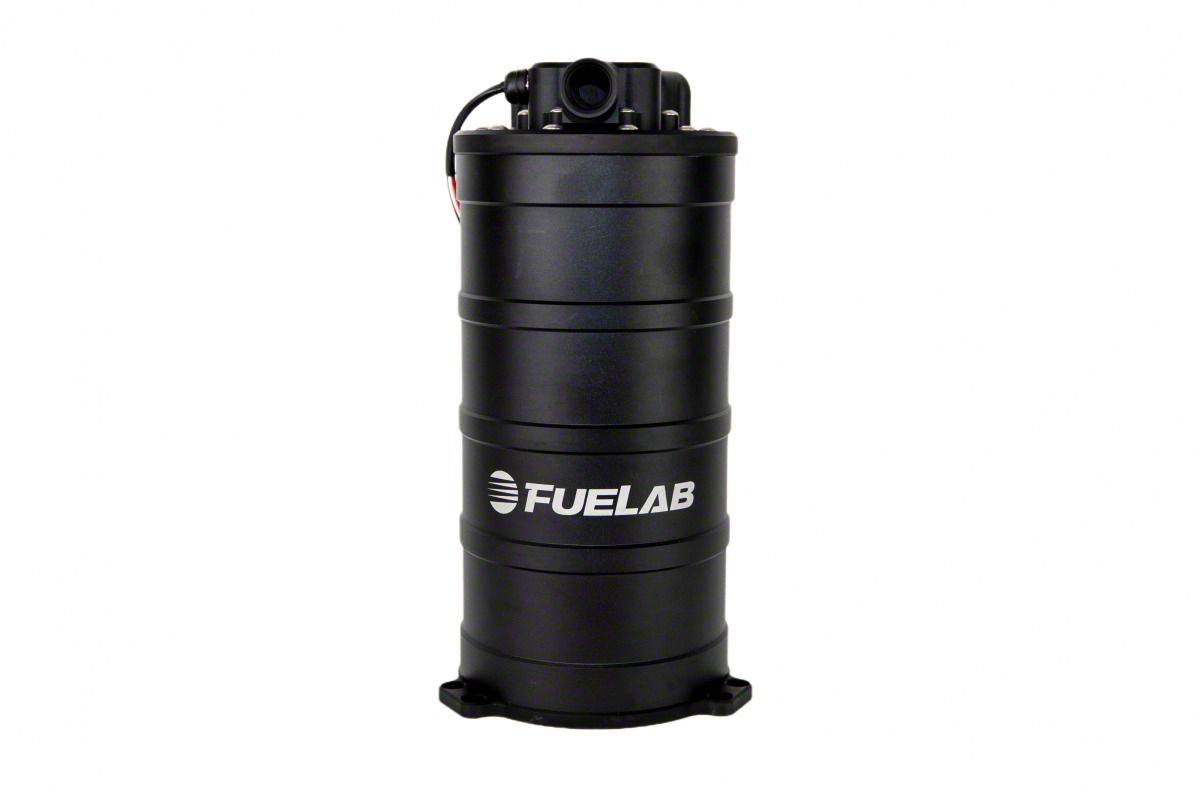

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall (Universal; Some Adaptation May Be Required)

Item SHG61310
Product Image
1 Reviews of Fuelab
Our Price

$1,679.00

Military, Medical & First Responders $83.95 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • 2.7L Fuel Surge Tank System With Speed Controllable, Twin Screw DC Brushless Fuel Pump, 400LPH
        • _x000D_
      • Allows For High Fuel Flow Output With Little Or No Modifications To The OE Fuel Tank And Module
        • _x000D_
      • Prevents Fuel Sloshing By Maintaining A Ready Volume Of Fuel
        • _x000D_
      • 290mm Tall
        • _x000D_
      • FST Rated Volume: 2.7 L
        • _x000D_
      • Single Twin Screw DC Brushless Fuel Pump Included
        • _x000D_
      • Rated To Flow 400LPH At 45PSI, 125PSI Max
        • _x000D_
      • Integrated Controller With PWM Speed Control
        • _x000D_
      • Billet Aluminum And O-Ring Construction Using -8AN Fuel Ports
        • _x000D_
      • Compatible With Pump And Racing Gasoline, And E85
        • _x000D_
      • Return Line Is Required, Returns Excess Fuel Back To The Vehicle Fuel Tank
        • _x000D_
      • Optional FST Upgrade Accessory Kits Sold Separately
        • _x000D_
      • Backed By A Limited Lifetime Warranty
        • _x000D_
      • Pulse Width Modulation Compatibility (PWM) From 100Hz To 5000Hz
        • _x000D_
      • Compatible With Most Aftermarket ECU's With PWM Output Frequency Including AEM, ECU Masters, Fueltech, Haltech, Holley, Link Engine Management, And Megasquirt
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance Fuel Surge Tank System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall provides reliable high-volume fuel delivery, preventing fuel starvation by maintaining constant fuel pressure and volume. It is designed to enhance fuel system performance in high-demand applications while minimizing modifications to existing fuel tanks.

      _x000D__x000D_

      Construction and Appearance. Constructed from billet aluminum with O-ring seals, the surge tank features durability and corrosion resistance. The finish highlights precision machining with integrated -8AN fuel ports, designed for a professional, high-quality appearance tailored for performance vehicles.

      _x000D__x000D_

      Installation. Installation requires moderate mechanical skill, with no major modifications to the original equipment required. The system includes necessary fittings and connections but requires incorporating a return fuel line into the existing fuel system to manage excess fuel.

      _x000D__x000D_

      Warranty. This fuel surge tank system is backed by a limited lifetime warranty, ensuring long-term reliability and customer confidence.

      _x000D__x000D_

      Application. Fits universal vehicles; some adaptation may be required depending on the specific fuel system layout and available mounting space.

      Fuelab 61712
