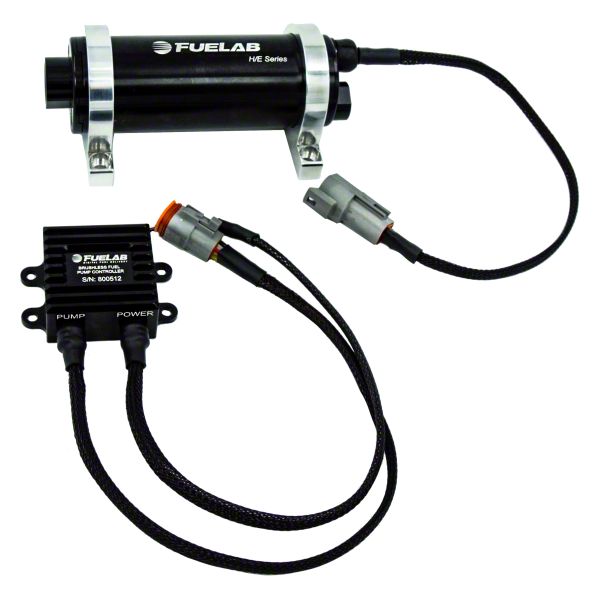

Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump; -8AN; 550 LPH (Universal; Some Adaptation May Be Required)
Item R204930
Our Price
$1,311.00
Military, Medical & First Responders
$65.55 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- High Efficiency EFI In-Line Fuel Pump Rated Up To 1250HP Street/Strip Twin Screw DC Brushless Driven Fuel Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 550 LPH @ 45PSI, 125PSI Max, 13.5v Rated Up To 1250HP _x000D_
- Compatible With Gasoline, Diesel, Methanol, And Ethanol _x000D_
- Twin Screw Rotor Pumping Mechanism _x000D_
- 125PSI Max Operating Pressure _x000D_
- 1250HP Power Support At Continuous Speed _x000D_
- Higher Efficiency Means Less Current Draw And Less Noise _x000D_
- Superior Priming Capabilities _x000D_
- Greater Resistance To Cavitation And Vapor Lock _x000D_
- Lightweight Super-Efficient DC Brushless Motor To Minimize Current Draw _x000D_
- Powerful High Flux Density Neodymium Rare Earth Magnets _x000D_
- No Motor Brushes To Wear Out Or Corrode; Low-Sulfur Diesel Compatible _x000D_
- Wet Motor Design With No Dynamic Shaft Seals That Can Wear Out _x000D_
- 12 To 16 Volt Vehicle Electrical System Compatibility _x000D_
- Model 72004 Pump Controller Included For Full Speed Or PWM Input Speed Control _x000D_
- Continuous Duty Motor Speed _x000D_
- Compact Lightweight Design Less Than 3lbs; Overall Length 7.13", Diameter 2.0" _x000D_
- Billet Aluminum Construction With Anodize Per MIL-A-8625 Type II _x000D_
- Includes Two Billet Aluminum Mounting Brackets _x000D_
- Long Life Multi-Fuel Compatible Fluorosilicone Static Seals _x000D_
- Accepts Standard Or Port Style -8AN Fittings _x000D_
- Fits Universal Applications; Some Adaptation May Be Required _x000D_
Description
HIGH PERFORMANCE FUEL PUMP. The Fuelab High Efficiency EFI In-Line Twin Screw Brushless Fuel Pump (-8AN, 550 LPH) is engineered to deliver precise and reliable fuel flow for engines up to 1250 horsepower. It supports both street and strip applications using a twin screw rotor mechanism that ensures superior volumetric efficiency and durability. This pump is essential for maintaining optimal engine performance and consistent fuel delivery under high-demand conditions.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Crafted from billet aluminum and finished with a MIL-A-8625 Type II anodized coating, this fuel pump combines strength and corrosion resistance with a lightweight design under 3 pounds. Its compact dimensions (7.13” length and 2.0” diameter) provide installation flexibility, while long-life fluorosilicone seals ensure multi-fuel compatibility and durability.
_x000D__x000D_INSTALLATION. Installation is straightforward, typically requiring no drilling when using the included billet aluminum mounting brackets. Designed for use with a 12 to 16 volt vehicle electrical system, the pump includes a Model 72004 controller that allows full speed or PWM input speed control for convenient setup.
_x000D__x000D_WARRANTY AND APPLICATION. Backed by a limited lifetime warranty for long-term reliability and customer confidence. Fits universal applications; some adaptation may be necessary to accommodate specific vehicle configurations.
Fuelab 47413
