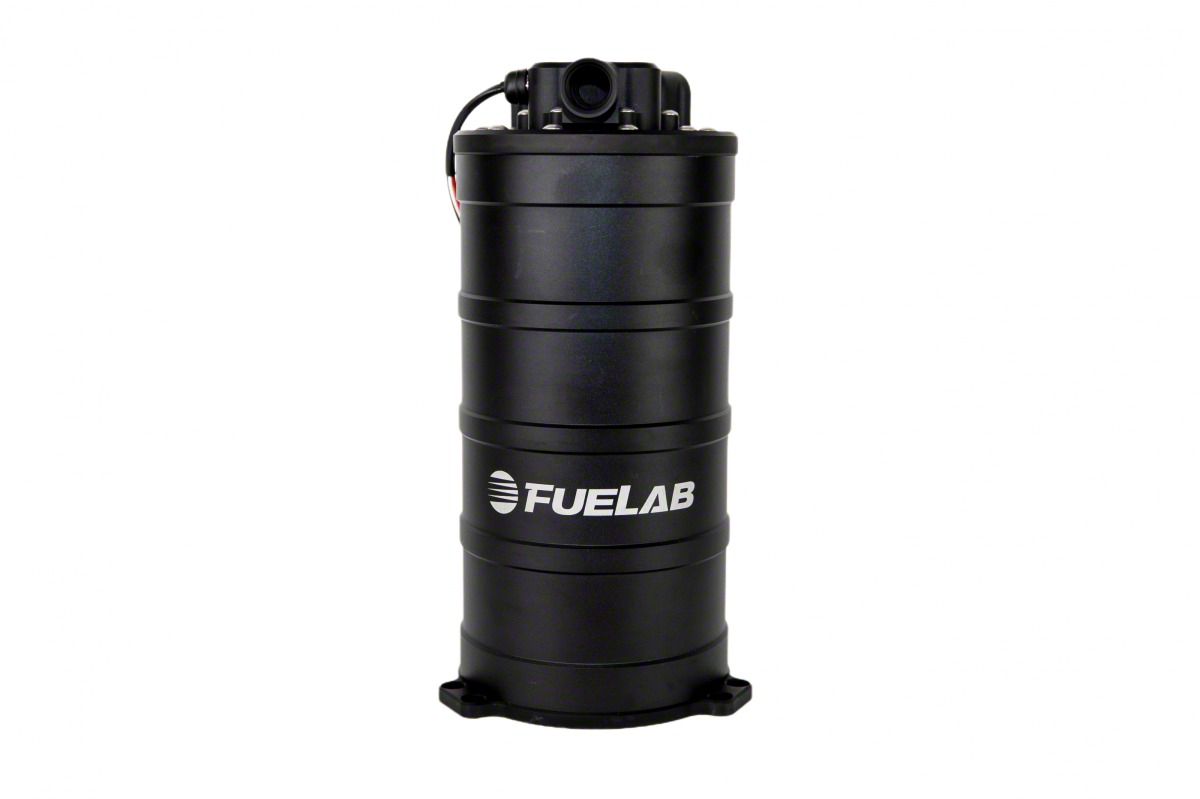

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 850 HP; 290mm Tall (Universal; Some Adaptation May Be Required)
Item R204954
Our Price
$1,679.00
Military, Medical & First Responders
$83.95 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- H/E Series 290mm Tall Fuel Surge Tank System with 850 HP SAE Plate Mount Brushless Twin Screw Pump _x000D_
- Limited Lifetime Warranty _x000D_
- 2.7L Fuel Surge Tank System with Speed Controllable Twin Screw DC Brushless Fuel Pump, Rated 400 LPH _x000D_
- Provides High Fuel Flow Output With Minimal Modifications to the OE Fuel Tank and Module _x000D_
- Prevents Fuel Sloshing by Maintaining a Ready Volume of Fuel _x000D_
- Height: 290mm _x000D_
- Fuel Surge Tank Rated Volume: 2.7 L _x000D_
- Includes Single Twin Screw DC Brushless Fuel Pump _x000D_
- Rated to Flow 400 LPH at 45 PSI, Max Pressure 125 PSI _x000D_
- Integrated Controller with PWM Speed Control _x000D_
- Billet Aluminum Body with O-Ring Seals and -8AN Fuel Ports _x000D_
- Compatible with Pump Gasoline, Racing Gasoline, and E85 _x000D_
- Return Line Required; Returns Excess Fuel to Vehicle Fuel Tank _x000D_
- Optional Fuel Surge Tank Upgrade Accessory Kits Sold Separately _x000D_
- Pulse Width Modulation Compatibility from 100Hz to 5000Hz with Most Aftermarket ECUs _x000D_
- Universal Fit; Some Adaptation May Be Required for Installation _x000D_
Description
High-Performance Fuel Surge System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump (850 HP, 290mm Tall) provides reliable and consistent fuel delivery under demanding conditions. It prevents fuel sloshing to ensure a steady supply to high-output engines, critical for performance and reliability.
_x000D__x000D_Construction and Appearance. The system is constructed from billet aluminum with O-ring seals and features precision-machined -8AN fuel ports for secure, leak-free connections. It is compatible with a range of fuels including pump gasoline, racing gasoline, and E85, designed to withstand harsh conditions.
_x000D__x000D_Installation. Installation typically requires moderate automotive skill and no major modifications to the factory fuel tank or module. The system mounts via an SAE plate and fits many applications with some adaptation, suitable for professional or experienced enthusiasts.
_x000D__x000D_Warranty. This surge tank system is backed by a limited lifetime warranty, providing assurance of durability and performance.
_x000D__x000D_Application. Designed for universal use with some necessary adaptation, the surge tank integrates seamlessly with most aftermarket ECUs supporting PWM outputs from 100Hz to 5000Hz, allowing for precise fuel pump speed control.
