Find Fuel System Parts for your Ram 1500

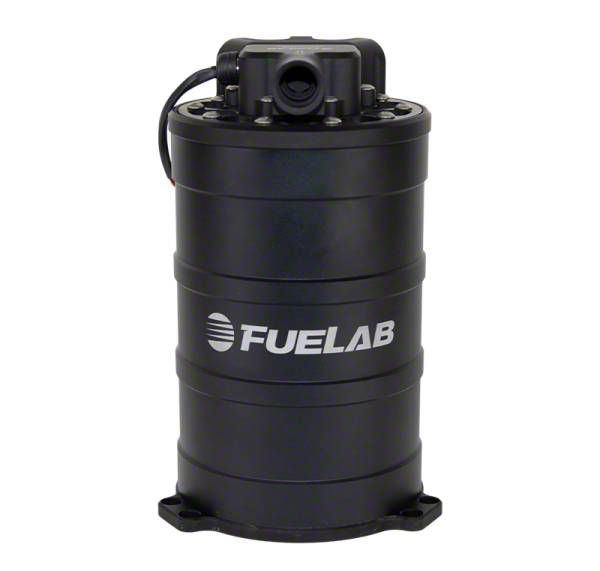

Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump; 625 HP; 235mm Tall (Universal; Some Adaptation May Be Required)
Item R204949
Our Price
$1,616.00
Military, Medical & First Responders
$80.80 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features
- _x000D_
- H/E Series 235mm Tall Fuel Surge Tank System with 625 HP SAE Plate Mount Brushless Twin Screw Pump _x000D_
- Limited Lifetime Warranty Included _x000D_
- 2.1L Fuel Surge Tank Volume _x000D_
- Single Twin Screw DC Brushless Fuel Pump _x000D_
- Fuel Pump Rated to Flow 300 LPH at 45 PSI, Maximum Pressure 125 PSI _x000D_
- Integrated Controller with PWM Speed Control _x000D_
- Billet Aluminum Construction with O-Ring Seals _x000D_
- Uses -8AN Fuel Ports _x000D_
- Compatible with Pump Gasoline, Racing Gasoline, and E85 _x000D_
- Return Line Required to Send Excess Fuel Back to Vehicle Fuel Tank _x000D_
- Pulse Width Modulation Compatibility Ranges from 100 Hz to 5000 Hz _x000D_
- Compatible with Most Aftermarket ECUs Including AEM, ECU Masters, Fueltech, Haltech, Holley, Link Engine Management, and Megasquirt _x000D_
- Universal Fitment; Some Adaptation May Be Required _x000D_
Description
Fuel Surge Tank System. The Fuelab H/E Series Fuel Surge Tank System with Brushless Twin Screw Pump, 625 HP, and 235mm height is engineered to deliver high fuel flow output while requiring minimal modifications to the original equipment fuel tank and module. It prevents fuel sloshing by maintaining a consistent ready volume of fuel, ensuring stable and reliable delivery under demanding conditions.
_x000D__x000D_Construction and Appearance. This surge tank features precision-machined billet aluminum construction with O-ring seals for superior durability and leak resistance. The finish is designed to withstand aggressive fuels including pump gasoline, racing gasoline, and E85, with robust fittings using -8AN fuel ports for straightforward connections.
_x000D__x000D_Installation. Installation is straightforward with standard SAE plate mounting and requires basic mechanical skills; no specialized drilling or fabrication is necessary for most applications. A return line is required to send excess fuel back to the vehicle fuel tank to ensure proper fuel circulation and management.
_x000D__x000D_Warranty. The system includes a limited lifetime warranty, providing confidence in long-term reliability and performance.
_x000D__x000D_Application. Designed as a universal fitment solution, some adaptation may be required to integrate with specific vehicle configurations.
Fuelab 61701
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
