Find Ring & Pinion Gears for your Ram 1500

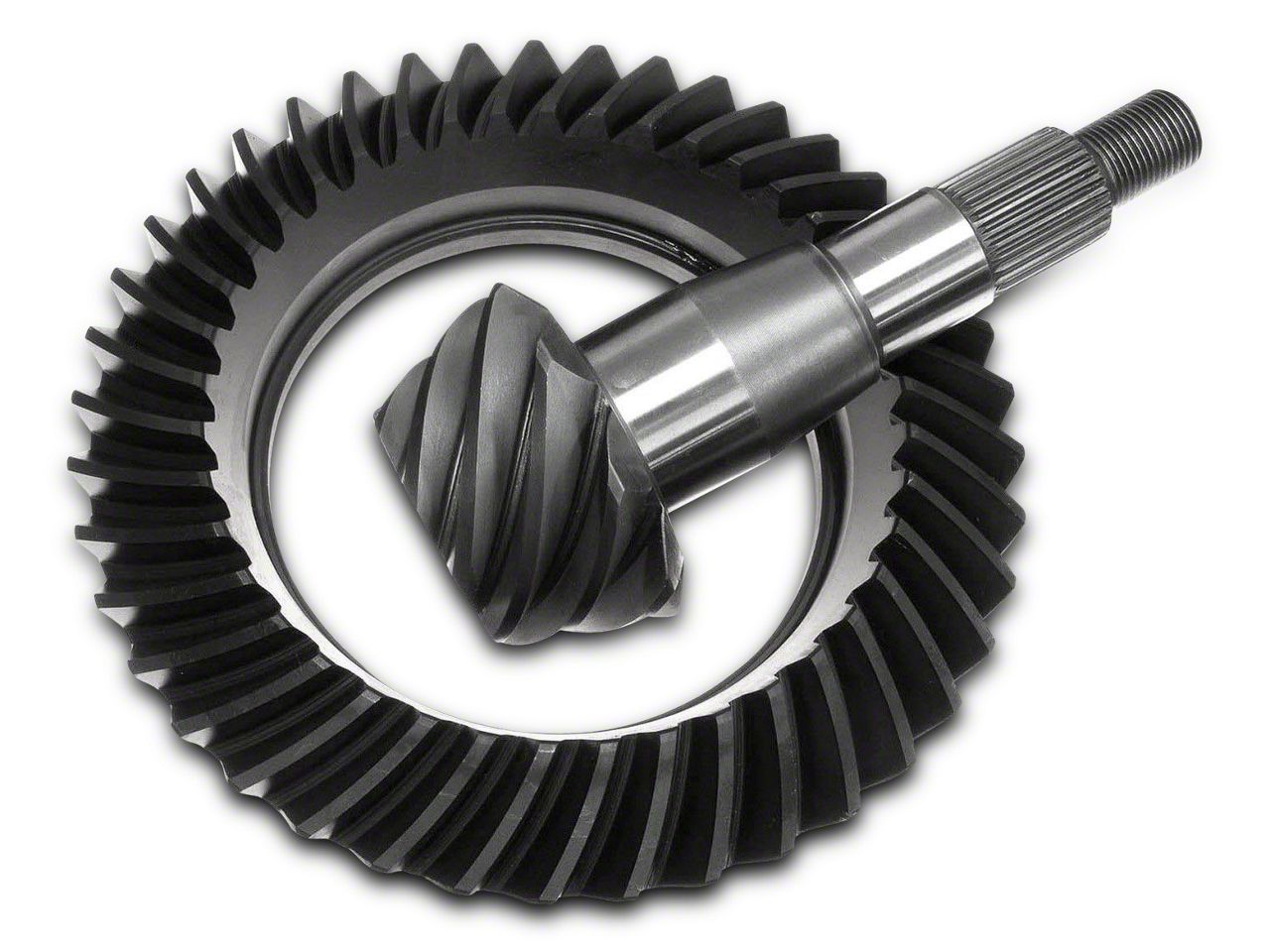

EXCEL from Richmond 9.25-Inch Rear Axle Ring and Pinion Gear Kit; 4.56 Gear Ratio (02-10 RAM 1500)Find parts that fit my vehicle

Item R102172
Product Image
Limited Time
2 Reviews
Our Price

$334.99 kit

Coupon
Apply 10% Discount
One coupon per order | Details
Military, Medical & First Responders $16.75 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

    Frequently Bought Together

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

        _x000D_
      • For Chrysler 9.25" (12 Bolt)
        • _x000D_
      • 4.56 Ratio
        • _x000D_
      • Dual Drilled For 7/16" And 14mm Ring Gear Bolts
        • _x000D_
      • Requires Notched Cross Pin Part# 80-0280-1 For Ring Gear Clearance
        • _x000D_
      • 2011 & Newer Models Require A 7/8" x 14 Thread Pinion Nut
        • _x000D_
      • Cover Bolt Quantity 12
        • _x000D_
      • Differential Case Design Type Chrysler 9.25 Rear
        • _x000D_
      • Gear Ratio 4.56
        • _x000D_
      • Pinion Gear Tooth Quantity 9
        • _x000D_
      • Pinion Shaft Diameter 1.877 Inch
        • _x000D_
      • Pinion Spline Count 29
        • _x000D_
      • Position Rear
        • _x000D_
      • Ring Gear Bolt Quantity 12
        • _x000D_
      • Ring Gear Material 8620 Steel
        • _x000D_
      • Ring Gear Outside Diameter 9.25 Inch
        • _x000D_
      • Ring Gear Rotation Standard
        • _x000D_
      • Ring Gear Tooth Quantity 41
        • _x000D_
      • Fits 02-10 RAM 1500
        • _x000D_

      Description

      Premium Rear Axle Gear Kit. The EXCEL from Richmond 9.25-Inch Rear Axle Ring and Pinion Gear Kit; 4.56 Gear Ratio offers a precise gear ratio upgrade for improved torque and drivability. This kit is designed to replace factory components in Chrysler 9.25" rear axles, ensuring optimal performance and reliability in demanding applications.

      _x000D__x000D_

      Construction and Appearance. Crafted from high-strength 8620 steel, the ring gear and pinion gear provide durability and resistance to wear and fatigue. The components feature a standard ring gear rotation with a machined finish, delivering a strong and precise gear mesh pattern for quiet operation.

      _x000D__x000D_

      Installation. Installation requires professional mechanical skills as the kit includes dual-drilled ring gear bolts and necessitates the use of a notched cross pin for clearance. No additional drilling is required, but specific pinion nut specifications apply for models 2011 and newer.

      _x000D__x000D_

      Warranty. This gear kit is backed by a 1 year or 50,000 mile warranty for peace of mind.

      _x000D__x000D_

      Application. Designed to fit 02-10 RAM 1500 models, ensuring compatibility with the factory 9.25" rear axle configuration without modification.

      Shop All Truck Parts And Accessories

      Shop All Truck Drivetrain Parts

      Shop All Truck Gears: Ring And Pinion

      EXCEL from Richmond CR925456

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      What's in the Box

      • (1) Rear Ring Gear
      • (1) Pinion
