Find Audio & Electronics for your Ram 1500

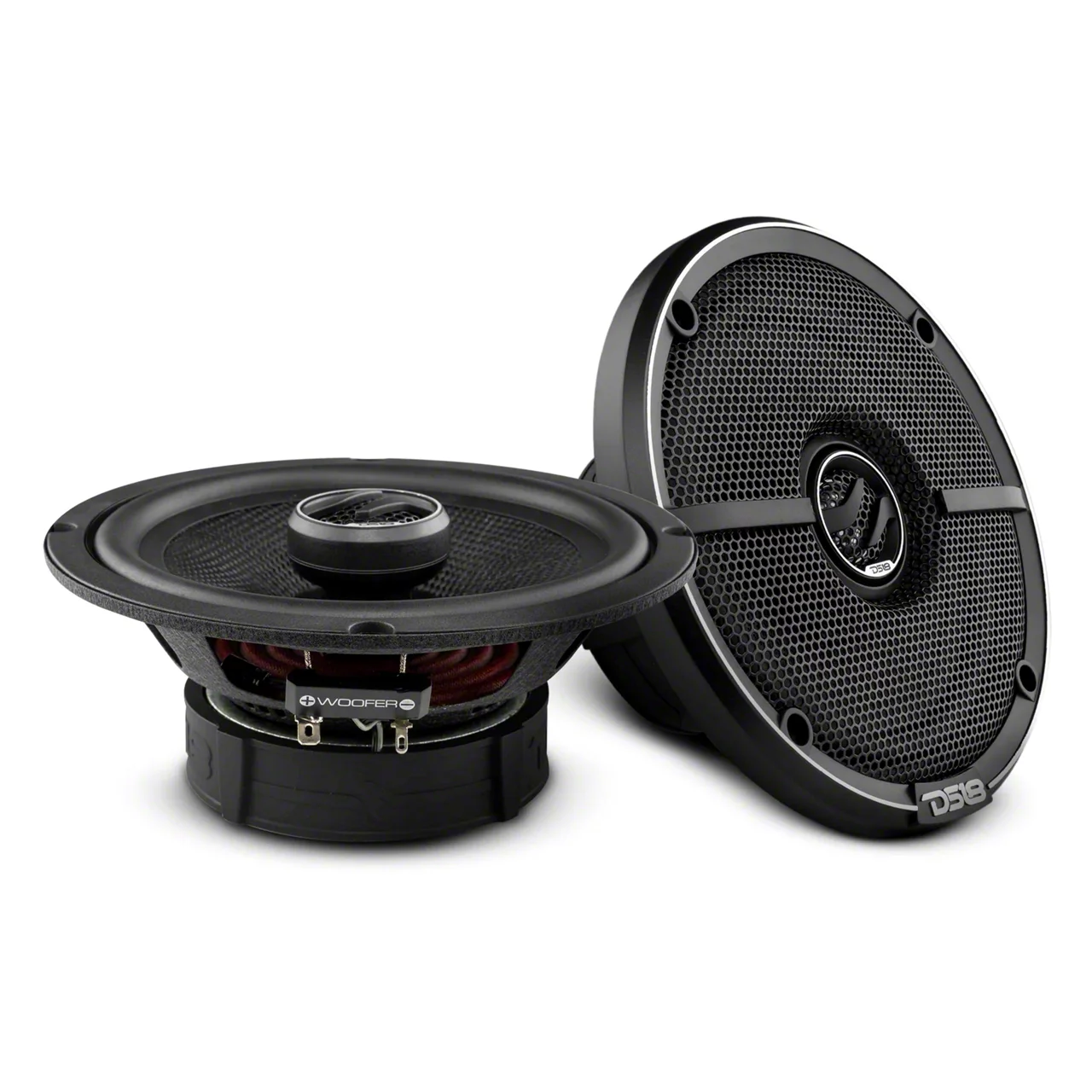

DS18 ZXI 6.50-Inch 2-Way Coaxial Speakers with Kevlar Cone; 240 Watts (Universal; Some Adaptation May Be Required)

Item R146414
Product Image
1 Reviews
Our Price

$94.95 pair

Military, Medical & First Responders $4.75 Available in AT Cash Rewards.
Confirm Eligibility

Save with Open Box

From $56.97

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

        _x000D_
      • 6.5" 2-Way Coaxial
        • _x000D_
      • Max Power 240 Watts
        • _x000D_
      • RMS Power 80 Watts
        • _x000D_
      • Impedance 4 Ohm
        • _x000D_
      • Barium Ferrite & Neodymium Magnets
        • _x000D_
      • Pair ~ 87 dB
        • _x000D_
      • Nominal Diameter 6.5 Inches
        • _x000D_
      • Sensitivity 89 dB
        • _x000D_
      • Frequency Response 40 Hz - 20 kHz
        • _x000D_
      • Recommended Hi Pass 60 Hz
        • _x000D_
      • Speaker Type 2-Way
        • _x000D_
      • Voice Coil Diameter 25.5 mm (1 Inch)
        • _x000D_
      • Voice Coil Former Material KSV
        • _x000D_
      • Winding Material EISV
        • _x000D_
      • Cone Material Kevlar
        • _x000D_
      • Surround Material Rubber
        • _x000D_
      • Basket Material Steel
        • _x000D_
      • Magnet Material Barium Ferrite
        • _x000D_
      • Magnet Weight 14.46 oz / 410 g
        • _x000D_
      • Tweeter Nominal Diameter 25.4 mm (1 Inch)
        • _x000D_
      • Tweeter Voice Coil Diameter 20.4 mm (0.8 Inch)
        • _x000D_
      • Tweeter Voice Coil Former Material KSV
        • _x000D_
      • Tweeter Winding Material EISVM
        • _x000D_
      • Tweeter Diaphragm Material PEI
        • _x000D_
      • Tweeter Magnet Material Neodymium
        • _x000D_
      • Tweeter Magnet Weight 8.5 g / 0.3 oz
        • _x000D_
      • Vas 10.84 L
        • _x000D_
      • Xmax 2.7 mm
        • _x000D_
      • Fs 64 Hz
        • _x000D_
      • Qms 9.44
        • _x000D_
      • Qes 0.79
        • _x000D_
      • Qts 0.73
        • _x000D_
      • Mms 13.72 g
        • _x000D_
      • Cms 444 mm / N
        • _x000D_
      • Bl 5.1
        • _x000D_
      • Le 228 mH
        • _x000D_
      • Sd 131 cm²
        • _x000D_
      • Re 3.5 Ohm
        • _x000D_
      • Mmd 12 g
        • _x000D_
      • Overall Diameter 6.50 inch (165 mm)
        • _x000D_
      • Overall Depth 72 mm (2.83 inch)
        • _x000D_
      • Front Mount Baffle Cutout 141 mm (5.55 inch)
        • _x000D_
      • Mounting Depth 60 mm (2.36 inch)
        • _x000D_
      • Motor Diameter 94 mm (3.70 inch)
        • _x000D_
      • Product Weight 5.5 lbs
        • _x000D_
      • Product Dimensions 15.75 x 7.75 x 3.75 inches
        • _x000D_
      • M/C Weight 35 lbs
        • _x000D_
      • M/C Dimensions 16.5 x 16.75 x 12.25 inches
        • _x000D_
      • M/C Qty 6
        • _x000D_
      • Sold In Pair
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance Coaxial Speakers. The DS18 ZXI 6.50-Inch 2-Way Coaxial Speakers with Kevlar Cone provide powerful and clear sound for automotive audio systems at 240 Watts maximum power. Designed for enthusiasts seeking to improve sound quality, these speakers deliver precise audio reproduction across a wide frequency range. Their robust build supports consistent performance in various automotive environments.

      _x000D__x000D_

      Construction and Appearance. Featuring a Kevlar cone woofer and rubber surround, these speakers combine durability with minimized vibrations for precise bass response. The tweeter employs a 1-inch neodymium magnet and PEI diaphragm, enhancing high-frequency clarity. The combination of barium ferrite and neodymium magnets adds strength without excess weight. Quality materials such as a steel basket ensure structural integrity.

      _x000D__x000D_

      Installation. Installation is straightforward, with standard baffle cutouts and an overall depth suitable for most vehicle door configurations. This makes fitment accessible for universal applications, although some minor adaptation may be required depending on the vehicle.

      _x000D__x000D_

      Warranty. These speakers include a two-year warranty, providing assurance of reliability and product longevity.

      _x000D__x000D_

      Application. Universal fitment allows use in a wide range of vehicles, with potential minor adaptations depending on specific vehicle interiors or mounting requirements.

      DS18 ZXI-654

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (2) Coaxial Speakers
      • Mounting Hardware
      • Instruction Manual
