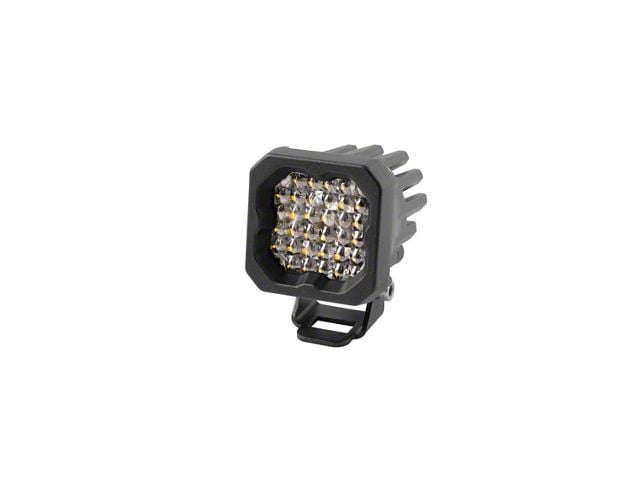

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)

Item SHG24056
Product Image
32 Reviews of Diode Dynamics
Our Price

$159.95

Military, Medical & First Responders $8.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact, Single-LED Form Factor
        • _x000D_
      • Triple Function: High-Power White Main Beam, High-Power Red Main Beam, And Low-Power Red Accent Light
        • _x000D_
      • Pin-Fin Heatsink Design For Superior Thermal Dissipation
        • _x000D_
      • Integrated Deutsch-Style Connector
        • _x000D_
      • Designed, Torture-Tested, And Assembled In USA
        • _x000D_
      • Custom-Engineered TIR Optics With Single High-Power LED Chip
        • _x000D_
      • High-Power White And Red Main Beams With Low-Power Red Accent Light
        • _x000D_
      • Versatile, Compact Size For Multiple Mounting Locations
        • _x000D_
      • Flood Beam Pattern With Uniform, Even Illumination And Full 50x50 Degree Spread Of Light
        • _x000D_
      • Interchangeable Lens For Different Beam Patterns Or Colors
        • _x000D_
      • Simple Wiring With 4-Pin Deutsch DT Connector And Color Coded Wires
        • _x000D_
      • Extensively Tested For Operation Between -40 To 185 Degrees Fahrenheit
        • _x000D_
      • Snap-On Covers Available To Protect Pod And Maintain Cleanliness
        • _x000D_
      • Lifetime Warranty Included
        • _x000D_
      • Includes One LED Pod, Deutsch-Style Wire Pigtails, Mounting Bracket And Hardware
        • _x000D_
      • Raw Lumens: 1450 lm
        • _x000D_
      • Color Temperature: 6000K
        • _x000D_
      • Power: 15 Watts
        • _x000D_
      • Operating Voltage: 9-16V
        • _x000D_
      • Polarity Specific
        • _x000D_
      • Operating Temperature Range: -40C To 85C (-40F To 185F)
        • _x000D_
      • IP69K Waterproof Rating With High Pressure Resistance
        • _x000D_
      • Unit Weight: 0.175 lb, Product Weight: 0.325 lb, Shipped Weight: 0.4 lb
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      Compact Versatile Lighting. The Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood is a multi-function LED pod designed for various automotive and off-road applications. It delivers high-power white and red beams, along with a low-power red accent, making it ideal for backup lights, secondary brake lights, and running lights in confined mounting spaces. Its compact size allows installation in tight areas where larger pods cannot fit, enhancing vehicle lighting efficiently.

      _x000D__x000D_

      Construction and Appearance. This LED pod features a durable polycarbonate lens and an aluminum casting body with a rubber gasket for enhanced sealing. Engineered with a pin-fin heatsink design, it ensures superior passive cooling while maintaining a sleek, weather-resistant finish. The integrated Deutsch-style connector and patented TIR optics provide durability and optical efficiency with a focused flood beam pattern.

      _x000D__x000D_

      Installation. Installation is straightforward and requires basic tools, with most jobs completed within 30–60 minutes. The pod mounts securely using included universal brackets, and no drilling is necessary for most standard fittings.

      _x000D__x000D_

      Warranty. The product is backed by a limited lifetime warranty, providing confidence in long-term reliability and performance.

      _x000D__x000D_

      Application. Designed with universal fitment in mind, this LED pod accommodates a wide range of vehicles and mounting options, though some adaptation may be necessary for certain installations.

      Diode Dynamics DD7423S
