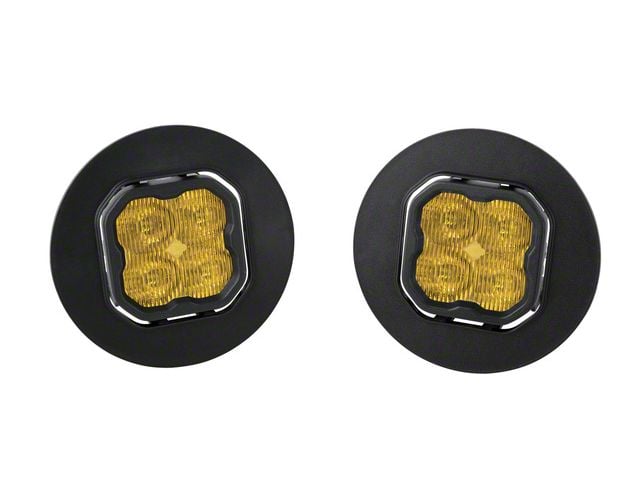

Diode Dynamics SS3 Pro Type GM-5 LED Fog Light Kit; Yellow SAE Fog (07-14 Sierra 3500 HD)Find parts that fit my vehicle

Item SHG19697
Our Price

$499.95

Military, Medical & First Responders $25.00 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle

Item Options

    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features & Specs

        _x000D_
      • Advanced TIR Optics Provide Efficient and Focused Illumination
      • _x000D_
      • SAE-Compliant Road-Legal Output
      • _x000D_
      • Includes Custom Bracket for a Factory-Style Appearance
      • _x000D_
      • Plug-and-Play Installation with No Modifications Needed
      • _x000D_
      • Durable Powder-Coated Aluminum Housing
      • _x000D_
      • Engineered and Assembled in the USA
      • _x000D_
      • Peak Beam Intensity of 10,900 Candela (Yellow Pro Model)
      • _x000D_
      • Measured Output of 2,700 Lumens
      • _x000D_
      • Raw Output of 5,220 Lumens
      • _x000D_
      • Output Color: 3000K Yellow
      • _x000D_
      • Main Beam Power: 36 Watts
      • _x000D_
      • Backlight Power: 0.4 Watts
      • _x000D_
      • Main Beam Current: 2.7 Amps at 12.8 Volts
      • _x000D_
      • Backlight Current: 0.03 Amps at 12.8 Volts
      • _x000D_
      • Operating Voltage Range: 9 to 16 Volts
      • _x000D_
      • Polarity-Specific Connector
      • _x000D_
      • Operating Temperature Range: -40°C to 85°C (-40°F to 185°F)
      • _x000D_
      • LED Emitters Include Cree XP-L HI
      • _x000D_
      • Deutsch DT Input Connector
      • _x000D_
      • Constant Current Driver
      • _x000D_
      • Polycarbonate Lens with Aluminum Casting and Rubber Gasket Construction
      • _x000D_
      • Passive Pin-Fin Heatsink Cooling
      • _x000D_
      • Complies with SAE J575 Durability and J583 Fog Lamp Beam Pattern Standards
      • _x000D_
      • IP69K Waterproof for High-Pressure Intrusion Resistance
      • _x000D_
      • Unit Weight: 0.75 Pounds; Product Weight: 0.82 Pounds
      • _x000D_
      • Pair of Lights Included
      • _x000D_
      • Mounting Hardware and Guide Included
      • _x000D_
      • Limited Lifetime Warranty Provided
      • _x000D_
      • Compatible with 2007-2014 Sierra 3500 HD Models
      • _x000D_

      Description

      High-Performance Fog Lights. The Diode Dynamics SS3 Pro Type GM-5 LED Fog Light Kit in Yellow SAE provides superior lighting performance with a 3000K yellow output optimized for enhanced visibility in poor weather conditions. Designed as a direct replacement fog lamp, this kit enhances your vehicle’s safety and functionality with focused illumination that meets SAE J583 standards.

      _x000D_

      Construction and Appearance. These fog lights feature a durable powder-coated aluminum housing, a polycarbonate lens, and a rubber gasket for excellent weather resistance. Custom-molded brackets and bezels ensure a clean, factory-style look while offering protection against moisture with an IP69K waterproof rating and robust impact resistance.

      _x000D_

      Installation. The kit installs easily with no drilling or complex wiring required, making it a straightforward plug-and-play upgrade. Installation typically takes 30 to 60 minutes using basic hand tools.

      _x000D_

      Warranty. This product is backed by a limited lifetime warranty against defects.

      _x000D_

      Application. Specifically designed for direct fit on 2007-2014 Sierra 3500 HD models (excluding Classic versions), ensuring perfect integration without modification.

      Diode Dynamics DD7040
