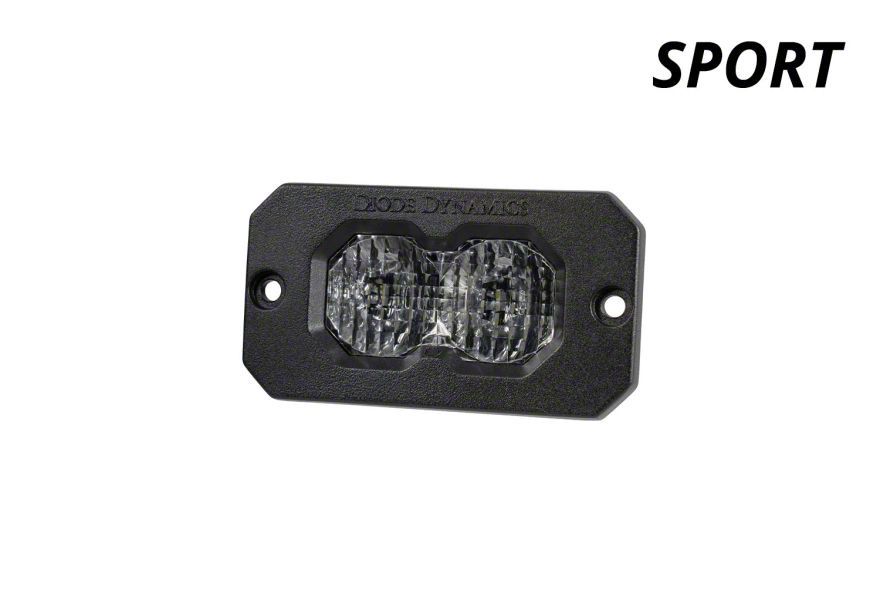

Diode Dynamics Stage Series C2 2.0 Sport Flush Mount LED Pod Light with Red Backlight; White Combo/Driving (Universal; Some Adaptation May Be Required)

Item SHG65214
Product Image
Our Price

$109.95

Military, Medical & First Responders $5.50 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Ultra-Compact Design For Tight Mounting Spots
        • _x000D_
      • Patented TIR Optics For Maximum Output
        • _x000D_
      • Up To 95% More Power Than C2 1.0
        • _x000D_
      • Available In Sport, Pro, And New 3900-Lumen Max Power Levels
        • _x000D_
      • Limited Lifetime Warranty
        • _x000D_
      • Made In USA With Global Materials
        • _x000D_
      • Raw Output: 1,190 Lumens
        • _x000D_
      • Color Temp: 6000K
        • _x000D_
      • Power: Main Beam 15 Watts, Backlight 0.38 Watts
        • _x000D_
      • Operating Voltage: 9-30V
        • _x000D_
      • Current: Main Beam 1.17 Amps @ 12.8V, Backlight 0.03 Amps
        • _x000D_
      • Polarity Specific
        • _x000D_
      • Operating Temperature: -40°C To 85°C (-40°F To 185°F)
        • _x000D_
      • LED Emitter: Lumileds Automotive Grade LED
        • _x000D_
      • Connector: Deutsch DT Input
        • _x000D_
      • Driver Features: Constant Current
        • _x000D_
      • Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
        • _x000D_
      • Cooling: Passive Pin-Fin Heatsink
        • _x000D_
      • Compliance Ratings: SAE J575 Durability Test
        • _x000D_
      • Intrusion Ratings: IP69K Waterproof, High Pressure
        • _x000D_
      • Product Dimensions (Inches): 2.5 X 4.5 X 2.4
        • _x000D_
      • Unit Weight: 0.55 Pounds
        • _x000D_
      • Product Weight: 1.4 Pounds
        • _x000D_
      • Fits Universal; Some Adaptation May Be Required
        • _x000D_

      Description

      High-Performance LED Lighting. The Diode Dynamics Stage Series C2 2.0 Sport Flush Mount LED Pod Light with Red Backlight; White Combo/Driving delivers compact, powerful illumination ideal for off-road, bumper, cargo, trailer, or roof rack lighting. Its patented TIR optics and increased lumen output provide precise light distribution with reduced glare for enhanced visibility and safety.

      _x000D__x000D_

      Durable Construction and Appearance. This LED pod features a polycarbonate lens paired with a powder-coated aluminum casting and rubber gasket for robust protection. The housing is designed for superior thermal management with a copper-core circuit board and passive pin-fin heatsink, all finished for a sleek, modern look.

      _x000D__x000D_

      Installation. The flush mount design allows for straightforward installation on flat surfaces without extensive modifications. Installation typically takes 30-60 minutes with basic hand tools and requires minimal drilling.

      _x000D__x000D_

      Warranty. This product is backed by a limited lifetime warranty ensuring long-term reliability and performance.

      _x000D__x000D_

      Application. Fits universal applications; some adaptation may be required for specific mounting locations or vehicle configurations.

      Diode Dynamics DD8122S
