Find Light Bars & Off-Road Lighting for your Sierra 3500

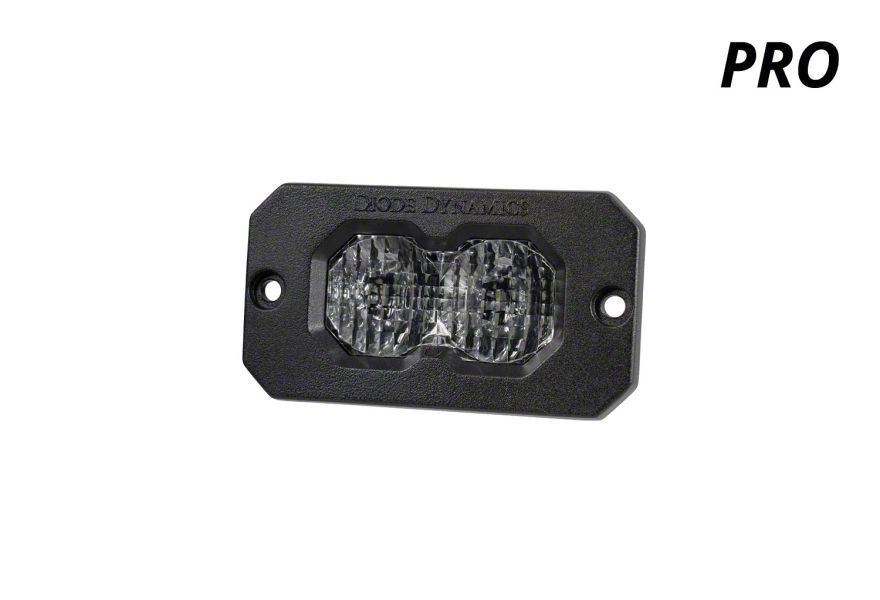

Diode Dynamics Stage Series C2 2.0 Pro Flush Mount LED Pod Light with Red Backlight; White Flood (Universal; Some Adaptation May Be Required)
Item SHG65218
Our Price
$169.95
Military, Medical & First Responders
$8.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output and Reduced Glare _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Re-Engineered Copper-Core Circuit Board Bonded Directly to LED Chips for Improved Thermal Efficiency _x000D_
- Powdercoated Aluminum Housing Redesigned for Enhanced Heat Dissipation _x000D_
- Swappable Optics and Colors with High-Output LED Chips for White and Yellow Options _x000D_
- Red Backlight Feature Illuminates TIR Optic for Unique Accent Lighting _x000D_
- Multiple Beam Patterns Available Including Combo/Driving and Flood _x000D_
- Deutsch-Style Wire Pigtail Included _x000D_
- Mounting Bracket and Hardware Included _x000D_
- Operates Within -40°C to 85°C Temperature Range _x000D_
- Waterproof IP69K Rated With High-Pressure Resistance _x000D_
- Passive Cooling With Pin-Fin Heatsink _x000D_
- Polarity Specific _x000D_
- Operating Voltage 9-30V _x000D_
- Made Using Polycarbonate Lens, Aluminum Casting, and Rubber Gasket _x000D_
- Compact Dimensions: 2.5 × 4.5 × 2.4 Inches _x000D_
- Unit Weight: 0.55 Pounds _x000D_
- Raw Lumens Up to 3960 Depending on Model _x000D_
- Peak Beam Intensity Up to 23000 Candela for Combo Max Model _x000D_
- Output Color 6000K White _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
Advanced Lighting Solution. The Diode Dynamics Stage Series C2 2.0 Pro Flush Mount LED Pod Light with Red Backlight and White Flood delivers exceptional illumination for automotive applications requiring compact, high-performance lighting. It provides focused, powerful light output suitable for tight mounting areas such as bumpers, cargo racks, or trailers. This versatile pod enhances visibility and safety, while its modular design allows easy customization to fit various lighting needs.
_x000D_Construction and Appearance. Crafted with a powdercoated aluminum housing designed for superior heat dissipation, the unit features a durable polycarbonate lens and a rubber gasket for weatherproof sealing. The LEDs are mounted on a copper-core circuit board for optimal thermal management, ensuring longevity and consistent performance. The distinctive red backlight adds a modern accent by fully illuminating the optic.
_x000D_Installation. Installation is straightforward with basic tools and requires no complex modifications, though minor adaptations may be needed depending on the mounting surface. The flush mount kit provides a clean, low-profile appearance while securely protecting the pod.
_x000D_Warranty. This product comes with a limited lifetime warranty that guarantees quality and reliability over extended use.
_x000D_Application. Fits universal applications; some adaptation may be required for precise mounting or integration with existing systems.
Diode Dynamics DD8124S
