Find Light Bars & Off-Road Lighting for your Sierra 3500

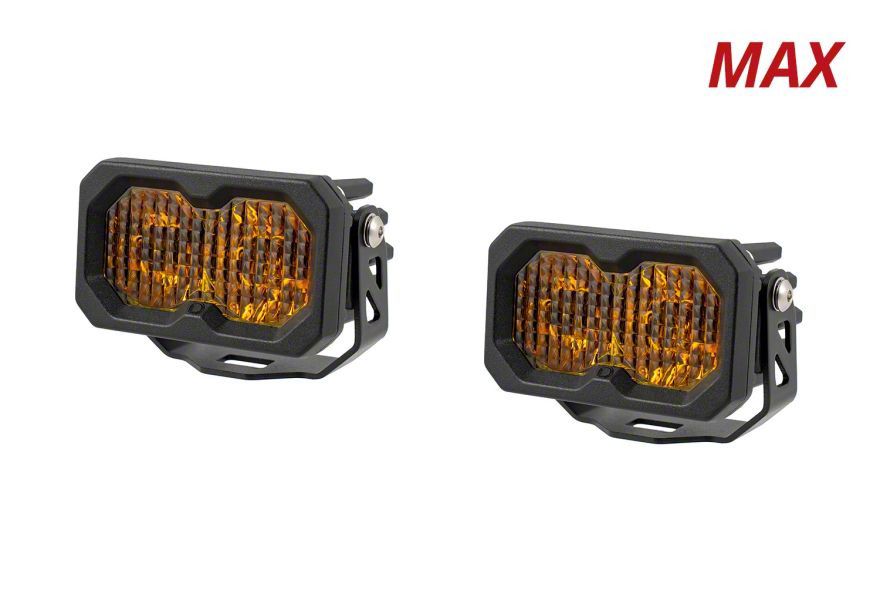

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Lights with Amber Backlight; Yellow Combo/Driving (Universal; Some Adaptation May Be Required)
Item SHG65197
Our Price
$479.95
Military, Medical & First Responders
$24.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design For Tight Mounting Spots _x000D_
- Patented TIR Optics For Maximum Output _x000D_
- Up To 95% More Power Than C2 1.0 _x000D_
- Available In Sport, Pro, And New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting To Dial In Your Setup _x000D_
- Link Multiple Pods With CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made In USA With Global Materials _x000D_
- Raw Lumens: 3,960 Lm _x000D_
- Color Temp (CCT): 3000K _x000D_
- Power (Watts): Main Beam: 30, Backlight: 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam: 2.3, Backlight: 0.03 _x000D_
- Polarity: Polarity Specific _x000D_
- Operating Temperature: -40C To 85C (-40F To 185F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector(s): Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure _x000D_
- Product Dimensions (In): 2 X 3.3 X 2.4 _x000D_
- Unit Weight (Lb): 0.55 _x000D_
- Product Weight (Lb): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
Advanced LED Lighting. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Lights with Amber Backlight; Yellow Combo/Driving deliver exceptional illumination in a compact two-inch pod. Designed for tight mounting locations, these pods provide precise lighting ideal for various applications, enhancing visibility and safety in challenging conditions.
_x000D__x000D_Construction and Appearance. Built with a durable powder-coated aluminum housing and polycarbonate lens, these pods utilize a copper-core circuit board directly bonded to the LED chips to ensure superior thermal management. The Amber Backlight accentuates the patented TIR optic, offering a modern and distinctive look with high-quality materials that guarantee reliability and longevity.
_x000D__x000D_Installation. Installation is straightforward and generally takes 30 to 60 minutes using basic tools. No drilling is required for mounting adjustments, as the pods come with adjustable mounting brackets allowing a precise and customizable fit.
_x000D__x000D_Warranty. These LED pods include a limited lifetime warranty, supporting long-term use and dependability.
_x000D__x000D_Application. Fits universally with some adaptation required, suitable for various mounting locations including roof racks, roll bars, bumpers, and A-pillars, accommodating custom lighting setups.
