Installation Time
(approx) 2 Hours
Difficulty Level:
Light to Moderate mechanical skill required.
Installation Guides
No guide available for this part yet.
FREE 1 to 3-Day Delivery on Orders $149+ Details

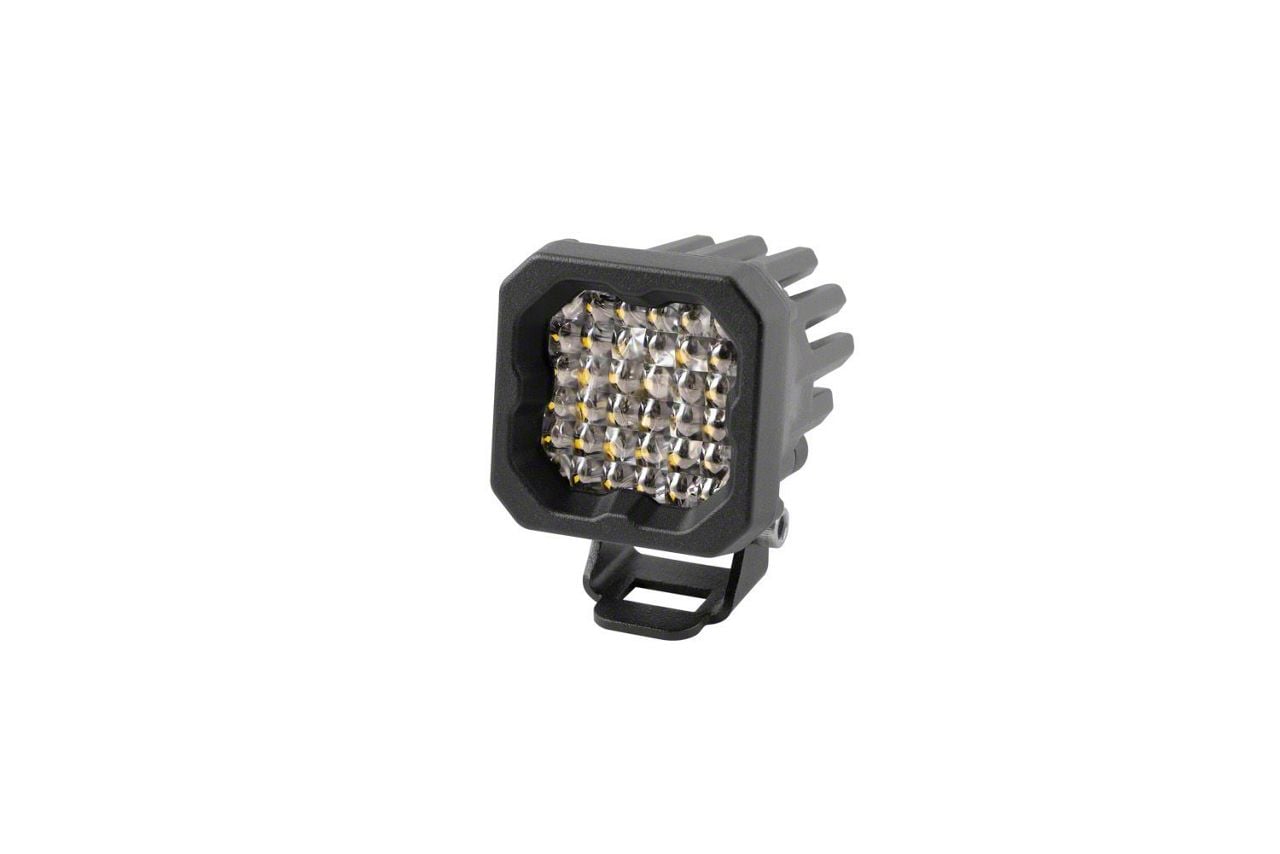

Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood (Universal; Some Adaptation May Be Required)
Item R144086
Our Price
$159.95 each
Military, Medical & First Responders
$8.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- Ultra-Compact, Single-LED Form Factor
- Triple Function: High-Power White Main Beam, High-Power Red Main Beam, and Low-Power Red Accent Light
- Pin-Fin Heatsink Design for Superior Thermal Dissipation
- Integrated Deutsch-Style Connector for Secure and Weatherproof Connection
- Designed, Torture-Tested, and Assembled in USA
- Custom-Engineered TIR Optics Provide Focused and Uniform Light Output
- Flood Beam Pattern with 50x50 Degree Spread for Wide Illumination
- Compatible with Standard, Flush-Mount, and GoPro-Style Mounting Systems
- Interchangeable Lenses Allow Changing Color or Beam Pattern
- Wiring Includes Red for White Main Beam, Yellow for High-Power Red Beam, Blue for Low-Power Red Accent, and Black for Ground
- Operating Voltage Range 9-16V with Constant Current Driver
- Materials Include Polycarbonate Lens, Aluminum Casting, and Rubber Gasket
- Passive Cooling via Pin-Fin Heatsink
- IP69K Waterproof Rating and SAE J575 Durability Compliant
- Raw Lumens Output of 1450 LM at 6000K Color Temperature
- Operating Temperature from -40°C to 85°C (-40°F to 185°F)
- Weight Approximately 0.4 Pounds Shipped
- Includes One LED Pod, Deutsch-Style Wire Pigtail, Mounting Bracket, and Hardware
- Lifetime Limited Warranty Included
- Fits Universal; Some Adaptation May Be Required
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance LED Pod. The Diode Dynamics Stage Series C1R Standard LED Pod Light; White Flood is a versatile, ultra-compact auxiliary lighting solution designed to deliver high-intensity illumination with exceptional beam control. It is ideal for mounting in tight spaces on a variety of vehicles, enhancing visibility for reverse, brake, or running light applications while reducing glare and improving efficiency.
Construction and Appearance. This LED pod features a rugged aluminum housing with a pin-fin heatsink for optimized thermal management and a durable polycarbonate lens serving as both the optic and protective element. The integrated Deutsch-style connector ensures a secure, weatherproof electrical connection, while the overall design is built to withstand harsh environments, meeting IP69K waterproof standards and SAE J575 durability tests.
Installation. Installation is straightforward, requiring basic tools and no complex modifications in most cases. The pod supports multiple mounting options, including standard, flush, and GoPro-style mounts, allowing versatile placement with minimal adaptation.
Warranty. A lifetime limited warranty backs the product, offering long-term confidence in quality and performance.
Application. Fits universal; some adaptation may be required.
Diode Dynamics DD7423S
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) Stage Series C1R Standard LED Pod Lights
- (1) Wiring Harness with Deutsch DT connectors
- (2) Mounting Brackets
- (4) Stainless Steel Mounting Clamps
