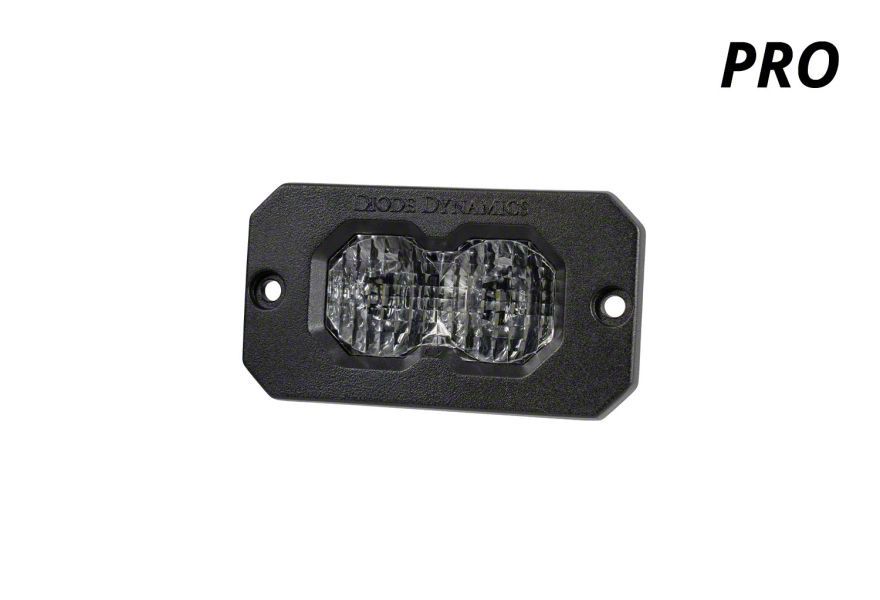

Diode Dynamics Stage Series C2 2.0 Pro Flush Mount LED Pod Light with Red Backlight; White Flood (Universal; Some Adaptation May Be Required)
Item R209113
Our Price
$169.95
Military, Medical & First Responders
$8.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented TIR Optics for Maximum Output _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and 3900-Lumen Max Power Levels _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Re-Engineered Copper-Core Circuit Board for Improved Thermal Efficiency _x000D_
- Powdercoated Aluminum Housing Designed for Enhanced Heat Dissipation _x000D_
- Interchangeable Optically-Designed Lenses with Swappable Colors _x000D_
- Backlight Functionality with Red Accent Light Fully Illuminating the Optic _x000D_
- Patented TIR Optics Deliver Up to 120% More Intensity _x000D_
- Multiple Beam Patterns Fine-Tuned for Real-World Conditions _x000D_
- Flood Pattern Provides a True Optically Designed Spread _x000D_
- Combo/Driving Pattern Offers a Rectangular 55x20 Degree Beam _x000D_
- Raw Output Up to 3,960 Lumens _x000D_
- Operating Voltage Range 9-30V _x000D_
- Operating Temperature from -40°C to 85°C (-40°F to 185°F) _x000D_
- IP69K Waterproof and High-Pressure Resistant _x000D_
- Dimensions: 2.5 x 4.5 x 2.4 Inches _x000D_
- Unit Weight: 0.55 lbs; Product Weight: 1.4 lbs _x000D_
- Connector Uses Deutsch DT Input _x000D_
- Constant Current Driver _x000D_
- Polycarbonate Lens with Aluminum Casting and Rubber Gasket _x000D_
- Passive Cooling with Pin-Fin Heatsink _x000D_
- Compliant with SAE J575 Durability Test Standards _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 4 to 4.75 Inch |
Description
ADVANCED LED POD LIGHTING. The Diode Dynamics Stage Series C2 2.0 Pro Flush Mount LED Pod Light with Red Backlight; White Flood is engineered to deliver superior illumination in a compact, low-profile design. Ideal for bumpers, cargo areas, trailers, or roof racks, it enhances visibility and safety with precision-engineered optics that focus light where it is needed. This pod offers powerful flood lighting with a modern red backlight for added functionality and aesthetic appeal.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. Built with a durable powdercoated aluminum housing and a polycarbonate lens, this LED pod features a copper-core circuit board for optimal thermal management. The housing is designed for enhanced heat dissipation, ensuring long-lasting performance. The exterior finish is rugged and weather-resistant, and it includes a red backlight feature that fully illuminates the patented TIR optic, creating a distinctive and modern look.
_x000D__x000D_INSTALLATION. Installation is straightforward and typically requires 30 to 60 minutes using basic tools. The included flush mount kit allows for a clean, low-profile installation on any flat surface, though some adaptation may be necessary to fit different mounting locations.
_x000D__x000D_WARRANTY. This product includes a limited lifetime warranty that covers defects and ensures long-term reliability.
_x000D__x000D_APPLICATION. Fits universal applications; some adaptation may be required for proper mounting and wiring configurations to accommodate various vehicle setups.
Diode Dynamics DD8124S
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
