Find Light Bars & Off-Road Lighting for your Ram 1500

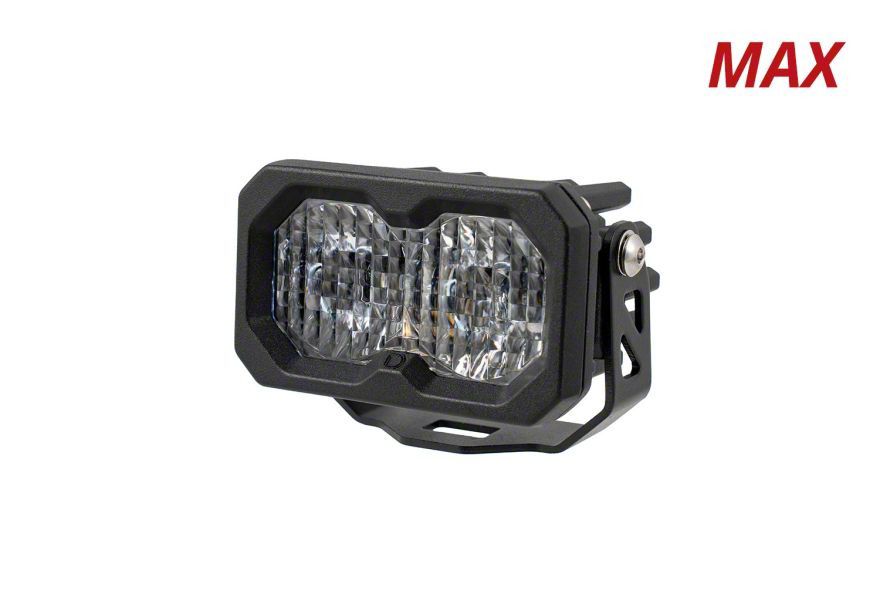

Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Combo/Driving (Universal; Some Adaptation May Be Required)
Item R209091
Our Price
$239.95
Military, Medical & First Responders
$12.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Ultra-Compact Design for Tight Mounting Spots _x000D_
- Patented Total Internal Reflection (TIR) Optics for Maximum Output _x000D_
- Up to 95% More Power Than C2 1.0 _x000D_
- Available in Sport, Pro, and New 3900-Lumen Max Power Levels _x000D_
- Customizable Mounting to Dial in Your Setup _x000D_
- Link Multiple Pods with CrossLink Technology _x000D_
- Limited Lifetime Warranty _x000D_
- Made in USA with Global Materials _x000D_
- Raw Lumens: 3,960 lm _x000D_
- Color Temperature: 6000K _x000D_
- Power (Watts): Main Beam 30, Backlight 0.38 _x000D_
- Operating Voltage: 9-30V _x000D_
- Current (Amps @ 12.8V): Main Beam 2.3, Backlight 0.03 _x000D_
- Polarity Specific _x000D_
- Operating Temperature: -40°C to 85°C (-40°F to 185°F) _x000D_
- LED Emitter: Osram Boost HX _x000D_
- Connector: Deutsch DT Input _x000D_
- Driver Features: Constant Current _x000D_
- Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket _x000D_
- Cooling: Passive, Pin-Fin Heatsink _x000D_
- Compliance Ratings: SAE J575 Durability Test _x000D_
- Intrusion Ratings: IP69K Waterproof, High Pressure Resistant _x000D_
- Product Dimensions (In): 2 x 3.3 x 2.4 _x000D_
- Unit Weight (Lb): 0.55 _x000D_
- Product Weight (Lb): 1.4 _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Diode Dynamics |
| Bulb Type | LED |
| Light Shape | Rectangle |
| Light Size | 3 to 3.75 Inch |
Description
HIGH-PERFORMANCE LED LIGHTING. The Diode Dynamics Stage Series C2 2.0 Max Standard LED Pod Light with Red Backlight; White Combo/Driving is engineered to deliver superior illumination in compact spaces. Producing 3,960 raw lumens with patented optics, this pod enhances visibility on a wide range of vehicles and is ideal for off-road and auxiliary lighting applications.
_x000D__x000D_CONSTRUCTION AND APPEARANCE. This LED pod combines a durable polycarbonate lens with a powder-coated aluminum housing featuring a corrosion-resistant texture. The internal copper-core circuit board with Osram Boost HX LED emitters ensures exceptional thermal management, complemented by a passive pin-fin heatsink for efficient heat dissipation.
_x000D__x000D_INSTALLATION. Installation is straightforward, typically taking 30 to 60 minutes using standard tools, with no complex drilling required. The modular mounting system allows for precise adjustments to fit tight or custom locations.
_x000D__x000D_WARRANTY. The product includes a limited lifetime warranty that guarantees quality and reliable performance throughout its lifespan.
_x000D__x000D_APPLICATION. Designed for universal fitment; some adaptation may be necessary.
Diode Dynamics DD8113S
