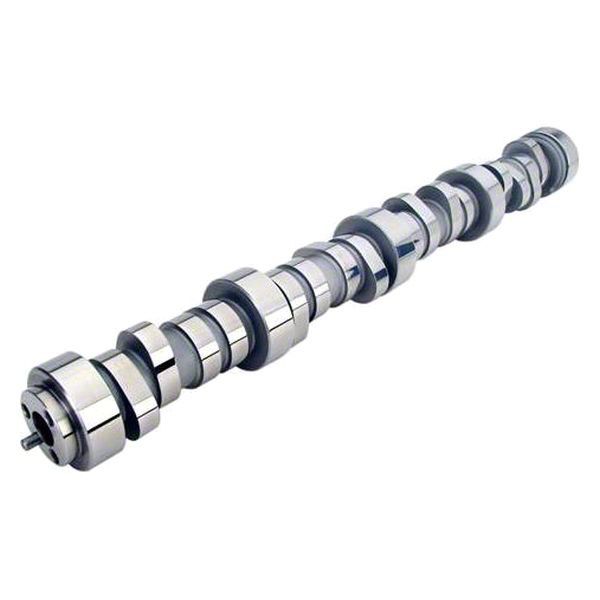

Comp Cams LSR Rectangular Port 235/251 Hydraulic Roller Camshaft (10-19 6.0L Sierra 3500 HD)Find parts that fit my vehicle

Item SHG28746
Product Image
Sale
361 Reviews of Comp Cams
On Sale

-25% $404.95 Was $541.95

Military, Medical & First Responders $20.25 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • Hydraulic Roller Camshaft Delivers Strong Mid-Range To High-End Torque And Horsepower For LS Engines With Rectangular Port Cylinder Heads
        • _x000D_
      • Manufacturer: Comp Cams
        • _x000D_
      • Warranty: 12 Months
        • _x000D_
      • Engine Family: GM LS GEN III/IV 3-Bolt 8 Cylinder 1997-2015
        • _x000D_
      • RPM Operating Range: 2,200-7,200
        • _x000D_
      • Cam Type: Hydraulic Roller
        • _x000D_
      • Camshaft Series: LSR Rectangular Port All Out Power
        • _x000D_
      • Camshaft Gear Attachment: 3-Bolt
        • _x000D_
      • Advertised Intake Duration: 285
        • _x000D_
      • Advertised Exhaust Duration: 301
        • _x000D_
      • Intake Duration At .050 Inch Lift: 235
        • _x000D_
      • Exhaust Duration At .050 Inch Lift: 251
        • _x000D_
      • Intake Valve Lift: 0.621
        • _x000D_
      • Exhaust Valve Lift: 0.624
        • _x000D_
      • Lobe Lift Intake: 0.365
        • _x000D_
      • Lobe Lift Exhaust: 0.367
        • _x000D_
      • Lobe Separation Angle: 113
        • _x000D_
      • Intake Centerline: 109
        • _x000D_
      • Valve Timing Lift: 0.006
        • _x000D_
      • Exhaust Close ATDC: 34
        • _x000D_
      • Intake Open BTDC: 32
        • _x000D_
      • Exhaust Open BBDC: 86
        • _x000D_
      • Intake Close ABDC: 72
        • _x000D_
      • Make: GM
        • _x000D_
      • Lifter Type: Hydraulic Roller
        • _x000D_
      • Usage: Street / Strip
        • _x000D_
      • Performance Package: No
        • _x000D_
      • Fits 10-19 6.0L Sierra 3500 HD
        • _x000D_

      Description

      High Performance Camshaft. The Comp Cams LSR Rectangular Port 235/251 Hydraulic Roller Camshaft is engineered to provide strong mid-range to high-end torque and horsepower for LS engines equipped with rectangular port cylinder heads. Designed specifically for GM LS GEN III/IV 3-bolt 8-cylinder engines produced between 1997 and 2015, this camshaft enhances engine performance for both street and strip applications.

      _x000D_

      Construction and Durability. Featuring hydraulic roller lifters and a 3-bolt gear attachment, this camshaft ensures durability and compatibility with specified GM engines. Precision ground from high-quality materials, it is built to deliver smooth operation and reliable performance under demanding conditions.

      _x000D_

      Installation. Installation requires moderate mechanical skill and does not involve drilling or major modifications. It is designed for direct fitment into compatible engines, allowing for straightforward replacement of the stock camshaft.

      _x000D_

      Warranty. This product includes a 12-month warranty that covers defects in materials and workmanship.

      _x000D_

      Application. Specifically engineered to fit the 2010-2019 6.0L Sierra 3500 HD without exceptions or special fitment notes.

      Comp Cams 54-470-11

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      4.7

      Reviews of Comp Cams Engine Products (361)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Sierra 3500

      • 6.0L V8 - 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
