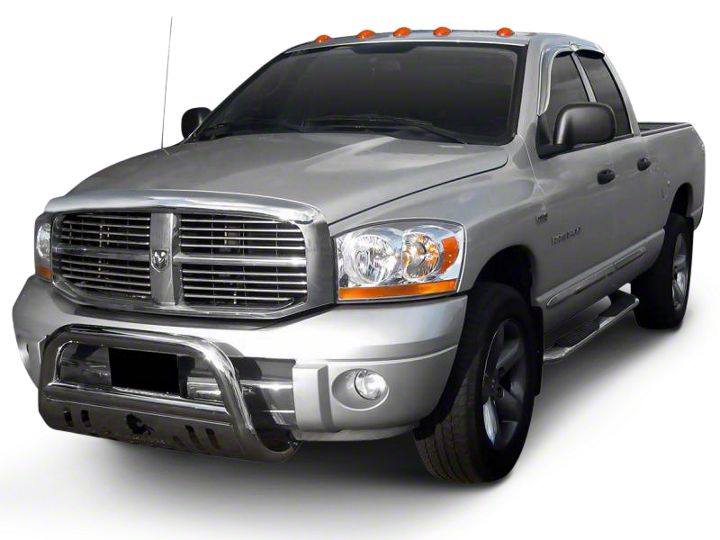

How to Install Black Horse Off Road Bull Bar - Stainless (06-08 All) on your Dodge RAM

(1) – BULL BAR
(2) – BRACKETS (DRIVER/PASSENGER SIDE)
(6) – 7/16 X 1 1/4 HEX HEAD BOLTS (M10X30MM)
(6) – 7/16 HEX HEAD NUTS
(6) – 7/16 LOCK WASHERS
(12) – 7/16 FLAT WASHERS

1 - REMOVE CONTENTS FROM BOX AND CHECK FOR DAMAGE. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS CAREFULLY.

2 - REMOVE LOWER URETHANE VALANCE LOCATED UNDERNEATH FRONT BUMPER TEMPORARILY AND SET ASIDE.

3 - UNBOLT (2) EXISTING NUTS LOCATED ON OUTER SIDE OF FRAME RAIL (PASSENGER SIDE SHOWN) INSTALL LOWER BRACKET ONTO FRAME RAIL BOLTS *LEAVE LOOSE* (SEE FIG # 1)

4 - REPEAT PROCEDURE #3 ON OPPOSITE SIDE

5- INSTALL BULL BAR USING 6 - 7/16 X 1 1/4 HEX HEAD BOLTS, 6 - 7/16 HEX HEAD NUTS,  12 - 7/16 FLAT WASHERS (6) - 7/16 LOCK WASHERS *LEAVE LOOSE* (SEE FIG # 1)  6 - LEVEL AND ADJUST BULL BAR AS DESIRED. TIGHTEN & TORQUE BOLTS

7 - MEASURE AND TRIM LOWER URETHANE VALANCE AS DESIRED. REINSTALL VALANCE ON TO FRONT BUMPER.
