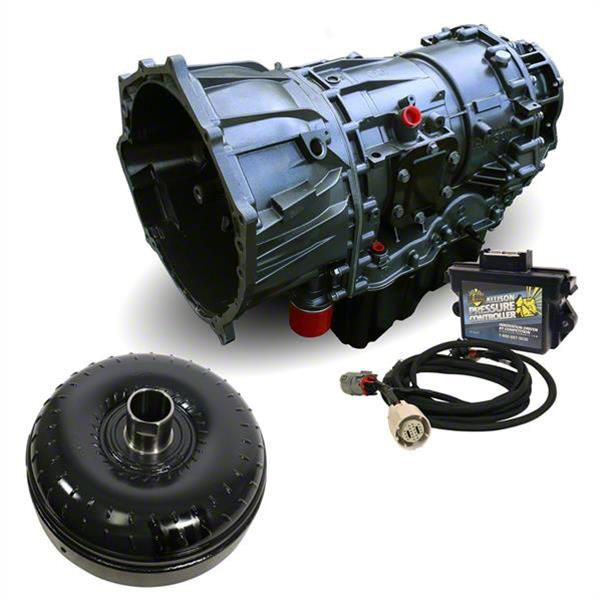

BD Power Allison Transmission and Converter Package with Stage 4 Stock Input Shaft and Proforce 3D Converter; $2100 Core Charge Included (11-16 4WD 6.6L Duramax Sierra 3500 HD)Find parts that fit my vehicle

Item SHG25285
Product Image
5 Reviews of BD Power
Our Price

$8,149.95 kit

Military, Medical & First Responders $407.50 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Increase The Durability Of Your Drivetrain
        • _x000D_
      • BD Aluminum HD Deep Transmission Pan, Increases Oil Capacity By 3.5qt
        • _x000D_
      • Comes With BD Allison Pressure Box Delivering Up To 275PSI Of Line Pressure
        • _x000D_
      • High Energy Frictions
        • _x000D_
      • Increase In Steel Mass For Better Heat Dissipation
        • _x000D_
      • Increased Clutch Count
        • _x000D_
      • Clutch Count: C1 8 Clutches (14% Increase Over Stock)
        • _x000D_
      • Clutch Count: C2 7 Clutches (17% Increase Over Stock)
        • _x000D_
      • Clutch Count: C3 7 Clutches (75% Increase Over Stock)
        • _x000D_
      • Clutch Count: C4 7 Clutches (17% Increase Over Stock)
        • _x000D_
      • Clutch Count: C5 7 Clutches (17% Increase Over Stock)
        • _x000D_
      • Each Transmission Is Dyno Tested
        • _x000D_
      • Enhanced Stall - Street/Towing Applications
        • _x000D_
      • HD Springs Absorb Shock Of Engagement
        • _x000D_
      • Stamp Forged 1-Piece Cover
        • _x000D_
      • Eliminates Warpage From Clutch Heat
        • _x000D_
      • Taller Cover Can Be Rebuilt More Often
        • _x000D_
      • Trapezoid Teeth Design
        • _x000D_
      • Engineered Tighter Tolerances
        • _x000D_
      • Self-Centering Trapezoid Teeth Design Increases Contact, Decreases Wear And Chatter
        • _x000D_
      • Thrust Bearings - Not Plastic Thrust Washers
        • _x000D_
      • Riveted Piston Ensures Alignment & Eliminates Vibration Or Embrittlement From Welding
        • _x000D_
      • Cast Stator Designs Maximize Torque
        • _x000D_
      • New Sprag Components Ensure Long Term Durability
        • _x000D_
      • Furnaced Brazed Turbine Fins For Improved Fluid Coupling Efficiency
        • _x000D_
      • Reduced Overall Weight By 12lbs Compared To Competitors
        • _x000D_
      • Utilizes A New Double Cage Stator Sprag For Increased Strength, Reduces Common Stator Failures With The OE Design
        • _x000D_
      • Fits 2011-2016 4WD 6.6L Duramax Sierra 3500 HD
        • _x000D_

      Description

      Matched Transmission Package. The BD Power Allison Transmission and Converter Package with Stage 4 Stock Input Shaft and Proforce 3D Converter, including a $2100 core charge, is a comprehensive drivetrain upgrade designed to increase durability and handle high torque demands. This package includes a dyno-tested transmission and torque converter matched for superior performance, ideal for towing, street use, or track applications.

      _x000D__x000D_

      Construction and Appearance. Built with a BD aluminum heavy-duty deep transmission pan to add 3.5 quarts of increased oil capacity, the transmission features high energy friction materials and increased steel mass for enhanced heat dissipation. The torque converter uses a stamp forged one-piece cover designed to prevent warpage, incorporates HD springs, self-centering trapezoid teeth for reduced wear and chatter, and advanced internal components for improved durability and efficiency.

      _x000D__x000D_

      Installation. Installation requires approximately nine hours and involves no significant modifications such as drilling, making it suitable for experienced automotive technicians or enthusiasts familiar with transmission work.

      _x000D__x000D_

      Warranty. This package carries a 36-month/150,000-mile warranty on parts and a 12-month/24,000-mile warranty on labor, with exclusions for race abuse.
      _x000D_Application. Specifically designed to fit the 2011-2016 4WD 6.6L Duramax Sierra 3500 HD.

      BD Power 1064754SM

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) a Day

      Difficulty Level:

      Mechanical expertise or professional installation required.

      Installation Guides

      What's in the Box

      • (1) Allison Transmission and Converter Package
      4.7

      Reviews of BD Power Drivetrain Products (5)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Sierra 3500

      • 6.6L V8 Duramax - 11, 12, 13, 14, 15, 16
