Find Transmission & Transfer Case for your Sierra 3500

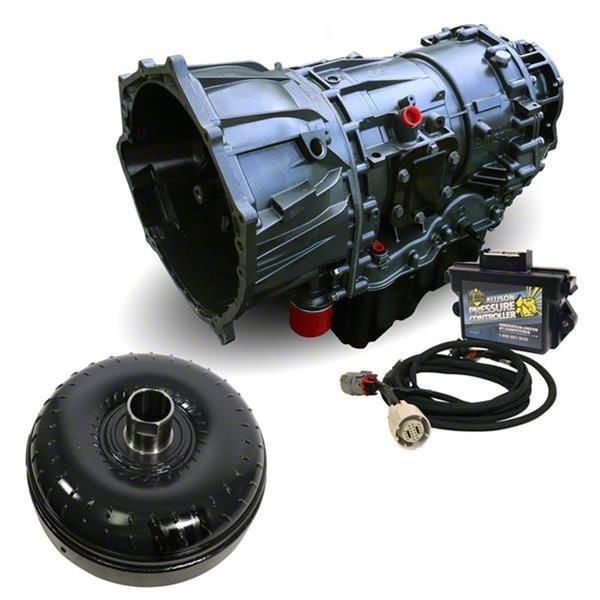

BD Power Allison Transmission and Converter Package with Stage 5 Billet Input Shaft and Proforce 3D Converter; $2100 Core Charge Included (11-16 4WD 6.6L Duramax Sierra 3500 HD)Find parts that fit my vehicle

Item SHG25284
Product Image
5 Reviews of BD Power
Our Price

$9,336.95 kit

Military, Medical & First Responders $466.85 Available in AT Cash Rewards.
Confirm Eligibility

CONFIRM THIS FITS YOUR VEHICLE!

Select a different vehicle Help?
Update or Change Vehicle
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features

        _x000D_
      • Increase The Durability Of Your Drivetrain
        • _x000D_
      • BD Aluminum HD Deep Transmission Pan, Increases Oil Capacity By 3.5qt
        • _x000D_
      • Comes With BD Allison Pressure Box Delivering Up To 275PSI Of Line Pressure
        • _x000D_
      • High Energy Frictions
        • _x000D_
      • Increase In Steel Mass For Better Heat Dissipation
        • _x000D_
      • Increased Clutch Count
        • _x000D_
      • Clutch Count: C1 8 Clutches (14% Increase Over Stock)
        • _x000D_
      • Clutch Count: C2 7 Clutches (17% Increase Over Stock)
        • _x000D_
      • Clutch Count: C3 7 Clutches (75% Increase Over Stock)
        • _x000D_
      • Clutch Count: C4 7 Clutches (17% Increase Over Stock)
        • _x000D_
      • Clutch Count: C5 7 Clutches (17% Increase Over Stock)
        • _x000D_
      • Each Transmission Is Dyno Tested
        • _x000D_
      • Billet Input Shaft To Take The Snap From Rapid Throttle And High Horsepower
        • _x000D_
      • Triple Disc Torque Converter
        • _x000D_
      • Enhanced Stall For Street/Towing Applications
        • _x000D_
      • Heavy Duty Springs Absorb Shock Of Engagement
        • _x000D_
      • Stamp Forged 1-Piece Cover
        • _x000D_
      • Eliminates Warpage From Clutch Heat
        • _x000D_
      • Taller Cover Can Be Rebuilt More Often
        • _x000D_
      • Self-Centering Trapezoid Teeth Design Increases Contact, Decreases Wear And Chatter
        • _x000D_
      • Thrust Bearings Instead Of Plastic Thrust Washers
        • _x000D_
      • Riveted Piston Ensures Alignment & Eliminates Vibration Or Embrittlement From Welding
        • _x000D_
      • Cast Stator Design Maximizes Torque
        • _x000D_
      • New Sprag Components Ensure Long Term Durability
        • _x000D_
      • Furnaced Brazed Turbine Fins For Improved Fluid Coupling Efficiency
        • _x000D_
      • Reduced Overall Weight By 12lbs Compared To Competitors
        • _x000D_
      • Utilizes A New Double Cage Stator Sprag For Increased Strength, Reduces Common Stator Failures With The OE Design
        • _x000D_
      • Fits 11-16 4WD 6.6L Duramax Sierra 3500 HD
        • _x000D_

      Description

      Heavy-Duty Transmission Package. The BD Power Allison Transmission and Converter Package with Stage 5 Billet Input Shaft and Proforce 3D Converter, including a $2100 core charge, offers a matched transmission and torque converter set engineered for high performance and enhanced durability. It delivers increased clutch capacity, superior line pressure, and optimized torque conversion, making it ideal for towing, street, or track applications.

      _x000D__x000D_

      Construction and Appearance. Featuring an aluminum HD deep transmission pan that increases oil capacity by 3.5 quarts, the transmission incorporates high-energy friction components and a billet input shaft to withstand rapid throttle changes and high horsepower. The triple-disc torque converter includes a stamp-forged one-piece cover, heavy-duty springs to absorb engagement shocks, and a self-centering trapezoid teeth design that reduces wear and chatter. Additional durability is achieved through increased steel mass for better heat dissipation, thrust bearings replacing plastic thrust washers, a riveted piston for improved alignment, cast stator design for maximum torque, furnace-brazed turbine fins for fluid coupling efficiency, and a new double cage stator sprag to reduce common stator failures and increase strength.

      _x000D__x000D_

      Installation. Installation takes approximately 9 hours and fits directly, requiring no drilling or modification. This ensures straightforward replacement for the specified vehicle application.

      _x000D__x000D_

      Warranty. Comes with a 36-month or 150,000-mile warranty on parts and 12-month or 24,000-mile labor coverage, excluding damage from race abuse.

      _x000D__x000D_

      Application. Specifically designed to fit 2011 to 2016 4WD 6.6L Duramax Sierra 3500 HD models, ensuring precise compatibility with no exclusions.

      BD Power 1064754BM

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 4 Hours

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) Allison Transmission and Converter Package
      • (1) Input Shaft
      • (1) Transmission Pan
      • (1) 3D Converter
      4.7

      Reviews of BD Power Drivetrain Products (5)

      Questions & Answers

      No questions about this product yet. Ask the First Question

      Will It Fit My Sierra 3500

      • 6.6L V8 Duramax - 11, 12, 13, 14, 15, 16
