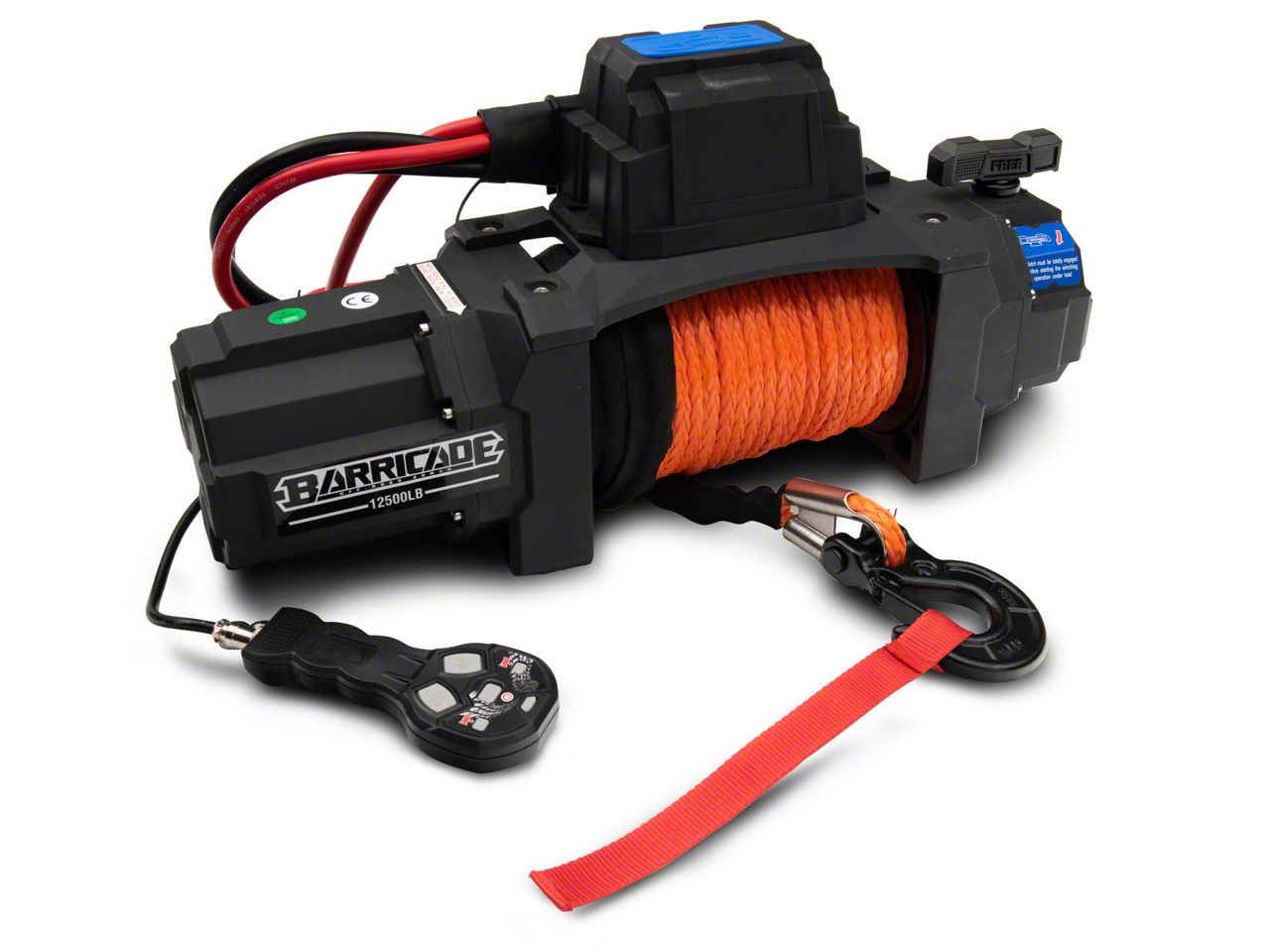

Barricade 12,500 lb. HD Winch with Synthetic Rope and Wireless Control (Universal; Some Adaptation May Be Required)

Item R122746
Our Price

$729.99 kit

Military, Medical & First Responders $73.00 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

      • 12,500 lb. Single-Line Pulling Rating
      • 6.6 HP 12-Volt Series Wound Electric Motor
      • Three Stage Planetary Gear with 216:1 Gear Ratio
      • Bright Orange Synthetic Rope - 85 Foot
      • Wireless Remote
      • Durable Black Powder Coat Finish
      • Overall Dimensions: 21.17 x 6.38 x 7.72 Inches
      • Mounting Bolt Pattern: 254mm x 114.3mm
      • Weight: 66 Pounds
      • Winch Cover Not Included - Sold Separately
      • Universal Application - Fits all RAM 1500 Models

      Description

      Be Prepared. Whether you are a novice or a serious off-roader, you should take a page out of the Scout's hand book and "be prepared" for what the trail might throw at you. That's why you should outfit your rig with a reliable recovery system like Barricade Off-Road's 12,500 lb Heavy Duty Winch. This Barricade Winch will help you to get out of the messiest situations.

      Heavy Duty 12,500 Pound Winch. This Barricade Off-Road Winch is driven by a powerful 6.6 horsepower series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 216:1 gear ratio, this Barricade Winch provides 12,500 pounds of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

      Additional Features. This Barricade Off-Road 12,500 pound Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the included bright orange synthetic rope while also keeping it from binding. This Barricade Winch also includes a wirless remote control allowing you to safely stand clear when in operation.

      Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 22.17 × 6.38 × 7.72 inches and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.

      Application. This Barricade 12,500 Pound HD Winch with Synthetic Rope and Wireless Control features a universal designed allowing for use on all RAM 1500 models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

      Line Pull Speeds
      • 0 pounds - 33 feet per minute
      • 4,000 pounds - 15.1 feet per minute
      • 6,000 pounds - 13.1 feet per minute
      • 9,500 pounds - 10.5 feet per minute
      • 12,500 pounds - 9.2 feet per minute

      Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, this winch requires a cover when not in use. Winch cover not included - sold separately.

      • Replacement Hardware – SKU U11219H

      Barricade U10189

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Simple installation for anyone.

      Installation Guides

      What's in the Box

      • (1) Hexagon screw
      • (1) Spring washer M5
      • (1) Clutch handle
      • (1) Nut cap
      • (1) Cup gasket
      • (1) Spring washer Φ20
      • (2) O-ring
      • (1) Gear box housing
      • (1) Shaft sleeve
      • (1) Sun gear
      • (1) 3rd Planetary gear assy
      • (1) Dual inner gear
      • (1) 2nd Planetary gear assy
      • (1) 1st Planetary gear assy
      • (1) Sealing washer
      • (4) Hexagon screw M8x25
      • (4) Spring washer Φ8
      • (1) Gear box bracket
      • (10) Spring washer Φ4
      • (10) Hexagon screw M4x20
      • (2) Bearing bush
      • (2) Sealing washer
      • (1) Transmission shaft
      • (1) Drum assembly
      • (1) Brake assembly
      • (2) Tie bar
      • (1) Motor assembly
      • (4) Cross Recess Head Screw M4.2X12
      • (2) Mounting bracket assembly for control box
      • (1) Control box assembly
      • (1) Fairlead
      • (1) 3/8" Hook
      • (1) Wired remote control
      • (1) Battery negative (-) cord 1.8M
      • (1) Wireless remote control (Optional)
      • (1) 0.75mm² brown switch control wire
      • (1) 0.75mm² red switch control wire
      • (1) 0.75mm² yellow switch control wire
      • (1) 0.75mm² yellow remote control wire
      • (1) 0.75mm² white remote control wire
      • (1) 0.75mm² red remote control battery "+"
      • (1) 0.75mm² black remote control battery "-"
      • (1) Green antenna
      • (1) 0.4m short Black Cable with Yellow Terminal Sleeve
      • (1) 1.8m long red battery cable "+"
      • (1) 0.4m black motor cable with black sleeve
      • (1) Black Cable with Black Sleeve (0.75mmx0.45m;earth)
      • (1) 0.4m Short Red Cable with Red Terminal Sleeve
      • (1) Receiver for remote
      • (1) U Type Strap-Aluminum
      • (1) Solenoid 12V
      • (1) Solenoid 24V
      • (Provided) 3/8"UNC x 1-1/4" stainless steel bolts
      • (Provided) Spring washers
      • (Recommended) Loctite 7471 Primer and 222 Thread locker

      Warranty

      Barricade offers our valued customers the following Limited Warranty on all Barricade product purchased after September 1st, 2026.

      What is Covered Subject to the terms, exclusions and limitations herein, and with respect only to products first sold in the United States, Barricade warrants that its products shall be free of manufacturing defects for five (5) years and finish defects, including rust & corrosion, for three (3) years from the date of initial retail purchase when the Barricade product is installed and used on purchaser’s vehicle according to supplied product installation instructions and/or warnings. This Limited Warranty is made only with respect to the initial purchaser and is not transferrable. Barricade reserves the right to require proof of purchase as a condition of this Limited Warranty and to make future revisions to this product or its Limited Warranty without obligation to provide notice of same to purchaser or to conform existing product to future revisions. Any change to this warranty made after purchase may be applied retroactively at the sole discretion of Barricade.

      What is Not Covered Your Barricade Limited Warranty does not cover damage or claims to any component, vehicle, or person other than the Barricade product purchased. Your Limited Warranty is expressly limited to replacement of the item itself shall Barricade determine item was not free of defect. As such, this Limited Warranty does not cover damage or claims to any component, vehicle, or person Barricade determines to have been damaged by or subjected to: • Installation damage, collision damage, alteration, modification, misuse or failure to maintain. • Damage in any part attributable to: (a.) vehicle systems or components or (b.) combination with non- Barricade products. • Normal wear and tear/product deterioration. • Theft, vandalism or other negligent or intentional damage.

      Remedy Limited to Repair/Replacement: The exclusive remedy provided for products covered under this Limited Warranty shall be, upon Barricade’s inspection and at Barricade’s option, either repair or replacement of product or parts (new or refurbished). Any parts repaired or replaced will be considered part of the original product and will not extend the term of Limited Warranty. Customers requesting warranty consideration should first contact the independent distributor selling your product to obtain a Returned Goods Authorization number. All removal, shipping, and installation costs are customer’s responsibility. If a replacement part is needed before your part can be returned, you must first purchase the replacement part. Then, if Barricade determines the part warrantable, you will be credited the purchase price of that part. This warranty is the only warranty made in connection with the purchase of this product. Barricade neither assumes nor authorizes any manufacturer, vendor, retailer, other person or entity to assume for it any other obligation or liability in connection with its products or this Limited Warranty.

      Other Limitations
      Exclusion of Damages
      Your Rights Under State Law:
      • In consideration of the purchase price paid, neither Barricade nor any independent distributor are responsible for any loss of use or time, rental costs, or for any incidental, consequential, punitive or other damages (whether arising in tort or contract) you may have or incur in connection with your vehicle, or your Barricade product. Your exclusive remedy hereunder is repair/replacement of the item itself or refund as described above at Barricade’s option. All implied warranties of merchantability and fitness for a particular purpose are hereby disclaimed or limited to the extent allowed under your jurisdiction.
