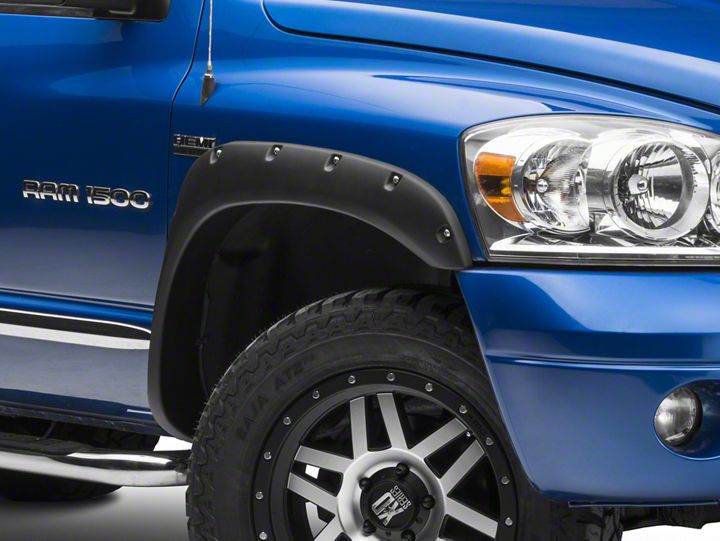

How to Install Barricade Premium Molded Fender Flares on your Ram
Tools Required
- Utility Knife
- #2 Phillips Drive bit
- 7/32 Socket
- T45 Torx Bit
- Socket Wrench
- Marker
Shop Parts in this Guide
FEATURE
High quality injection molding fender flares
Made from light weight impact resistance Polypropylene, non- cracking,non-warping, 100% UV-resistant.
Professional installation is always recommended
Step 1:Before Installation
A.Fit: Fit of the flare to vehicle should be confirmed. Some flin-g, sanding, or cutting may be adopted for proper fit if necessary.
B.Painting: (optional) if paint is desired it must be done prior of i-nstalling flares on vehicle. Clean outer surface with a good grad-e degreaser.
C.Metal protection: Rust resistance paint of all exposed fastene-rs and bare metal should be done BEFOR installing flares. Und-ercoating the inner fender wells should be done AFTER flare at-tachments have been completed.
D.Flares may interfere with existing decals on vehicle. If you wi-sh. Remove decals prior to installation of flares.
STEP 2 - Edge trim installation
A. Peel two to three inches of red vinyl backing away from Edge trim tape. Applying the adhesive side of the edge trim to the inner side of the flare. affix the edge trim to the top edge of the flare (the portion that comes in contact with the vehicle)
B. Press edge trim into place along the top edge of the flare in one foot increments, pulling red vinyl backing free as you continue to work your way around the top edge of the flare.
STEP 3 - Edge trim tool procedures
Use allen key to tight allen bolt, washer & nut firmly on every pocket of the fender flares first then place the flare on the vehicle with best position. Apply 2 push-in chip into the mounting slot in flare and secure it to the vehicle as shown. Fasten the existing factory screws into the original location that were previously removed.
Use allen key to tight allen bolt, washer & nut firmly on ever pocket of the fender flares first, then place the flare on the vehicle with best postion. Apply 3 Push-In clip into the mounting slot in flare and secure it to the vehicle. Apply 2 Plastic Expanding Fastener into the mounting slot in flare and secure it to the vehicle as shown. Fasten the existing factory screws into the original location that were previously removed.
(Optional B; Use the included self tapping screw to instead of the Expanding Fastener, where the Expanding Fastener is not workable on the different condition of the fender, or it may be used for the extra secure when it's needed.)
