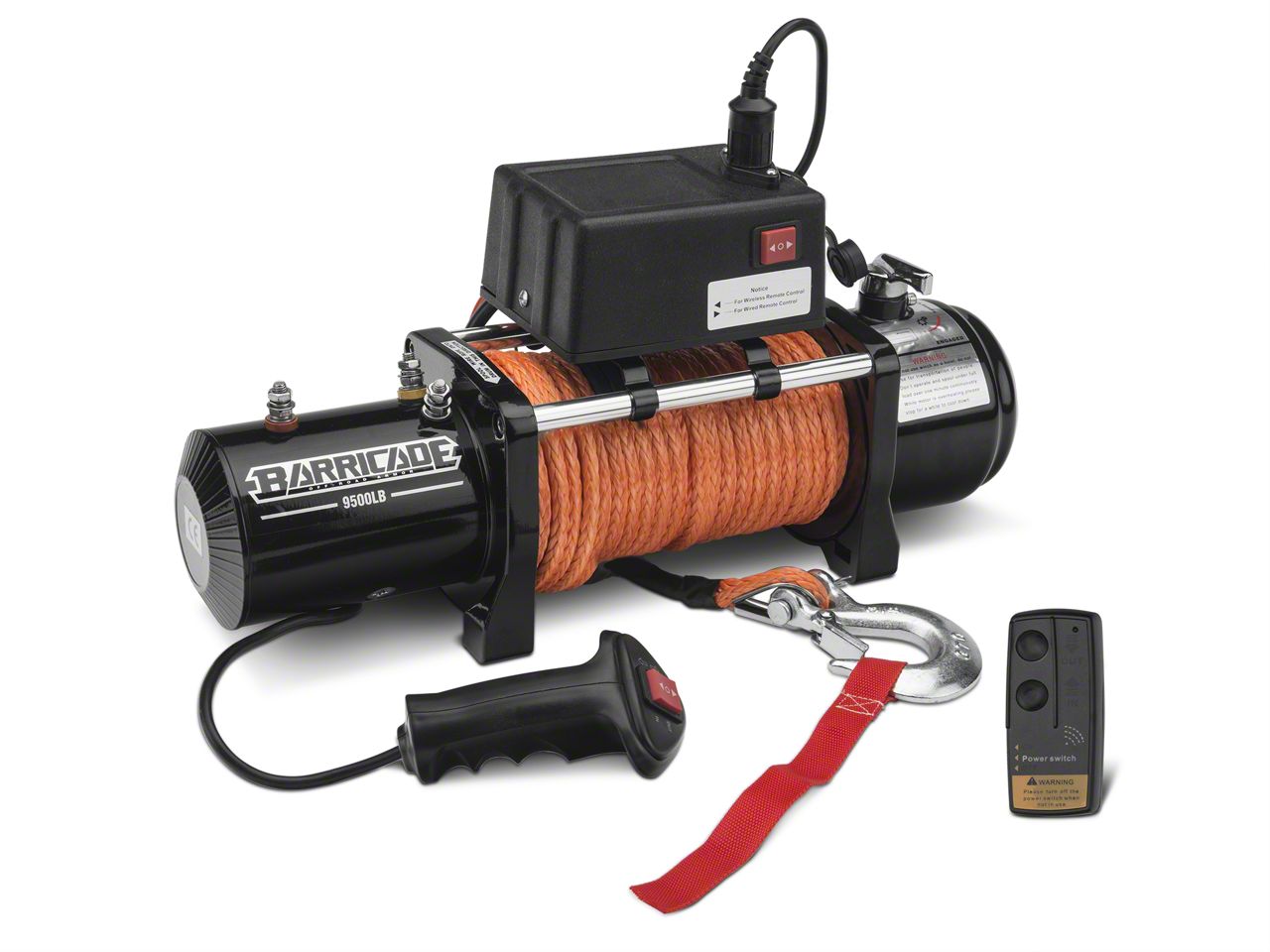

Barricade 9,500 lb. Winch with Synthetic Rope and Wireless Control (Universal; Some Adaptation May Be Required)

Item R101480
Verify parts fit and get product recommendations.
Ram 1500 Sales Techs: Connect Now M-F 8:30A-11P, Sat-Sun 8:30A-9P
$0.00
Our Price

$597.98

FREE Shipping Market Price $663.99 You Save 10% ($66.01) Up to 10% off for Military & First Responders! See Details

In Stock

Ship to: Ashburn - 20149
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features

      • 9,500 lb. Single-Line Pulling Rating
      • 5.5 HP 12-Volt Series Wound Electric Motor
      • 3 Stage Planetary Gear with 195.4:1 Gear Ratio
      • 94ft Bright Orange Synthetic Rope Included
      • Wireless Remote Control
      • Durable Black Powder Coat Finish
      • Hook, Hawse Fairlead and Cover are Included
      • Overall Dimensions: 21.1" x 6.3" x 8.6"
      • Mounting Bolt Pattern: 254mm x 114.3mm
      • Weight: 58 lbs.
      • Fits All 2002-2024 Dodge RAM Models

      Description

      Wireless Remote Control. Don't show up to the work-site unprepared, make sure your Dodge RAM is well equipped with Barricade Off-Road's Wireless 9500lb Winch with Synthetic Rope.  Stand back and take control with a wireless remote that keeps you and other's out of harms way. This Barricade Winch gives you even more safety and security when recovering from the roughest of spots.

      Heavy Duty 9500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, this Barricade Winch provides 9500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

      Additional Features. This Barricade Off-Road 9500 lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the rope while keeping it from binding. When not in use the included cover will protect the 94 feet of bright orange synthetic rope from the elements. This Wireless Barricade Winch also includes a wired remote control with a 12 foot lead as a back-up.

      Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1" × 6.3" × 8.6" and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.

      Application. This Barricade Off-Road 9500lb Winch with Wireless Remote Control is designed for use on all 2002-2024 Dodge RAM models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

      Line Pull Speeds
      • 0 lbs. - 35.4 ft./min
      • 2000 lbs. - 14.8 ft./min
      • 4000 lbs. - 11.2 ft./min
      • 6000 lbs. - 9.5 ft./min
      • 8000 lbs. - 7.87 ft./min
      • 9500 lbs. - 6.43 ft./min


      Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, this winch requires a cover when not in use. Barricade provides a winch cover for your convenience.

      Barricade Off-Road

      Shop All Truck Parts And Accessories

      Shop All Truck Winches

      Barricade J101798

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Tech Specs

      • 9500lb Winch
      • 94ft Orange Synthetic Rope
      • Hawse Fairlead
      • Wireless Remote Control
      • Wired Remote Control Lead
      • Solenoid
      • Wiring Harness
      • Rope Hook
      • Red Line Flag
      • Hardware
      • Winch Cover
