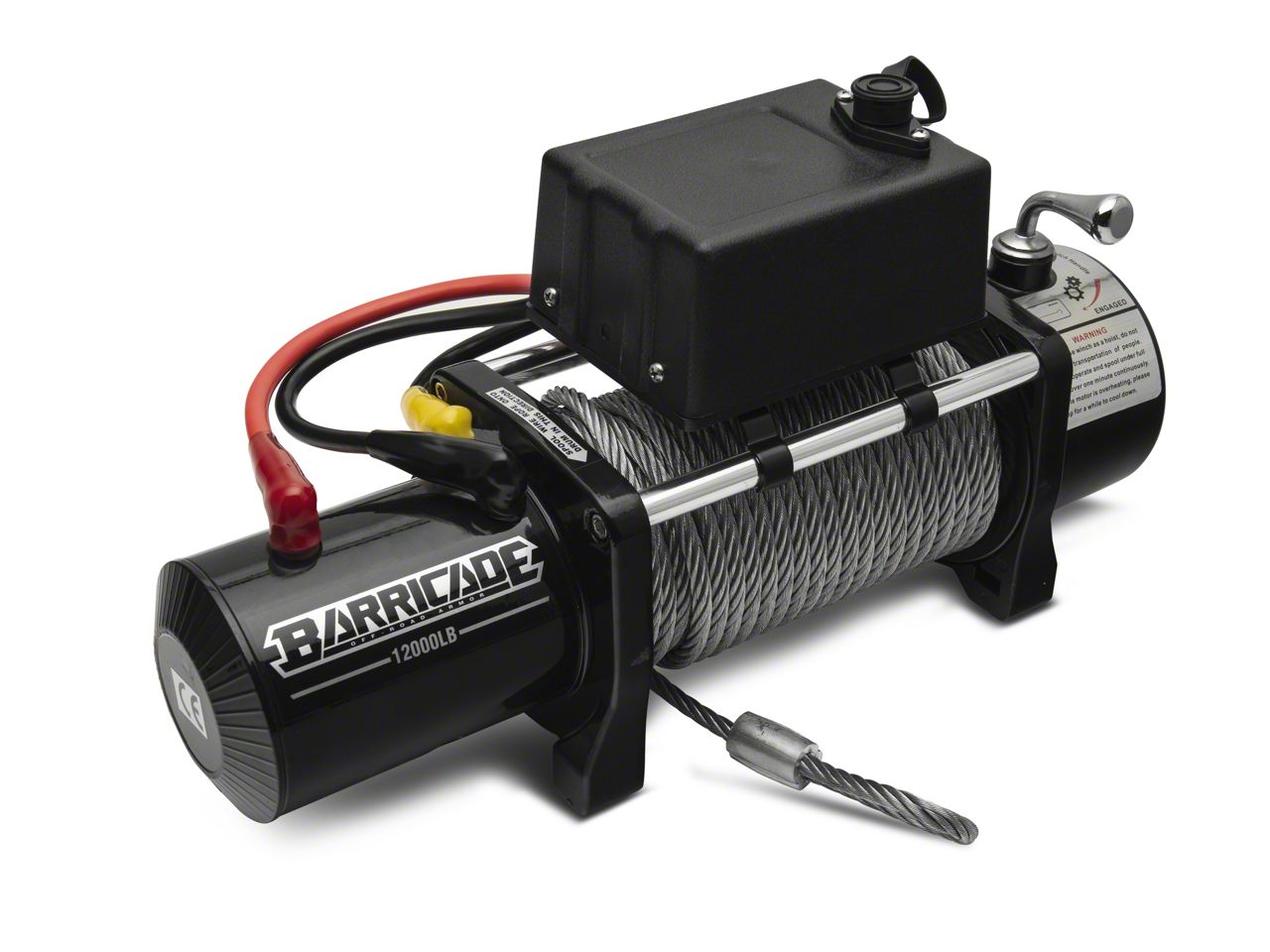

Barricade 12,000 lb. Winch (Universal; Some Adaptation May Be Required)
Item T525511
$377.99
On Sale
-6% $377.99 kit Was $399.99
Military, Medical & First Responders
$37.80 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Frequently Bought Together
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features
- 12,000 lb. Single Line Pulling Capacity
- 94 Feet of 23/64 Inch Steel Winch Cable with Replaceable Hook
- Line Speed Under Full Load is 6.4 Feet Per Minute
- Black Powdercoat Finish
- Remote Switch with 12 Foot Lead
- Roller Fairlead
- Fits All 1997-2026 F-150s
Description
Pulling Capacity. The Barricade Off-Road 12,000 lb. Winch delivers everything you need for a safe off-roading experience. If you consider yourself an off-roader, you know the importance of having a winch even on the easiest of trails. When you are searching for a winch, you want to make sure you get one worth your money, that will work every time, without ever having to worry if it will function or not, then this winch is what you need.
Heavy Duty Winch. Barricade Off-Road builds this winch with budget and quality in mind. The 6.6 hp motor with a gearbox boasting a 187.2:1 gear ratio can pull you and your friends out of the messiest of situations, and is rated for a max pull weight of 12,000 lbs. The winch case is completed in a durable black powdercoat finish for long lasting protection against corrosion.
Winch & Line Specs. With 94 feet of 23/64 inch steel cable, you can be sure you always have enough winch rope to reach a recovery point no matter what the situation. Made to withstand the elements, the winch rope will last you for many years and many recoveries. The 12 foot lead on the rubberized remote ensures you can always reach your winch control box, even from inside of your F-150.
Accessories. This winch comes with a 23/64 inch steel winch cable, hook, remote control on a 12 foot lead, and roller fairlead.
Application. This Barricade Off-Road 12,000 lb. Winch is designed for use on all 1997 to 2026 F-150s, including the FX2, FX4, Harley Davidson, King Ranch, Lariat, Limited, Platinum, STX, SVT Raptor, XL and XLT models.
Line Pull Speeds
- 0 lbs. - 33.3 ft./min
- 4000 lbs. - 16.8 ft./min
- 6000 lbs. - 12.8 ft./min
- 8000 lbs. - 10.1 ft./min
- 10000 lbs. - 8.8 ft./min
- 12000 lbs. - 7.6 ft./min
- Replacement Hardware – SKU U2396H
Technical Note. A battery with a minimum of 650cca (cold cranking amps) is required for operation.
Shop All Truck Parts And Accessories
Shop All Truck Winches
Barricade T525511
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Hexagon screw
- (1) Spring washer M5
- (1) Clutch handle
- (1) Nut cap
- (1) Cup gasket
- (1) Spring washer Φ20
- (2) O-ring
- (1) Gear box housing
- (1) Shaft sleeve
- (1) Sun gear
- (1) 3rd Planetary gear assy
- (1) Dual inner gear
- (1) 2nd Planetary gear assy
- (1) 1st Planetary gear assy
- (1) Sealing washer
- (4) Hexagon screw M8x25
- (4) Spring washer Φ8
- (1) Gear box bracket
- (10) Spring washer Φ4
- (10) Hexagon screw M4x20
- (2) Bearing bush
- (2) Sealing washer
- (1) Transmission shaft
- (1) Drum assembly
- (1) Brake assembly
- (2) Tie bar
- (1) Motor assembly
- (4) Cross Recess Head Screw M4.2X12
- (2) Mounting bracket assembly for control box
- (1) Control box assembly
- (1) Fairlead
- (1) 3/8” Hook
- (1) Wired remote control
- (1) Battery negative (-) cord 1.8M
- (1) Wireless remote control (Optional)
- (1) Mounting bolts: 3/8" UNC x 1-1/4" stainless steel bolts and spring washers
- (1) Part No S0107/08-31 — 0.75mm2 brown switch control wire
- (1) Part No S0107/08-32 — 0.75mm2 red switch control wire
- (1) Part No S0107/08-33 — 0.75mm2 yellow switch control wire
- (1) Part No S0107/08-34 — 0.75mm2 yellow remote control wire
- (1) Part No S0107/08-35 — 0.75mm2 white remote control wire
- (1) Part No S0107/08-36 — 0.75mm2 red remote control battery "+"
- (1) Part No S0107/08-37 — 0.75mm2 black remote control battery "-"
- (1) Part No S0107/08-38 — Green antenna
- (1) Part No S0107/08-39 — 0.4m short Black Cable with Yellow Terminal Sleeve
- (1) Part No S0107/08-40 — 1.8m long red battery cable “+”
- (1) Part No S0107/08-41 — 0.4m black motor cable with black sleeve
- (1) Part No S0107/08-42 — Black Cable with Black Sleeve (0.75mm x 0.45m; earth)
- (1) Part No S0107/08-43 — 0.4m Short Red Cable with Red Terminal Sleeve
- (1) Part No S0107/08-44 — Receiver for remote
- (1) Part No S0107/08-45 — U Type Strap-Aluminum
- (1) Part No S0107/08-46A — Solenoid 12V (or)
- (1) Part No S0107/08-46B — Solenoid 24V
Tech Specs
- Dimensions: 21.1 in. x 6.3 in. x 8.6 in.
- Line Pulling Capacity: 12,000 lb. (5443 kgs)
- Line Speed: 6.4 Feet per Minute under Full Load
- Motor: 6.6 hp, 12 Volt, Series Wound Motor
- Mounting Footprint: 10 in. x 4.5 in.
- Gear: 3 Stage Planetary Gear with a 187.2:1 Ratio
- Winch Cable Length: 94 feet of 23/64 inch Steel
- Weighs: 58 lbs
