Find Light Bars & Off-Road Lighting for your Ram 1500

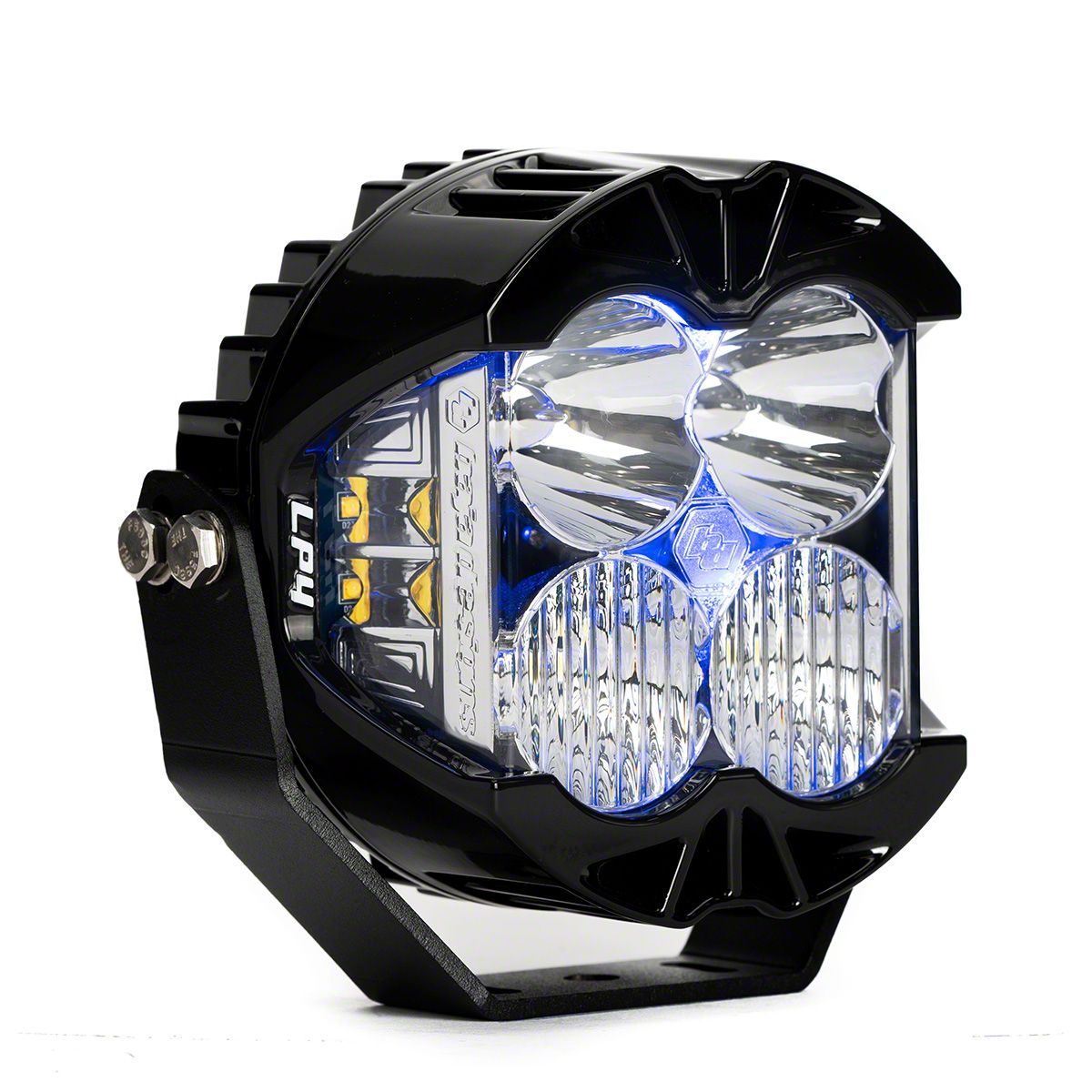

Baja Designs LP4 Pro LED Auxiliary Light Pod with Blue Backlight; Driving/Combo Beam; Clear (Universal; Some Adaptation May Be Required)
Item R157016
Our Price
$437.95 each
Military, Medical & First Responders
$21.90 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Reviews, Q&A, Specs & Installation
Features & Specs
- _x000D_
- Lens Color Clear _x000D_
- Lens Material Hardcoated Polycarbonate _x000D_
- Light Quantity 1 _x000D_
- Lighting Modes Beam/Day-Time Running Backlighting _x000D_
- Lighting Quantity 4 _x000D_
- Lighting Technology LED _x000D_
- Lighting Type Forward Projecting _x000D_
- Mounting Hardware Included Yes _x000D_
- Mounting Hardware Material Stainless Steel _x000D_
- Overvoltage Protection Built-In _x000D_
- Product Type LP4 Pro LED Light Pod _x000D_
- Secondary Amperage Rating 1.000 Ampere _x000D_
- Secondary Brightness 1972 Lumens _x000D_
- Secondary Light Quantity 4 LEDs _x000D_
- Secondary Lighting Technology LED _x000D_
- Secondary Lighting Type Integrated Peripheral Technology (IPT) _x000D_
- Secondary Wattage 15 Watts _x000D_
- Terminal Connector DT06-4S Deutsch _x000D_
- Terminal Type Mating Connector _x000D_
- Universal Or Specific Universal _x000D_
- Wattage 75.9 Watts _x000D_
- Wiring Harness Included No _x000D_
- Amperage Rating 5.5 Ampere _x000D_
- Average Rated Life 49,930 Hours _x000D_
- Backlight Amperage Rating 0.35 Ampere _x000D_
- Backlight Wattage 4.83 Watts _x000D_
- Beam Pattern Driving/Combo _x000D_
- Bezel Material Powder Coat Cast Aluminum _x000D_
- Brightness 8857 Lumens _x000D_
- Description Driving/Combo; Clear _x000D_
- Housing Color Black _x000D_
- Housing Material Powder Coat Cast Aluminum _x000D_
- Standards And Compliance Durability Exceeds MIL-STD810G (Mil-Spec Testing) _x000D_
- Standards And Compliance Impact Resistance IK10 Compliant (Mechanical Impact Testing) _x000D_
- Standards And Compliance Water Resistance IP69K (Waterproof up to 9ft & Pressure Washable) _x000D_
- Depth 3.2 Inches _x000D_
- Height 5.1 Inches _x000D_
- Length 5.1 Inches _x000D_
- Weight 2.8 Pounds _x000D_
- Fits Universal; Some Adaptation May Be Required _x000D_
| Brand | Baja Designs |
| Bulb Type | LED |
| Light Shape | Square |
| Light Size | 3 to 3.75 Inch |
Description
High-Performance LED Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Blue Backlight and Driving/Combo Beam is engineered to deliver exceptional illumination for off-road and auxiliary lighting applications. It improves visibility with a powerful driving/combo beam pattern combined with integrated peripheral technology (IPT), making it highly effective for navigating rugged terrain and low-light environments.
_x000D__x000D_Construction and Appearance. This light pod features a durable hardcoated polycarbonate lens and a black powder-coated cast aluminum housing for enhanced corrosion resistance and durability. The sturdy housing and stainless steel mounting hardware ensure a rugged and long-lasting finish capable of withstanding tough conditions.
_x000D__x000D_Installation. Installation is straightforward with mounting hardware included and no complex modifications necessary. The light pod integrates easily into existing wiring systems using a DT06-4S Deutsch mating connector.
_x000D__x000D_Warranty. The product is supported by a limited lifetime warranty, providing comprehensive protection against defects in material and workmanship.
_x000D__x000D_Application. Designed for universal fitment, the light pod may require some adaptation to ensure secure mounting across a variety of vehicle setups.
Baja Designs 290015
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) LED Auxiliary Light Pod
