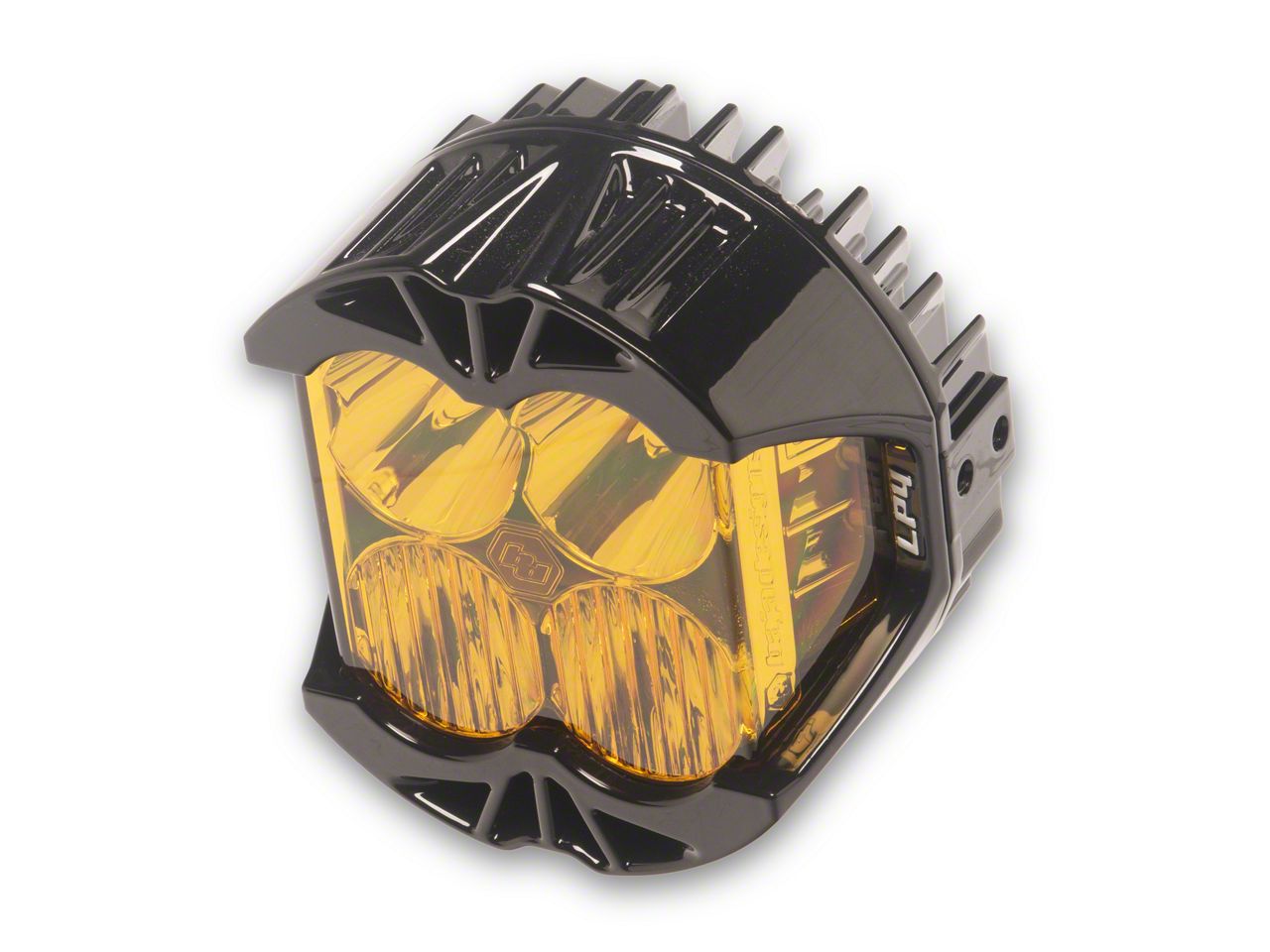

Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight; Driving/Combo Beam; Amber (Universal; Some Adaptation May Be Required)

Item R157013
Our Price

$437.95 each

Military, Medical & First Responders $21.90 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Reviews, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Lens Color Amber
      • _x000D_
      • Lens Material Hardcoated Polycarbonate
      • _x000D_
      • Light Quantity 1
      • _x000D_
      • Lighting Modes Beam/Day-Time Running Backlighting
      • _x000D_
      • Lighting Quantity 4
      • _x000D_
      • Lighting Technology LED
      • _x000D_
      • Lighting Type Forward Projecting
      • _x000D_
      • Mounting Hardware Included Yes
      • _x000D_
      • Mounting Hardware Material Stainless Steel
      • _x000D_
      • Overvoltage Protection Built-In
      • _x000D_
      • Product Type LP4 Pro LED Light Pod
      • _x000D_
      • Secondary Amperage Rating 1.000 A
      • _x000D_
      • Secondary Brightness 1972 Lumens
      • _x000D_
      • Secondary Light Quantity 4 LEDs
      • _x000D_
      • Secondary Lighting Technology LED
      • _x000D_
      • Secondary Lighting Type Integrated Peripheral Technology (IPT)
      • _x000D_
      • Secondary Wattage 15 W
      • _x000D_
      • Terminal Connector DT06-4S Deutsch
      • _x000D_
      • Terminal Type Mating Connector
      • _x000D_
      • Universal Or Specific Universal
      • _x000D_
      • Wattage 75.9 W
      • _x000D_
      • Wiring Harness Included No
      • _x000D_
      • Amperage Rating 5.5 A
      • _x000D_
      • Average Rated Life 49,930 Hours
      • _x000D_
      • Backlight Amperage Rating 0.350 A
      • _x000D_
      • Backlight Wattage 4.83 W
      • _x000D_
      • Beam Pattern Driving/Combo
      • _x000D_
      • Bezel Material Powder Coat Cast Aluminum
      • _x000D_
      • Brightness 8857 Lumens
      • _x000D_
      • Description Driving/Combo; Amber
      • _x000D_
      • Housing Color Black
      • _x000D_
      • Housing Material Powder Coat Cast Aluminum
      • _x000D_
      • Depth 3.2 Inches
      • _x000D_
      • Height 5.1 Inches
      • _x000D_
      • Length 5.1 Inches
      • _x000D_
      • Weight 2.8 Pounds
      • _x000D_
      • Exceeds MIL-STD810G Mil-Spec Testing
      • _x000D_
      • IK10 Compliant Mechanical Impact Testing
      • _x000D_
      • IP69K Waterproof Up To 9ft and Pressure Washable
      • _x000D_
      • Fits Universal; Some Adaptation May Be Required
      • _x000D_

      Description

      Powerful Auxiliary Lighting. The Baja Designs LP4 Pro LED Auxiliary Light Pod with Amber Backlight and Driving/Combo Beam delivers exceptional illumination with a total output of 8,857 lumens, including a 200-degree spread for comprehensive peripheral lighting. Designed for off-road and auxiliary lighting needs, this light pod enhances visibility in demanding environments, ensuring safety and performance where it counts the most.

      _x000D__x000D_

      Construction and Appearance. Built with a robust powder-coated cast aluminum housing and a hardcoated polycarbonate lens, this light pod combines durability with a sleek black finish and amber lens. The mounting hardware is crafted from stainless steel, providing corrosion resistance and long-term reliability, while its compact dimensions maintain a low profile for versatile placement.

      _x000D__x000D_

      Installation. Installation is straightforward, with included stainless steel mounting hardware. Typically, no drilling is required, allowing for quick and secure mounting to most vehicles.

      _x000D__x000D_

      Warranty. Backed by a limited lifetime warranty, this product offers long-term protection and customer confidence.

      _x000D__x000D_

      Application. Fits universally with some adaptation potentially required depending on vehicle configuration.

      Baja Designs 290013

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

      What's in the Box

      • (1) Light and bracket
      • (1) Hardware pack including 1/4”-20 bolts and 3/8” bolt with washers
      • (6) Bolts for LP9 bezel (4mm allen wrench size)
      • (4) Bolts for LP6 & LP4 bezel (4mm allen wrench size)
      • (1) O-ring
      • (1) Three position toggle switch (Double Pole, Double Throw - DPDT)
      • (1) 64-0172 LP9 Pro Wire Harness (recommended for powering up to two lights)
      • (1) Relay PN: 4RD 933 332-18
      • (1) Deutsch Connector (DT06-4S, mating connector for back of light)
