Axiom Supply 2-Inch Front Leveling System; Stage 2 (20-26 Sierra 3500 HD)Find parts that fit my vehicle
Item SHG74796
New
Our Price
$699.99
Military, Medical & First Responders
$35.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Description, Q&A
Features & Specs
| Brand | Axiom Supply |
| Leveling Kit Location | Front |
| Leveling Kit Lift Height | 2.00 Inch |
| Leveling Kit Includes Shocks | Shocks Not Included |
Description
Fitment
_x000D_The Axiom Supply Stage 2 Leveling System is a complete front suspension upgrade engineered specifically for GM HD trucks seeking increased ride height, corrected suspension geometry, improved wheel travel, and enhanced durability.
_x000D_Applications include:
_x000D_2020-2026 Chevrolet Silverado 2500HD
_x000D_2020-2026 GMC Sierra 2500HD
_x000D_2020-2026 Chevrolet Silverado 3500HD
_x000D_2020-2026 GMC Sierra 3500HD
_x000D_Fitment Notes
_x000D_Does not fit the AT4X and ZR2 model trucks with DSSV shocks.
_x000D_Provides up to 2" of front ride height adjustment.
_x000D_Designed for stock, leveled, and lifted applications.
_x000D_Compatible with most aftermarket suspension systems utilizing factory-style upper control arm mounting locations.
_x000D_Oversized tires exceeding 11.50" in width may contact the control arm when used with certain factory wheel configurations.
_x000D_Additional wheel offset or wheel spacers may be required depending on tire size and wheel combination.
_x000D__x000D_
Features
_x000D_Complete Stage 2 Suspension Solution – Combines heavy-duty upper control arms, forged torsion leveling keys, and shock spacers into a single system designed to work together for maximum performance and reliability.
_x000D_True Double-Shear Construction – Built from identical upper and lower 3/16" steel plates that are precision laser cut and hand welded into a single rigid structure. This true double-shear architecture distributes suspension loads evenly while maximizing strength, rigidity, and long-term durability.
_x000D_Equipped with AX6292 Grade 12.9 Ball Joints – Every kit includes a pair of Axiom Supply AX6292 bolt-on upper ball joints featuring our Grade 12.9 Extreme-Duty Ball Stud technology for exceptional strength, steering precision, and resistance to deformation under heavy loads.
_x000D_Forged Torsion Leveling Keys – Designed to provide additional front ride height while maintaining proper torsion bar indexing and adjustment range.
_x000D_Shock Spacer & Extension System – Restores available shock travel after leveling to help maintain ride quality, suspension performance, and shock longevity.
_x000D_Corrected Suspension Geometry – Restores proper suspension operating angles while improving droop travel and overall suspension performance.
_x000D_Dual-Position Ball Joint Mounting – Allows the ball joint to be mounted above or below the control arm mounting plate, providing additional flexibility when dialing in alignment settings and suspension geometry.
_x000D_Precision Laser-Cut Components – Manufactured using computer-designed, laser-cut steel components for exceptional fitment consistency and manufacturing accuracy.
_x000D_Service-Friendly Design – Improved grease fitting access simplifies routine maintenance and lubrication regardless of control arm orientation.
_x000D_Premium Bushing System – High-quality bushings and sleeves provide smooth articulation while minimizing unwanted suspension deflection.
_x000D_Built for Heavy-Duty Use – Engineered to withstand the demands of towing, oversized tires, lifted suspension systems, off-road use, and daily driving.
_x000D_Lifetime Warranty Protection – Backed by the Axiom No-Nonsense Lifetime Warranty for the original purchaser.
_x000D__x000D_
Description
_x000D_The Axiom Supply Stage 2 Leveling System was developed for GM HD truck owners looking for more than a simple leveling kit. By combining ride height adjustment with suspension correction components, this system delivers improved appearance, increased capability, and long-term reliability.
_x000D_At the foundation of the system are Axiom Supply forged torsion leveling keys, providing up to 2" of front ride height adjustment to eliminate factory rake and create clearance for larger tire and wheel combinations. To maintain proper suspension performance after leveling, the system includes Axiom Supply shock spacers and extensions that help restore shock travel and preserve ride quality throughout the suspension's operating range.
_x000D_Unlike basic leveling kits that simply increase ride height, the Stage 2 System addresses the geometry changes created by suspension modifications. Included Axiom Supply Heavy-Duty Upper Control Arms feature a true double-shear construction utilizing identical upper and lower 3/16" steel plates hand welded into a rigid boxed structure. This design distributes suspension loads evenly through the ball joint mounting area while minimizing flex and maintaining alignment integrity under demanding conditions.
_x000D_Each control arm is equipped with Axiom Supply AX6292 Bolt-On Upper Ball Joints featuring our Grade 12.9 Extreme-Duty Ball Stud technology. Combined with the dual-position ball joint mounting system, installers gain additional alignment flexibility while benefiting from one of the strongest bolt-on upper ball joints available for the GM HD platform.
_x000D_Whether your truck is used for towing, work, off-road exploration, or everyday driving, the Axiom Supply Stage 2 Leveling System provides the ride height, suspension correction, and component strength required to confidently handle whatever comes next.
_x000D_Maintenance
_x000D_Apply 3 pumps of grease to each ball joint during installation.
_x000D_For continued performance, service each ball joint every 5,000–7,000 miles. Use only the amount of grease necessary to lubricate the joint and avoid over-greasing.
_x000D__x000D_

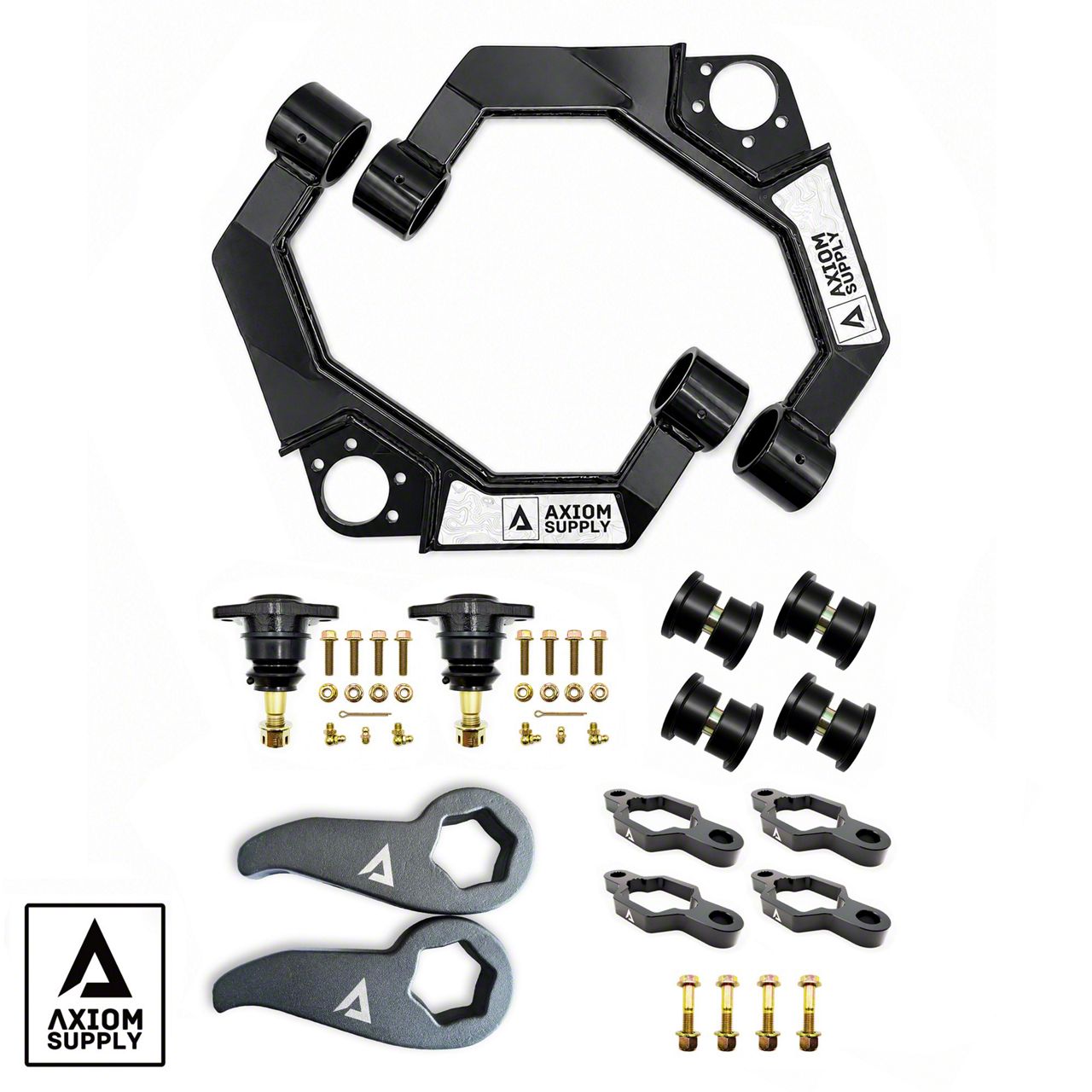

Includes
_x000D_(2) Axiom Supply Heavy-Duty Upper Control Arms
_x000D_(2) Axiom Supply AX6292 Grade 12.9 Bolt-On Upper Ball Joints
_x000D_(2) Axiom Supply Forged Torsion Leveling Keys
_x000D_(1) Axiom Supply Shock Spacer Kit
_x000D_(4) Control Arm Sleeves
_x000D_(8) Control Arm Bushings
_x000D_(1) Complete Installation Hardware Kit
_x000D_Installation Instructions Here
_x000D__x000D_
The Axiom No-Nonsense Lifetime Warranty
_x000D_Our suspension and steering components are warrantied for life to the original purchaser against manufacturer defects, premature wear, or breakage.
_x000D_Push it to the limit—we don't care.
_x000D_If the part lets you down, we'll make it right.
Axiom Supply AXGM20STAGE2
