ARB Outback Solutions Modular Roller Drawer with Roller Floor; 53-Inch x 20-Inch x 12-Inch (Universal; Some Adaptation May Be Required)

Item SHG10860
Product Image
19 Reviews of ARB
Our Price

$1,447.00 kit

Military, Medical & First Responders $72.35 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A, Specs & Installation

      Features & Specs

        _x000D_
      • Engineered for both on and off-road driving with anti-rattle design
        • _x000D_
      • Self-locking anti roll back system locks into place at full extension, holding drawer from rolling closed even on inclines
        • _x000D_
      • Modular units allow greater flexibility if needs change in the future
        • _x000D_
      • Class leading deep drawers with internal heights up to 9.8 inches for greater packing potential
        • _x000D_
      • Key lockable push-pull slam shut latches for ease of use and maximum security
        • _x000D_
      • Long lasting UV stable commercial carpet designed to complement modern vehicle interiors
        • _x000D_
      • Cross folded floor ensures maximum support for items placed within each unit up to a maximum of 330 lbs per drawer, 600 lbs combined
        • _x000D_
      • Fully sealed dust and water resistant bearings for superior longevity working in harsh environments
        • _x000D_
      • Integrated fridge slides on roller floor models provide a true flat mounting surface
        • _x000D_
      • Vehicle specific side floor kit with easy latches completes installation and provides additional storage areas within the cabin or tray
        • _x000D_
      • Water resistant bonded marine plywood with steel reinforced guards for superior strength sourced from sustainable forests
        • _x000D_
      • Folded stainless steel bearing runners for ultra-smooth drawer and slide operation
        • _x000D_
      • Load rating: 275 lbs per drawer roll top, 220 lbs closed, 165 lbs extended
        • _x000D_
      • Internal dimensions: 49.4 in L x 17.1 in W x 9.8 in H
        • _x000D_
      • External dimensions: 53.4 in L x 19.9 in W x 12.2 in H
        • _x000D_
      • Weight: 110.9 lbs
        • _x000D_
      • Material: Steel
        • _x000D_
      • Color: Gray
        • _x000D_
      • Prop 65: No
        • _x000D_
      • Warranty: 3 years
        • _x000D_
      • Fits universal; some adaptation may be required
        • _x000D_

      Description

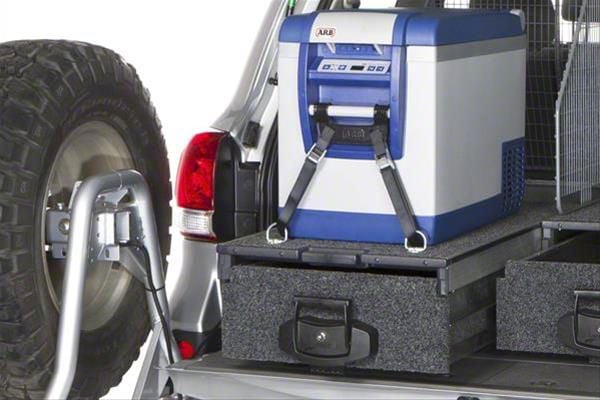

      MODULAR STORAGE SYSTEM. The ARB Outback Solutions Modular Roller Drawer with Roller Floor offers a versatile and secure storage solution designed to enhance cargo organization in your vehicle. Measuring 53 inches by 20 inches by 12 inches, it allows for easy access to stored items while maximizing usable space and maintaining durability for both on and off-road conditions.

      _x000D__x000D_

      CONSTRUCTION AND APPEARANCE. Constructed from steel with a water-resistant bonded marine plywood base reinforced by steel guards, this modular drawer features folded stainless steel bearing runners for smooth operation. The exterior is finished in a gray UV stable commercial carpet that complements modern vehicle interiors and resists wear in harsh environments.

      _x000D__x000D_

      INSTALLATION. Installation is straightforward with vehicle-specific side floor kits that offer a bolt-in solution requiring no or minimal drilling. Easy latch mechanisms ensure a secure and clean integration within the cabin or tray.

      _x000D__x000D_

      WARRANTY. This product is backed by a 3-year warranty, providing you with long-term reliability and support.
      _x000D_APPLICATION. Designed for universal fitment; some adaptation may be necessary to suit specific vehicle interiors and configurations.

      ARB RDRF1355

      CA Residents: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

      Installation & What's in the Box

      Installation Info

      Installation Time

      (approx) 1 Hour

      Difficulty Level:

      Light to Moderate mechanical skill required.

      Installation Guides

        No guide available for this part yet.

      What's in the Box

      • (1) Drawer Assembly
      • Mounting Hardware
