Air Lift Performance ALP4 Air Management System; 3/8-Inch (Universal; Some Adaptation May Be Required)

Item SHG61804
Product Image
Our Price

$1,916.99

Military, Medical & First Responders $95.85 Available in AT Cash Rewards.
Confirm Eligibility

Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE
    Loading Indicator

      Product Information

      Features, Description, Q&A

      Features

        _x000D_
      • The ALP4 Air Management System redefines air suspension control by combining advanced hardware with seamless and intelligent functionality.
        • _x000D_

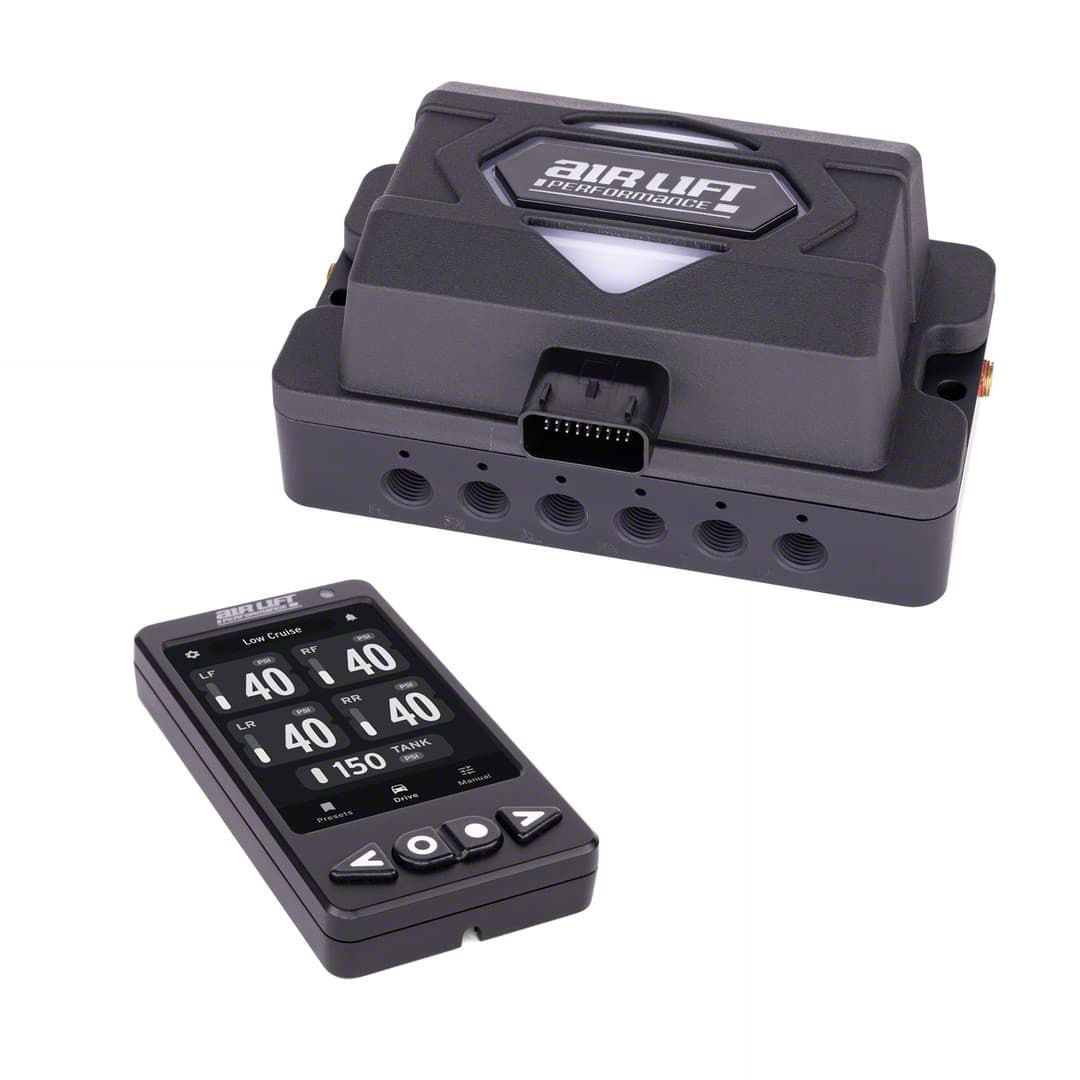

      • Features a compact, all-in-one manifold housing the ECU, solenoids, and pressure sensors for streamlined performance.
        • _x000D_
      • Manifold crafted from anodized black billet aluminum for enhanced durability and a sleek, show-ready look.
        • _x000D_
      • Includes a full-color 5-inch touchscreen controller framed in anodized aluminum, equipped with four tactile physical buttons.
        • _x000D_
      • Provides immediate control of presets, 4-corner manual adjustments, axle tuning, full air release, and other customizable functions.
        • _x000D_
      • Mobile app integration enables remote use and fine-tuning from anywhere, offering ultimate control.
        • _x000D_
      • Kit contains threaded port manifold, touchscreen controller, main wiring harness, USB-A to USB-C cable, mounting and electrical hardware, fittings, water trap, air line cutter, and airline.
        • _x000D_
      • Features pressure-based management with the option to upgrade to height-based control via an upgrade kit.
        • _x000D_
      • Manifold includes an LED-lit top cover and a rotatable logo plate for customizable aesthetics.
        • _x000D_
      • Touchscreen controller includes an auto-dimming ambient light sensor and adjustable LED colors for enhanced visibility.
        • _x000D_
      • Plug-and-play wiring harness enables easy installation, requiring only power, ground, and keyed ignition connections.
        • _x000D_
      • Built-in diagnostics provide clear system messages and compressor performance testing for straightforward troubleshooting.
        • _x000D_
      • Adjustable pulse rate, valet mode with customizable lockout, and ride adjustment algorithms with learning and road filtering enhance user experience.
        • _x000D_
      • Show mode allows full system operation with the vehicle off for a single ignition cycle; standby mode maintains wireless connectivity with minimal power draw.
        • _x000D_
      • Adjustable preset maintain sensitivity and slow lift/lower zones ensure smooth ground contact management.
        • _x000D_
      • Seamlessly integrates with available tank and compressor kits (tank and compressor sold separately).
        • _x000D_
      • Designed to fit universally; some adaptation may be needed for specific vehicle applications.
        • _x000D_

      Description

      Advanced AIR SUSPENSION CONTROL. The Air Lift Performance ALP4 Air Management System; 3/8-Inch offers precise and reliable control of air suspension setups, allowing users to easily adjust air pressure for customizable ride height. This system enhances vehicle performance and comfort with intuitive control options both manually and remotely.

      _x000D__x000D_

      Construction and Appearance. The system’s manifold is constructed from anodized black billet aluminum, delivering durability and a refined, show-ready appearance. The manifold integrates the ECU, solenoids, and pressure sensors in a compact design, paired with a full-color 5-inch touchscreen controller housed in anodized aluminum and featuring tactile physical buttons. LED lighting accents on both components provide customizable visual enhancement.

      _x000D__x000D_

      Installation. Installation is straightforward with a plug-and-play wiring harness requiring only power, ground, and keyed ignition connections. This system serves as a drop-in upgrade for existing 3P/3H setups, simplifying installation for experienced users.

      _x000D__x000D_

      Application. Fits universal; some adaptation may be required.

      Air Lift Performance 27485
