Find Coilovers for your Ram 1500

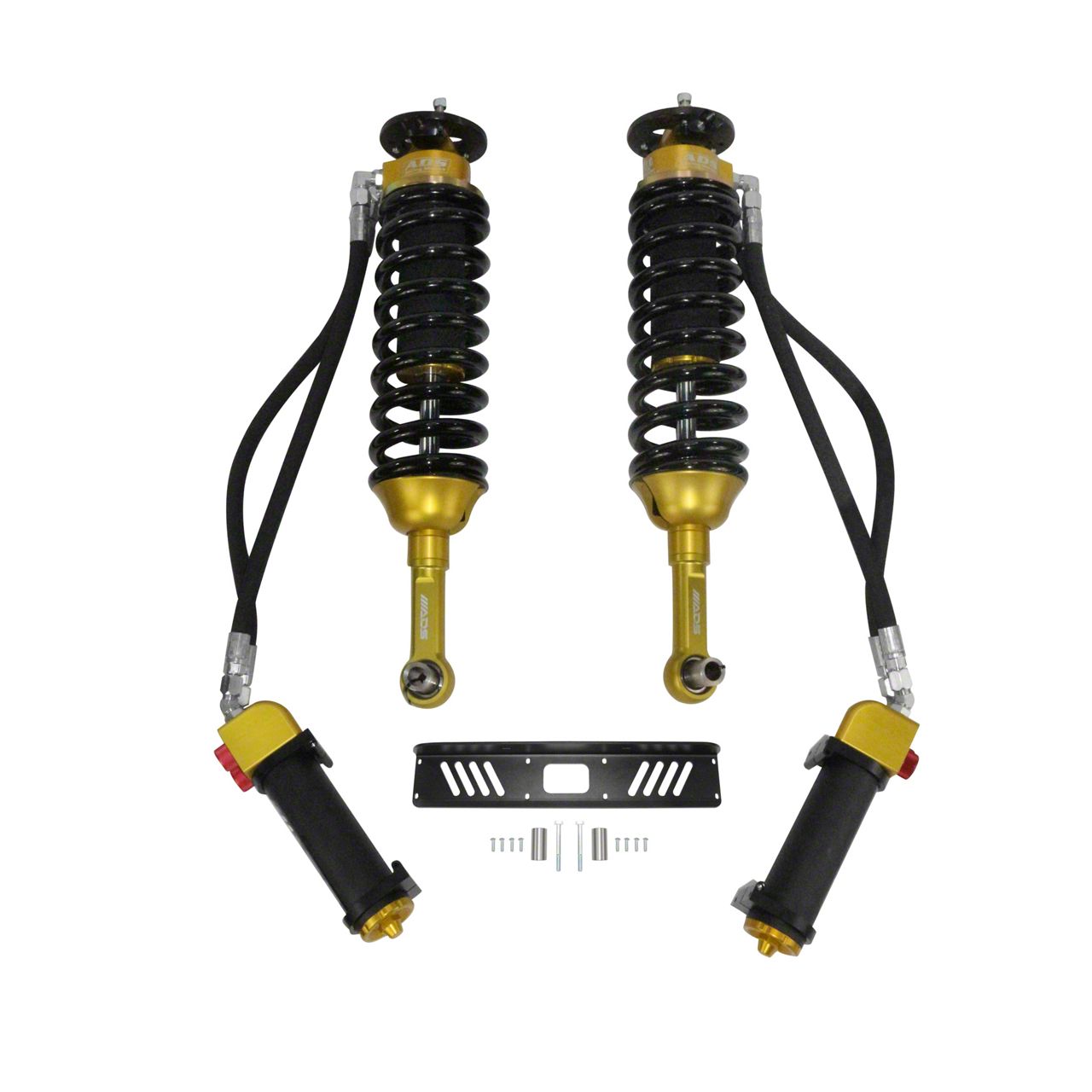

ADS Racing Shocks Direct Fit Race MBR Front Coil-Overs for 1-Inch Lift (21-24 RAM 1500 TRX)Find parts that fit my vehicle
Item R189350
Our Price
$4,919.95 pair
Military, Medical & First Responders
$246.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
CONFIRM THIS FITS YOUR VEHICLE!
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- Large Bore 3.00-Inch Shock Body Provides Increased Fluid Capacity Resisting Shock Fade Resulting In Increased Performance For Your Off-Road Adventures
- Patent Pending Damper Technology
- True Top-Out Zone Provides Both Mechanical And Hydraulic Damping
- 4-Way Adjustable 2.50-Inch External Reservoirs Connected To Main Body Via Dual-Hose Recirculation Fluid Path
- Gold Anodized Billed Aluminum Top And Bottom Caps
- Hard-Chrome Plated Steel Shock Shafts For Superior Corrosion Resistance
- Shock Eye Mounts Feature Machined Rod Ends With High Strength Spherical Bearings For Increased Performance
- Electric Zinc Plated Steel Shock Body With Crystal Clear Cerakote® For Durability And Corrosion Resistance
- Passive Suspension With Adjustable Compression And Rebound
- Includes Bump Stop And Mounting Hardware
- Internal Bypass Shock With Progressive Valving Type
- Spring Included With 700 lb/in Rate And Powdercoated Finish
- Shock Travel And Stroke Are 6.6 Inches
- Reservoir Is Remote Type, Made From 6061 Aluminum, Black Ceramic Coated, With Diameter 2.5 Inches And Length 8 Inches
- Weight 44.5 Pounds
- Requires Upper Control Arm
- Position Is Front
- Body Diameter 3 Inches With Ceramic Coat Finish And Steel Material
- Shaft Diameter 0.875 Inches Made From Hard-Chrome Plated Steel
- Fits 2021-2024 RAM 1500 TRX And 2025 RAM RHO (Front)
Description
Advanced Suspension Technology. The ADS Racing Shocks Direct Fit Race MBR Front Coil-Overs for 1-Inch Lift deliver top-tier performance with multi-stage bypass damping and extensive adjustability. Designed for racing and serious off-road applications, these coilovers provide superior shock control and customized tuning to elevate handling and durability on demanding terrain.
Construction and Appearance. Featuring large bore 3-inch steel shock bodies with a ceramic coat finish and hard-chrome plated steel shafts, these coilovers resist corrosion and fade under extreme conditions. The external 2.5-inch aluminum reservoirs with ceramic coating improve heat dissipation, while anodized aluminum caps and high-strength spherical bearings enhance durability and aesthetics.
Installation. These coilovers are designed as direct fit replacements and include all necessary mounting hardware. Professional installation is recommended given the technical requirements and the need for performance tuning. Note that installation requires an upper control arm.
Application. Specifically engineered to fit the front suspension of 2021–2024 RAM 1500 TRX and 2025 RAM RHO models, these coilovers provide up to 1 inch of front lift, making them a precise upgrade for compatible vehicles.
ADS Racing Shocks 300-0TRXF-MBR
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (2) Front Coil-Overs
Tech Specs
