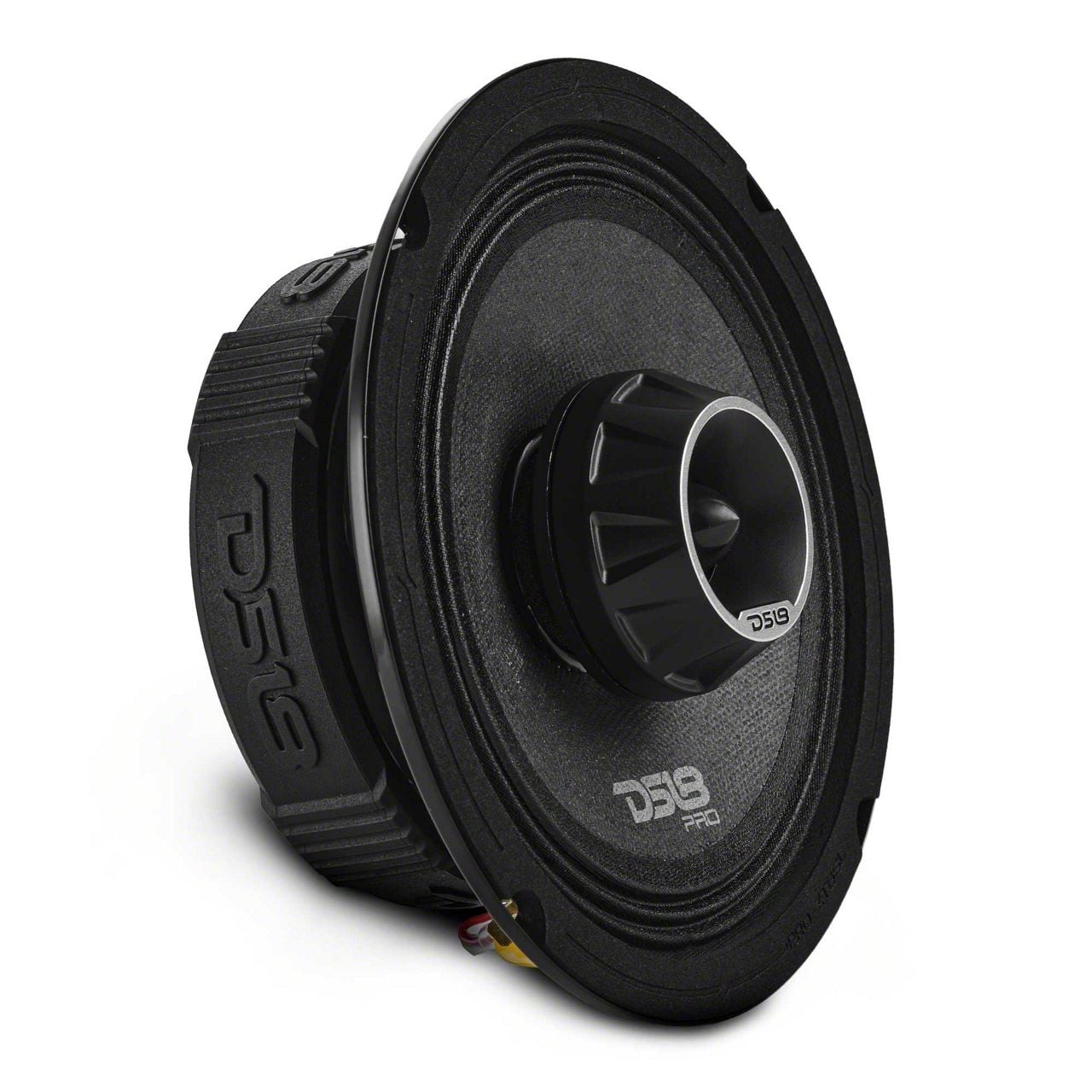

DS18 PRO-ZT 6.50-Inch Water Resistant Slim Coaxial Mid-Range Loudspeaker with Built-In Bullet Tweeter; 200 Watts (Universal; Some Adaptation May Be Required)
Item U60634-AT
Our Price
$89.95 each
Military, Medical & First Responders
$4.50 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A, Specs & Installation
Features
- 6.5" Slim Coaxial 2-Way
- RMS Power Handling 200 Watts
- Peak Power 400 Watts
- Ultra-Shallow Mounting Depth 2.15 Inches
- Ferrite And Neodymium Magnets
- Built-In Bullet Tweeter
- Water-Resistant Cone With Treated Cloth Surround
- IP32 Rated
- Nominal Impedance 4 Ohms
- Sensitivity 95 dB At 1W/1M
- Frequency Response 80 Hz To 20 kHz
- Recommended High Pass Crossover At 120 Hz
- Nominal Diameter 6.5 Inches / 165.1 mm
- Voice Coil Diameter 1.5 Inches / 38.1 mm
- Voice Coil Former Material Kapton
- Winding Material CCAW
- Cone Material Water-Resistant Paper
- Surround Material Treated Cloth
- Basket Material Steel
- Basket Color Glossy Black
- Magnet Weight 21 Ounces
- Tweeter Voice Coil Diameter 1 Inch / 25.4 mm
- Tweeter Voice Coil Former Material Kapton
- Tweeter Diaphragm Aluminum Alloy
- Tweeter Magnet Material Neodymium N35H
- Thiele & Small Equivalent Volume 2.97 Liters
- Free Air Resonance 150 Hz
- Mechanical Compliance 0.119 mm/N
- BL Factor 6.521
- Voice Coil Inductance 0.129 mH
- Overall Diameter Without Grill 6.57 Inches / 167 mm
- Overall Depth Without Grill 3 Inches / 78 mm
- Front Mount Baffle Cutout 5.7 Inches / 145 mm
- Mounting Depth 2.15 Inches / 55 mm
- Water-Resistant Rating IP32
- Fits Universal; Some Adaptation May Be Required
Description
Compact High-Performance Speaker. The DS18 PRO-ZT 6.50-Inch Water Resistant Slim Coaxial Mid-Range Loudspeaker with Built-In Bullet Tweeter delivers powerful and clear sound despite its slim design. This speaker is ideal for tight spaces such as motorcycles, doors, pods, and custom panels with limited space. It offers full-range clarity without sacrificing volume, suitable for both professional and enthusiast audio setups.
Construction and Appearance. Featuring a water-resistant paper cone with treated cloth surround, this 2-way coaxial speaker incorporates ferrite and neodymium magnets for efficient magnetic performance. Its basket is made of steel with a glossy black finish, providing durability and a sleek look. The built-in bullet tweeter with an aluminum alloy diaphragm ensures crisp high-frequency response while the Kapton voice coil former and CCAW winding materials enhance heat resistance and durability.
Installation. Installation is straightforward and well-suited for applications needing ultra-shallow mounting with a depth of only 2.15 inches. It generally requires no complex modifications or extensive drilling, making it accessible for professional installers and DIY enthusiasts alike.
Warranty. This product comes with a 2-year warranty, ensuring long-term reliability and support.
Application. This speaker fits universally and may require some adaptation depending on the installation environment, especially in custom or limited-space setups.
DS18 PRO-ZT6SL
CA Residents:
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Installation & What's in the Box
Installation Info
What's in the Box
- (1) Loudspeaker
