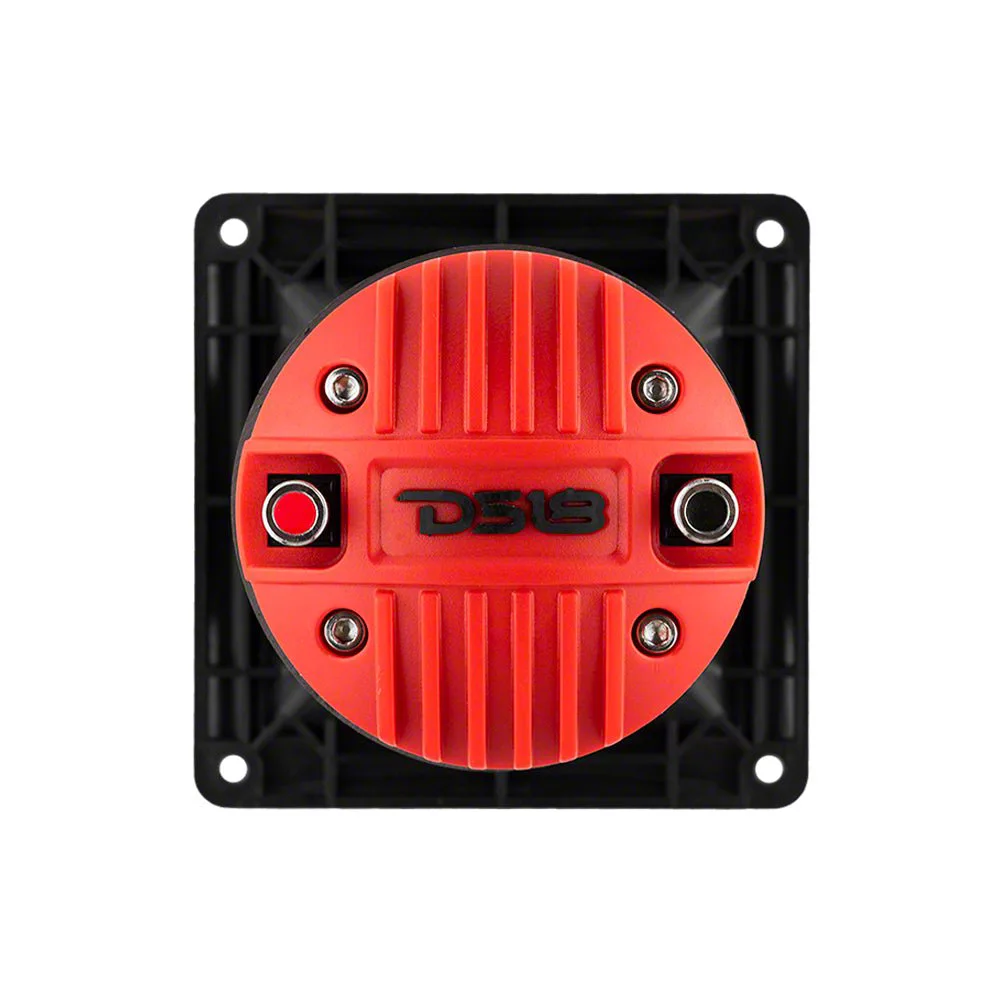

DS18 1-Inch Driver Horn Kit; 120 Watts; Black (Universal; Some Adaptation May Be Required)

Item U60570-AT
Our Price

$33.95

Military, Medical & First Responders $1.70 Available in AT Cash Rewards.
Confirm Eligibility
Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program

      Product Information

      Features, Description, Q&A

      Features

      • Compression Driver With Horn
      • 1 X PRO-DR1P
      • 1 X PRO-H44/BK
      • RMS Power 120 Watts, 240 Watts Peak
      • Impedance 8 Ohm, 107.3 dB Sensitivity
      • Ferrite Magnet
      • Nominal Impedance 8 Ohm
      • AES Power Handling 60W
      • Program Power Handling 120W
      • Peak Power Handling 240W
      • Sensitivity 107.3 dB 1w/1m With Horn
      • Frequency Response 800Hz - 20kHz
      • Recommended Hi Pass Crossover 1kHz
      • Voice Coil Diameter 1 Inch (25.4mm)
      • Voice Coil Former Material Kapton
      • Winding Material CCA
      • Diaphragm Material Phenolic
      • Magnet Material Ferrite
      • Magnet Weight 0.38 Oz (11g)
      • Body Material Aluminum and ABS
      • Nominal Diameter 4.5 Inch (115mm)
      • Throat Diameter 1 Inch (25.4mm)
      • Sound Coverage 45 x 45 degrees
      • Horn Body Material ABS PC Injected
      • Horn Color Finish Black
      • Overall Diameter 4.52 Inch (115mm)
      • Overall Depth 4.88 Inch (124mm)
      • Mounting Depth 4.5 Inch (116mm)
      • Mounting Hole Diameter 3.26 x 3.26 Inch (83 x 83mm)
      • Bolt Pattern Horn 4 x 5.5mm (100.5mm)
      • Gross Single Unit Weight 2 lbs
      • Single Unit Box Dimensions 4.75 x 4.75 x 5.75 Inch
      • Quantity Of Units In Master Carton 12
      • Gross Master Carton Weight 25.5 lbs
      • Master Carton Dimensions 15 x 10 x 12 Inch
      • Fits Universal; Some Adaptation May Be Required

      Description

      High-power compression driver. The DS18 1-inch driver horn kit with 120 watts RMS and 240 watts peak power delivers clear and dynamic high-frequency sound performance for car audio systems that require precision and volume.

      Durable construction and sleek appearance. This driver includes an aluminum and ABS body with a black ABS/PC injected horn housing, a 1-inch phenolic diaphragm, and a ferrite magnet for consistent efficiency and longevity.

      Easy installation. Designed with a compact mounting depth and standard bolt pattern, installation is straightforward with minimal modification needed in most applications.

      Warranty. Supported by a 2-year warranty for reliable customer confidence.

      Application. Fits universal applications; some adaptation may be required depending on the specific vehicle or audio system setup.

      DS18 PRO-DR1PK44
