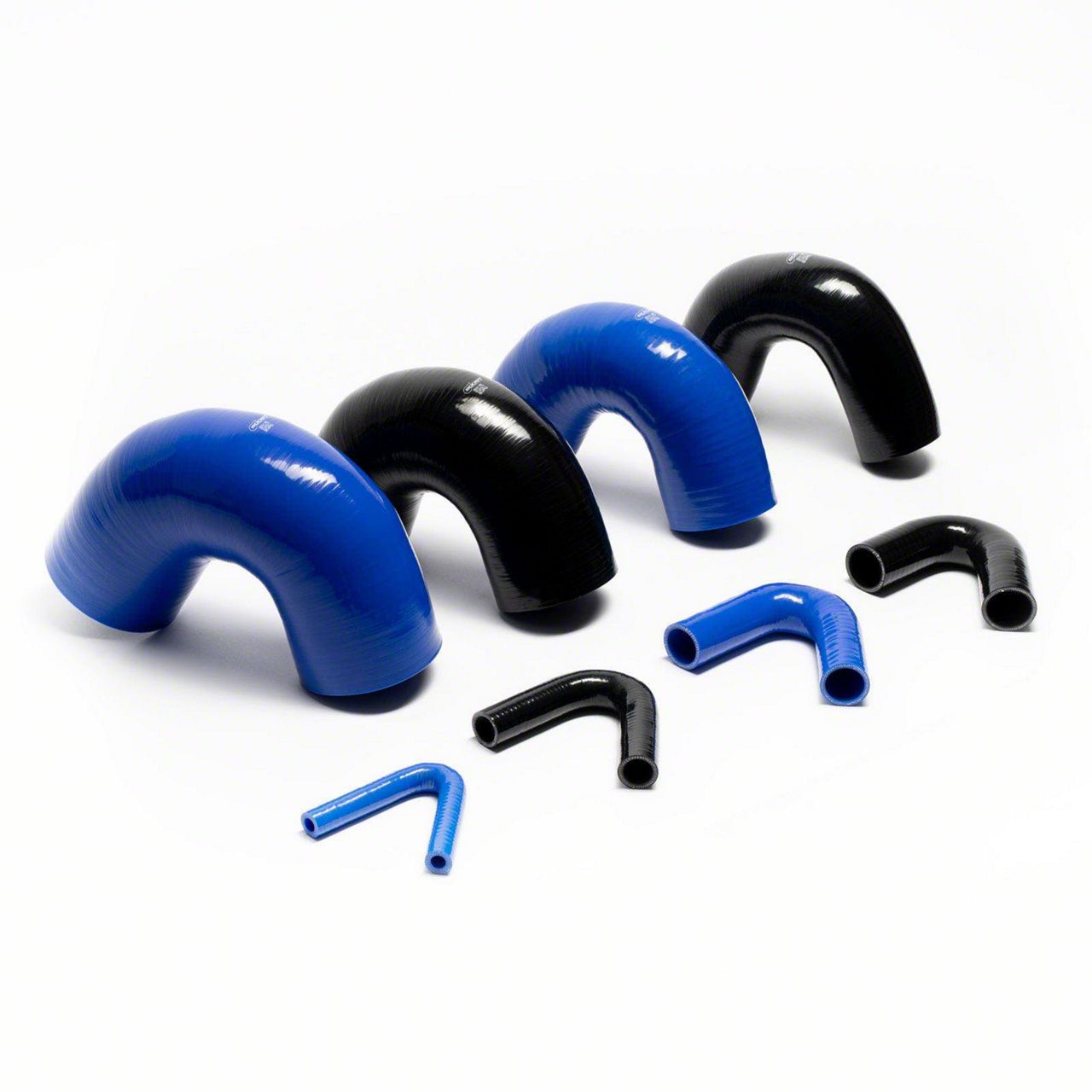

BOOST Products Silicone 135-Degree Elbow Coupler; Black

Item U70227-AT
Product Image
New
Our Price

$5.29 - $66.53

Military, Medical & First Responders $0.26 Available in AT Cash Rewards.
Confirm Eligibility

Select Size

0.325-Inch 3-Inch 4-Inch 0.40-Inch 0.50-Inch 0.625-Inch 0.75-Inch 0.875-Inch 1.10-Inch 1.175-Inch 1.25-Inch 1.375-Inch 1.50-Inch 1.625-Inch 1.775-Inch 1.90-Inch 1-Inch 2.175-Inch 2.25-Inch 2.36-Inch 2.50-Inch 2.55-Inch 2.75-Inch 2-Inch 3.15-Inch 3.25-Inch 3.35-Inch 3.50-Inch
Choose options to add to cart.
Add to Cart
Save for later
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    or use

    Shop Owners Save More! Sign up for our dealer program
    Join For FREE

      Product Information

      Description, Q&A

      Description

      This BOOST products Silicone Hose is reinforced with textile layers to be extreme pressure resistant and also to vacuums in your Air Charge System. These Hoses are suitable for your Intercooler system, Intake system, Water lines or similar. They can withstand up to 5 Bar and temperatures up to 220 C. They are not to be used as Fuel or Oil line!
      After many tests we deliver best quality at the best price! The BOOST products silicone hoses have achieved and many times even exceeded the quality of silicone hoses compared to ones made by well known manufacturers in quality tests. This silicone is durable and flexible, stable and colour-proof after many years. Lots of well known company's in the tuning and motorsport areas rely on silicone hoses made by BOOST products.
      The hoses have until 38mm 3 layers of fabric and 4,3mm wall thickness. From 41mm there are 4 layers and 5,3mm wall thickness. They come with a small subtle BOOST products logo which proofs the silicone hoses' quality.

      Size Chart / 135 Elbow Hose
      ID (mm) Wall (mm) Leg (mm) Min Burst (Bar) Max Working (Bar) Radius (mm) Textile Layer
      8 4 100 32,90 10,97 35 3
      10 4 100 32,90 10,97 35 3
      13 4 100 29,30 9,77 35 3
      16 4 100 25,90 8,63 35 3
      19 4 100 22,40 7,47 35 3
      22 4 100 22,40 7,47 35 3
      25 4 100 20,60 6,87 35 3
      28 4 100 20,60 6,87 35 3
      30 4 100 19,00 6,33 35 3
      32 4 100 19,00 6,33 35 3
      35 4 100 19,00 6,33 40 3
      38 4 100 17,20 5,73 40 3
      41 5 100 17,20 5,73 41 4
      45 5 100 15,50 5,17 45 4
      48 5 100 13,80 4,60 48 4
      51 5 100 13,80 4,60 51 4
      54 5 120 12,10 4,03 54 4
      57 5 120 12,10 4,03 57 4
      60 5 120 12,10 4,03 60 4
      63 5 120 10,30 3,43 63 4
      65 5 120 10,30 3,43 65 4
      70 5 120 8,60 2,87 70 4
      76 5 120 6,00 2,00 76 4
      80 5 120 5,20 1,73 80 4
      83 5 120 5,20 1,73 83 4
      85 5 120 5,20 1,73 85 4
      89 5 120 5,20 1,73 89 4
      102 5 120 3,40 1,13 102 4


      What you should consider with Silicone

      - The diameter refers to the Inner diameter
      - When choosing the clamp take the Wall Thickness x2 for the right Size
      - Silicone Hoses are 1-3mm elastic
      - If you can't find the right size, choose the smaller one which is available

      BOOST Products 3255000080

      3255000760

      3255001020

      3255000100

      3255000130

      3255000160

      3255000190

      3255000220

      3255000280

      3255000300

      3255000320

      3255000350

      3255000380

      3255000410

      3255000450

      3255000480

      3255000250

      3255000550

      3255000570

      3255000600

      3255000630

      3255000650

      3255000700

      3255000510

      3255000800

      3255000830

      3255000850

      3255000890
