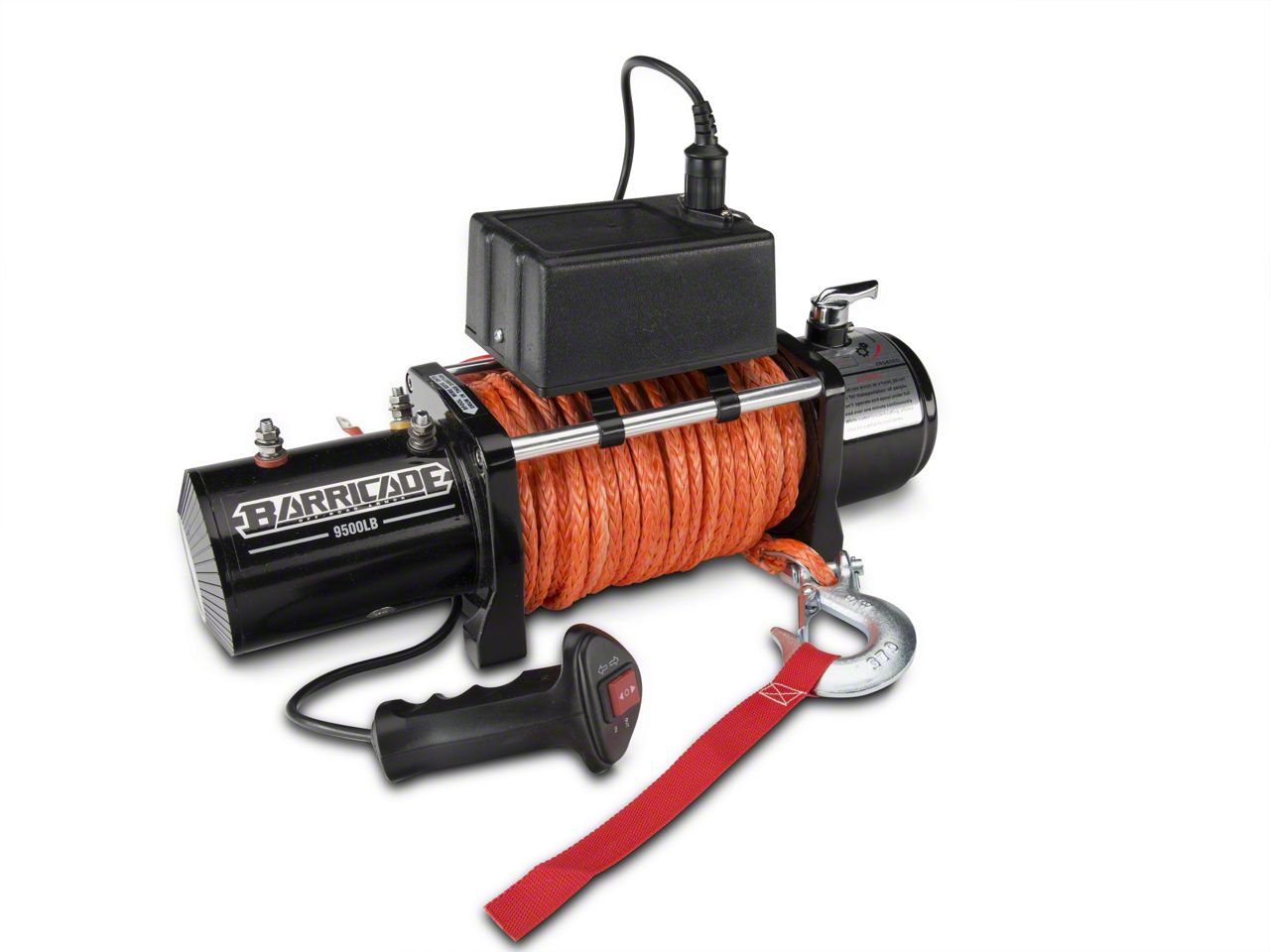

Barricade 9,500 lb. Winch w/ Synthetic Rope

Market Price $524.99 You Save 5% ($25.00)
Our Price

$499.99

FREE Shipping

  • Item R101478
  • MPN# J100789

In Stock Ships same business day.
Ship to: ASHBURN - 20146
Sorry, please enter a valid US or CA postal code
We're sorry, zip can't be updated at this time.
Choose options to add to cart.
    Create a list
    Add to New List

    Saved - View your saved items

    We're sorry. We couldn't save this product at this time.

    Features & Details

    • 9,500 lb. Single-Line Pulling Rating
    • 5.5 HP 12-Volt Series Wound Electric Motor
    • 3 Stage Planetary Gear with 195.4:1 Gear Ratio
    • 94ft Bright Orange Synthetic Rope Included
    • Wired Remote Switch with 12 Foot Lead
    • Durable Black Powder Coat Finish
    • Hook, Hawse Fairlead and Cover are Included
    • Overall Dimensions: 21.1" x 6.3" x 8.6"
    • Mounting Bolt Pattern: 254mm x 114.3mm
    • Weight: 44 lbs.
    • Limited Lifetime Manufactures Warranty
    • Fits All 2002-2019 Dodge RAM Models
    Be Prepared. Be prepared for what ever the trail or work-site might throw at you by installing a Barricade Off-Road 9500 lb Heavy Duty Winch on your Dodge RAM. This Barricade Winch will provide you with a reliable recovery system to help you to get out of the messiest situations.

    Heavy Duty 9500 LB Winch. This Barricade Off-Road Winch is driven by a powerful 5.5 HP series-wound 12-volt electric motor. Featuring a rugged 3-stage planetary gear box with a 195.4:1 gear ratio, this Barricade Winch provides 9500 lbs of pulling power. Matched with a sliding ring gear clutch and a two-way automatic, in-the-drum braking system, you know you can always rely on this winch to hold your rig.

    Additional Features. This Barricade Off-Road 9500 lb Winch features a 4-way aluminum hawse fairlead that helps reduce wear and tear on the rope while keeping it from binding. When not in use the included cover will protect the 94 feet of bright orange synthetic rope from the elements. This Barricade Winch also includes a wired remote control with a 12 foot lead allowing you to safely stand clear when in operation.

    Simple, Bolt-on Installation. Barricade engineered their winches to be a direct bolt-on upgrade that can be installed in under an hour using just basic hand tools. With overall dimensions of 21.1" × 6.3" × 8.6" and a mounting bolt pattern of 254mm X 114.3mm, there should be no drilling required for most applications. All necessary mounting hardware is included making this an easy straight forward installation.

    Lifetime Limited Warranty. To ensure the highest quality, Barricade backs their winches with a Lifetime Limited Warranty. Barricade warrants that, with respect to the mechanical and non-electrical components, the winch will be free of defects in material and workmanship for the life of the product; with respect to the electrical components of the winch (e.g.: motor, solenoid, control), it shall be free of defects in material and workmanship for one (1) year from the date of purchase. Subject to the terms and conditions, please see manufacturer's full warranty for details.

    Application. This Barricade Off-Road 9500lb Winch is designed for use on all 2002-2019 Dodge RAM models. A battery with a minimum of 650cca (cold cranking amps) is required for operation.

    Line Pull Speeds
    • 0 lbs. - 35.4 ft./min
    • 2000 lbs. - 14.8 ft./min
    • 4000 lbs. - 11.2 ft./min
    • 6000 lbs. - 9.5 ft./min
    • 8000 lbs. - 7.87 ft./min
    • 9500 lbs. - 6.43 ft./min


    Technical Note. To prevent damage to the synthetic rope from exposure to the sun and weather, this winch requires a cover when not in use. Barricade provides a winch cover for your convenience.

    Fitment: 2002 2003 2004 2005 2006 2007 2008 2009 2010 2011 2012 2013 2014 2015 2016 2017 2018 2019 Details

    What's in the Box
    • 9500lb Winch
    • 94ft Orange Synthetic Rope
    • Hawse Fairlead
    • Remote Control Lead
    • Solenoid
    • Wiring Harness
    • Rope Hook
    • Red Line Flag
    • Hardware
    • Winch Cover
    Installation Info
    Tech Specs
    Manufacturer Barricade Off-Road Line Capacity 9500lb
    Motor Specs 5.5 hp, 12-volt series wound Line Type 94ft Synthetic
    Gear System 195.4:1, Planetary Warranty Lifetime Limited
    Will it fit my Ram?
    • 3.0L V6 - 14, 15, 16, 17, 18
    • 3.6L V6 - 13, 14, 15, 16, 17, 18, 19
    • 3.7L V6 - 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12
    • 4.7L V8 - 02, 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13
    • 5.7L V8 - 03, 04, 05, 06, 07, 08, 09, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19
    • 5.9L V8 - 02, 03
    • 8.3L V10 - 04, 05, 06
