Find LED Light Bars for your Ram 2500

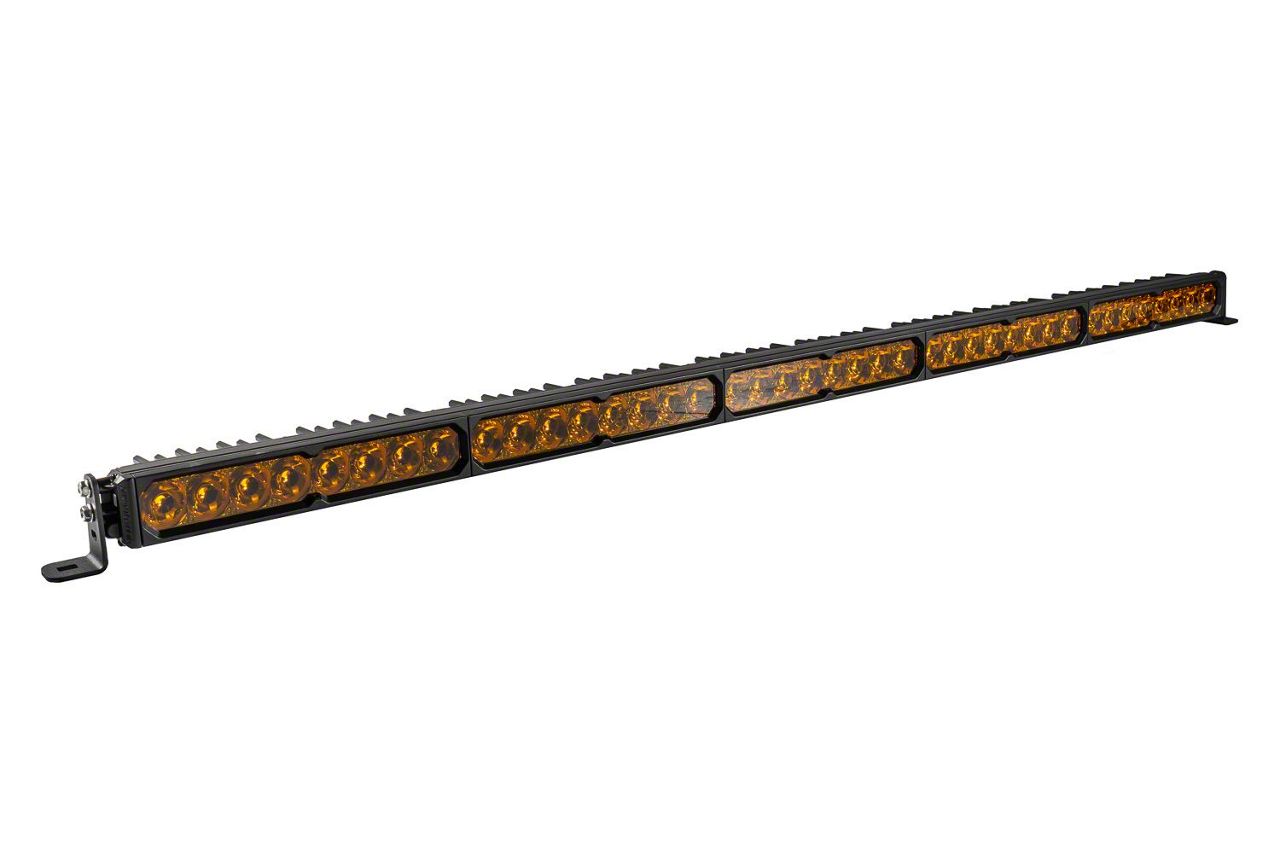

Diode Dynamics SS50 Pro Single Row LED Light Bar with Amber Backlight; Yellow Spot (Universal; Some Adaptation May Be Required)
Item HR74344
Our Price
$1,299.95
Military, Medical & First Responders
$65.00 Available in AT Cash Rewards.
Confirm Eligibility
Confirm Eligibility
Choose options to add to cart.
Saved - View your saved items
We're sorry. We couldn't save this product at this time.
or use
Shop Owners Save More!
Sign up for our dealer program
Product Information
Features, Description, Q&A
Features & Specs
- Patented TIR Optics For Maximum Efficiency And Output
- Upgraded Beam Patterns Engineered For Real-World Performance
- True Amber Backlight Provides Unique Accent Lighting
- Available In Sport And Pro Power Levels
- Durable Aluminum Housing With ASTM-Standard Powdercoat Finish
- Built For Extreme Conditions With IP69K Waterproof Rating
- Limited Lifetime Warranty
- Made In USA With Globally Sourced Materials
- Peak Beam Intensity From 315,000 Cd To 835,000 Cd Depending On Optic And Power Level
- Illuminance Ranges 95 Lux To 8,350 Lux At 10m
- Raw Output Between 18,440 Lm And 62,720 Lm
- Color Temperature Is 3000K Yellow
- Beam Angles Include Combo/Driving, SAE Driving, Flood, And Spot Patterns
- Power Consumption From 212 Watts (Sport) To 295 Watts (Pro)
- Operating Voltage Between 9-30V
- Current Draw From 16.56 Amps To 23.05 Amps At 12.8V
- Polarity Specific Electrical Design
- Operating Temperature Range From -40C To 85C (-40F To 185F)
- High-Quality Osram Ostar Projection Compact And Lumileds Automotive Grade LED Emitters
- Deutsch DT-P Input Connector
- Materials Include Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink, And Stainless Steel Brackets
- Passive Cooling Via Optimized Heatsink Design
- IP69K Rated For High-Pressure Waterproofing
- Physical Dimensions Approximately 2.01x51.63x2.46 Inches
- Includes One LED Light Bar, One Wire Pigtail, Universal Bracket Set
- Fits Universal; Some Adaptation May Be Required
| Brand | Diode Dynamics |
| Light Bar Width | 50 Inch and Up |
Description
High-Performance LED Light Bar. The Diode Dynamics SS50 Pro Single Row LED Light Bar with Amber Backlight; Yellow Spot is engineered to provide intense, focused illumination for enhanced visibility in demanding environments. Designed for off-road, work, and recreational applications, it combines superior optics and optical output with durable construction to improve safety and performance in inclement weather or low-light conditions.
Construction and Appearance. This LED light bar features a robust aluminum housing with an ASTM-standard powdercoat finish for long-lasting protection against corrosion and wear. It utilizes high-quality Osram and Lumileds LED emitters paired with patented Total Internal Reflection optics for precise light control. The polycarbonate lens and stainless steel brackets contribute to its ruggedness, while the true amber backlight produces a distinct accent glow that enhances forward-facing visibility.
Installation. Installation typically requires 30-60 minutes using basic hand tools, with no complex wiring or drilling necessary in most cases. The universal bracket set provides flexible mounting options adaptable to a wide range of vehicles and setups.
Warranty. This product is backed by a limited lifetime warranty ensuring long-term reliability and customer satisfaction.
Application. The SS50 Pro LED Light Bar is designed for universal fitment; some adaptation may be required depending on specific vehicle configurations. Its modular design supports versatile mounting and beam pattern customization for various lighting needs.
Diode Dynamics DD8433
