Product Features | Quick Facts | |

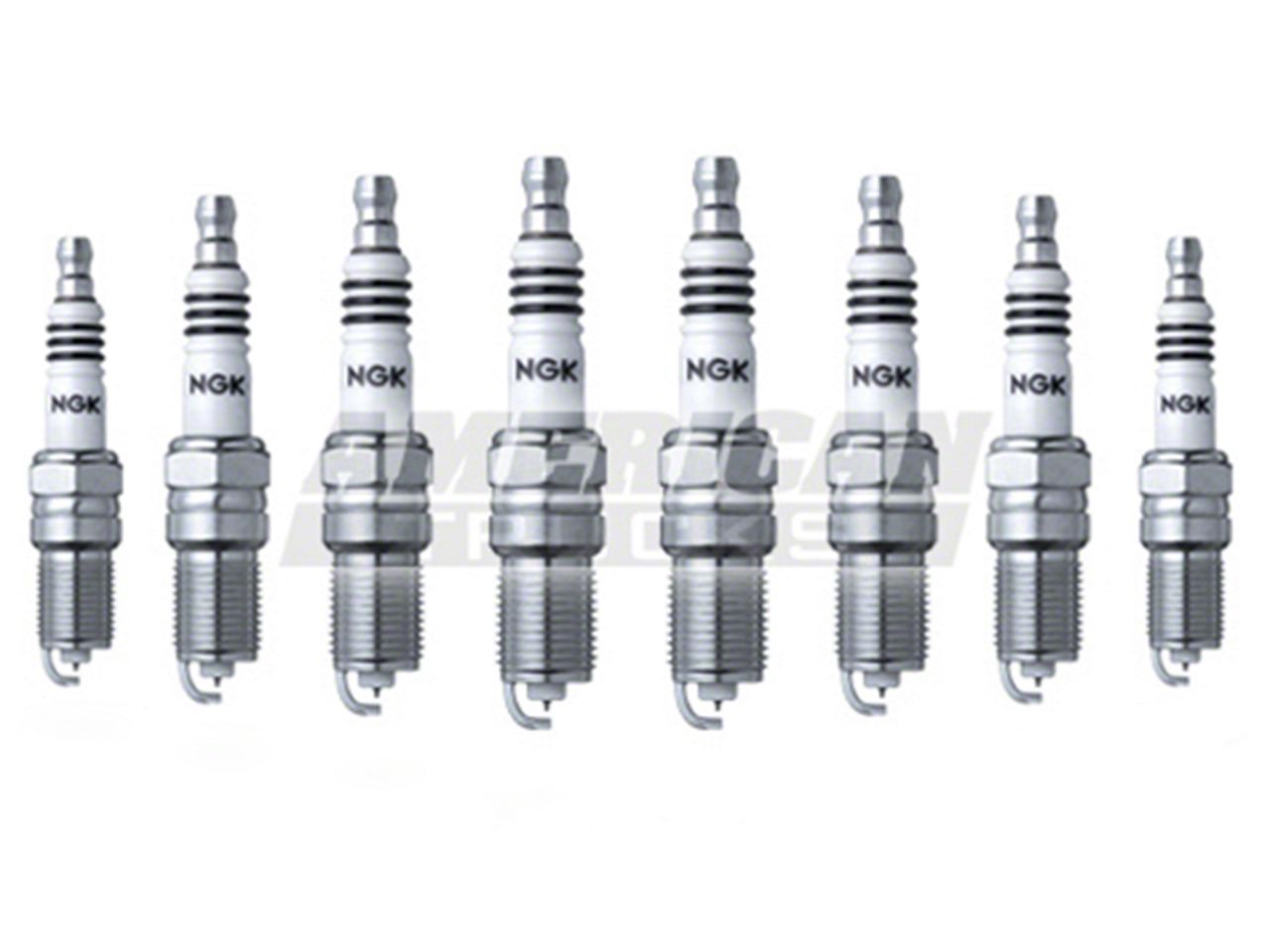

| Get the reliability you need and the performance you demand from your truck with NGK's ultimate precision-crafted Iridium IX plugs. |
The Next Generation of Plug. Get the pulling power you need and the tire-smoking performance you want from the world's most advanced spark plug: the Iridium IX series from NGK. Its combination of rare metal construction and innovative design creates a plug that exceeds the competition in both durability and power. With a laser-crafted electrode that is neither too thick or too thin, NGK's Iridium IX series sets the standard that all other plugs will be judged by.
Out-Performs Other Iridium Plugs. Other Iridium plugs use thicker wires than NGK's Iridium IX series, meaning the IX series doesn't need as much voltage to create a spark. Less voltage means less strain on your ignition system and more power - and their fine wire design also reduces fouling and improves the plugs' ability to spark in high compression, high revving engines. It also starts easier even in the coldest temperatures - meaning this plug is the best choice for everything from your everyday work truck to your track-only, modified sports truck.
Rare Metal Construction. 6 times harder than platinum, and both more rare and stronger than any other metal - iridium is the best choice when it comes to your plugs. Iridium's unique properties are what allow NGK to make this plug so accurate. And with its incredibly high melting point, iridium is the best choice for any high performance engine.
OEM Quality. NGK is one of the premier manufacturers of spark plugs worldwide. All NGK plugs are made with a solid copper core for greater spark and heat transfer. Plus they use a triple gasket sealing process to eliminate the potential for combustion gas to leak back through the shell - superior to other manufacturer's one or two shell design. And their double dipped zinc chromate shell is designed for maximum corrosion and rust resistance.
| Plug Number | Series | Truck | Year | Engine | VIN | Notes | Gap |
|---|---|---|---|---|---|---|---|
| 7164 | Iridium IX | F150 (Non-Supercharged Trims) | 2007 | 4.2 V6 | 2 | .054 | |
| 4.6 V8 | W | .054 | |||||
| 2005 | 4.6 V8 | W | SOHC | .054 | |||
| 2004 | 4.6 V8 | 6 | SOHC | .052 | |||
| 4.6 V8 | W | SOHC | .054 | ||||
| 2003 | 4.2 V6 | 2 | Split Port | .054 | |||
| 4.6 V8 | 6 | .054 | |||||
| 4.6 V8 | W | SOHC | .054 | ||||
| 5.4 V8 | L | SOHC | .054 | ||||
| 5.4 V8 | Z | Flex Fuel | .054 | ||||
| 2002 | 4.6 V8 | 6 | .054 | ||||
| 4.6 V8 | W | SOHC | .054 | ||||
| 5.4 V8 | L | SOHC | .054 | ||||
| 5.4 V8 | Z | Flex Fuel | .054 | ||||
| 2001 | 4.6 V8 | W | SOHC | .054 | |||
| 5.4 V8 | L | SOHC | .054 | ||||
| 5.4 V8 | Z | Flex Fuel | .054 | ||||
| 2000 | 4.6 V8 | W | SOHC | .054 | |||
| 5.4 V8 | L | SOHC | .054 | ||||
| 5.4 V8 | Z | Flex Fuel | .054 | ||||
| 1999 | 4.6 V8 | 6 | .054 | ||||
| 4.6 V8 | W | SOHC | .054 | ||||
| 5.4 V8 | L | SOHC | .054 | ||||
| 5.4 V8 | Z | Flex Fuel | .054 | ||||
| 1998 | 4.6 V8 | 6 | .054 | ||||
| 4.6 V8 | W | SOHC | .054 | ||||
| 5.4 V8 | L | SOHC | .054 | ||||
| 5.4 V8 | Z | Flex Fuel | .054 | ||||
| 1997 | 4.2 V6 | 2 | Split Port | .054 | |||
| 4.6 V8 | 6 | .054 | |||||
| 4.6 V8 | W | SOHC | .054 | ||||
| 5.4 V8 | L | SOHC | .054 |
| Plug Number | Series | Truck | Year | Engine | VIN | Notes | Gap |
|---|---|---|---|---|---|---|---|
| 7164 | Iridium IX | F250 & F350 (Pickup+Superduty) | 2005 | 4.6 V8 | W | SOHC | .054 |
| 2004 | 4.6 V8 | 6 | .052 | ||||
| 4.6 V8 | W | SOHC | .052 | ||||
| 2003 | 5.4 V8 | L | SOHC | .054 | |||
| 6.8 V10 | S | SOHC | .054 | ||||
| 2002 | 5.4 V8 | L | SOHC | .054 | |||
| 6.8 V10 | S | SOHC | .060 | ||||
| 2001 | 5.4 V8 | L | SOHC | .054 | |||
| 6.8 V10 | S | SOHC | .054 | ||||
| 2000 | 5.4 V8 | L | SOHC | .054 | |||
| 6.8 V10 | S | SOHC | .054 | ||||
| 1999 | 4.6 V8 | 6 | .054 | ||||
| 4.6 V8 | W | SOHC | .054 | ||||
| 5.4 V8 | L | SOHC | .054 | ||||
| 5.4 V8 | Z | Flex Fuel | .054 | ||||
| 6.8 V10 | S | SOHC | .054 | ||||
| 1998 | 4.6 V8 | 6 | .054 | ||||
| 4.6 V8 | W | SOHC | .054 | ||||
| 5.4 V8 | L | SOHC | .054 | ||||
| 5.4 V8 | Z | Flex Fuel | .054 | ||||
| 1997 | 4.6 V8 | 6 | .054 | ||||
| 4.6 V8 | W | SOHC | .054 | ||||
| 5.4 V8 | L | SOHC | .054 |
